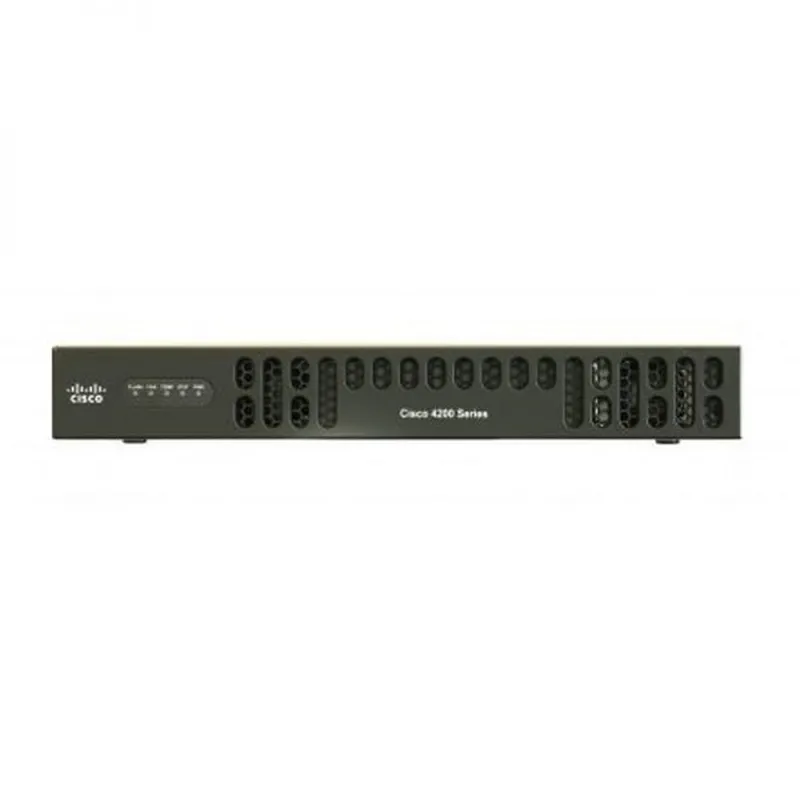

C1-CISCO4221/K9 Overview
C1-CISCO4221/K9 is the ISR4221/K9 with Cisco ONE Software. Cisco ONE
Software suites provide a cost-effective and flexible way for you to acquire
software for your data center, routing, switching, and wireless needs. Cisco
4221 Integrated Services router is design to deliver advanced services to
the small enterprise branch environment. It delivers 35Mbps thoughtput
by default. With pay-as-you-grow performance, you can increase
forwarding capacity to 75Mbps by buying licenses.
C1-CISCO4221/K9 Specification | |
Aggregate Throughput | 35 Mbps to 75 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | No |
Onboard ISC slot | No |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3ECC DRAM (Combinedcontrol/services/data planes) | 4 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 8 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 0 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
Power-supply options | External: AC Only |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90 A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 24 |
Maximum power with AC power supply (watts) | 90 |
Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Description |
Console and Auxillary Cables | Cisco Router Cable CAB-ETH-S-RJ45 | |
Network Interface Modules | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2 | ||
Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM | ||
SFPs for On-Board GE Ports | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | ||
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
