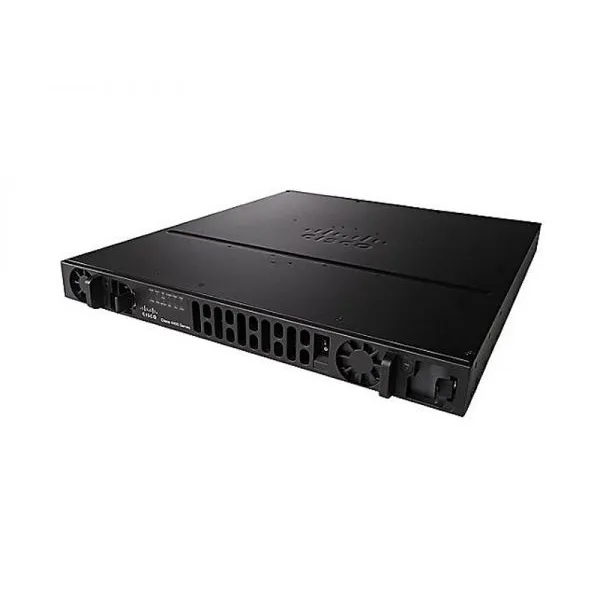

Cisco Router 4000 Series ISR4431-V/K9

ISR4431-V/K9

500Mbps-1Gbps system throughput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs.

Description

ISR4431-V/K9 Overview


ISR4431-V/K9 integrated router combines high-performance, scalability,

VOIP and smart router is made to run multiple services. This is the only

router in industry separates control data and services planes, so the

benefits are numerous. With pay-as-you-grow performance, you can

increase forwarding capacity when needed, you only pay for the

performance you need. The ISR4431-V/K9 runs multi-core,

multi-threaded advanced Voice IOS-XE operating system to enable both

WAN link security and VOIP services. Full featured WAN optimization

with that run native on the motherboard without affecting performance,

management and other capabilities. According to the scalability, ISR 4431

designed as a layer 7 router basically, the advanced network services

enable the branch to utilize the WAN intelligently is really what ISR 4400

series all about. The Cisco ISR 4431 is the ultimate application delivery

platform to mid-size or even large branch offices. This is literally routing

redefined.


ISR4431-V/K9   Specification

Product Number

ISR4431-AXV/K9

Product Description

Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC.

UC lic. CUBE-25

Aggregate Throughput

500Mbps to 1Gbps

Total onboard WAN or

 LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced

service-module

slots

0

Doublewide

service-module

slots

0

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory

double-data-rate 3 (DDR3)

error-correction-code

(ECC) DRAM

(Combined control/

services/data planes)

NA

Maximum memory

DDR3 ECC DRAM

(Combined   control/

services/data planes)

NA

Default memory

DDR3 ECC DRAM

(data plane)

2 GB

Maximum memory

DDR3 ECC DRAM

(data plane)

2 GB

Default memory

DDR3 ECC DRAM

(control/services plane)

4 GB

Maximum memory

DDR3 ECC DRAM

(control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots

(type A)

2

USB console port -type

B mini (up to 115.2 kbps)

1

Serial console

port - RJ45

(up to 115.2 kbps)

1

Serial auxiliary

port - RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

Internal: AC, DC, and PoE

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range,

AC power supply

(maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power

(no modules) (watts)

65

Maximum power with

AC power supply (watts)

250 (no PoE)

Maximum power with

PoE power supply

(platform only)   (watts)

500 with PoE redundant

Maximum endpoint PoE

power available from

PoE power   supply

(watts)

250 W with optional redundancy



The Modules, Cards, Licenses & Accessories

Table 3 shows some recommended modules, cards, licenses and several cables.



Items

Models

Descriptions

Console

and

Auxillary

Cables

CAB-AUX-RJ45

Cisco   CAB-AUX-RJ45 Auxiliary Cable 8ft

with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco   Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco   CAB-CONSOLE-RJ45 Console

Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco   CAB-CONSOLE-USB Console

Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-44-APP-K9=

Cisco ISR   4431/4451 AppX license

L-SL-44-APP-K9= with WAAS/vWAAS

1300/2500 conns RTU

Network

Interface

Modules

NIM-1MFT-T1/E1

Cisco   Fourth-Generation Multiflex

Trunk Voice and WAN network

interface module

NIM-2CE1T1-PRI

Cisco   Multiflex Trunk Voice and WAN

network interface module

NIM-4E/M

Analog   voice network interface card

(ear and mouth)

NIM-2FXS

Cisco   Analog voice network interface

card NIM-2FXS

NIM-2FXS/4FXO

Cisco   Analog voice network interface

card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco   Fourth-Generation Multiflex Trunk

Voice and WAN network interface module

SFPs for

On-Board

GE Ports

GLC-SX-MMD

Cisco   GLC-SX-MMD 1000BASE-SX SFP

transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco   GLC-LH-SMD 1000BASE-LX/LH SFP

transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco   GLC-ZX-SMD 1000BASE-ZX SFP

transceiver module, SMF, 1550nm, DOM
