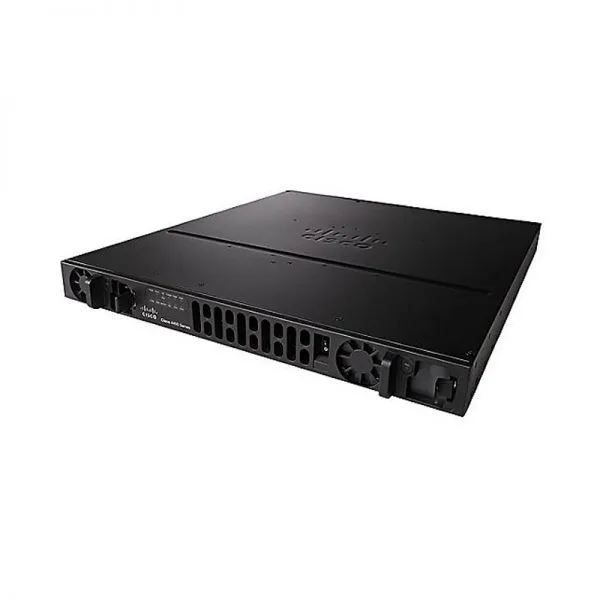

ISR4431-DNA

Product Code

ISR4431-DNA

Description

Cisco ISR   4431

(4GE,3NIM,8G FLASH,4G DRAM,IPB) with DNA sub

Aggregate Throughput

(Default)

500 Mbps

Aggregate Throughput

(Performance License)

1 Gbps

Aggregate CEF Only T

hroughput (Boost License)

Over   4 Gbps

Total onboard WAN or

LAN 10/100/1000 ports

4

Total onboard WAN or

LAN 10Gbps ports

N/A

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory

double-data-rate 3 (DDR3)

error-correction-code

(ECC) DRAM

(Combined control/

services/data planes)

N/A

Maximum memory

DDR3 ECC DRAM

(Combined control/

services/data planes)

N/A

Default memory DDR3 ECC

DRAM (data plane)

2 GB

Maximum memory DDR3

ECC DRAM (data plane)

2 GB

Default memory DDR3 ECC

DRAM   (control/services plane)

4 GB

Maximum memory

DDR3 ECC DRAM

 (control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots

(type A)

1

USB console port -type

B mini (up to 115.2   kbps)

2

Serial console port - RJ45

(up to 115.2   kbps)

1

Serial auxiliary port - RJ45

(up to 115.2   kbps)

1

Power-supply options

Internal:   AC, DC, and PoE

Redundant power supply

Internal:   AC, DC, and PoE

Power   Specifications

AC input voltage

100 to   240 VAC autoranging

DC Input Voltage

Input Voltage

Input Current

48–60   V

12 A Max

AC input frequency

47 to 63   Hz

AC input current range,

 AC power supply

(maximum)

3 to 1.3   A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules

(watts)

65

Maximum power with

AC power supply (watts)

250 (no   PoE)

Maximum power with

DC power supply (watts)

437 (no   PoE)

Maximum power with

PoE power supply

(platform only) (watts)

500 with   PoE redundant

1000 with PoE boost no redundancy

Maximum endpoint PoE power

available from PoE power supply

(watts)

250 W   with optional redundancy

Maximum endpoint PoE power

capacity with   PoE boost (watts)

500 W no   redundancy

Dimensions(H x W x D)

1.73 x   17.25 x 19.97 in(43.9 x 438.15 x 507.2 mm)

Rack height

1 Rack   Units (1RU)

Rack-mount 19in. (48.3 cm) EIA

Included

Included

Optional

Wall-mount

Yes

Airflow

I/O side   to bezel side

MTBF (Hours)

512970

Environmental   Specifications

Temperature

32º to 104ºF(0   to 40ºC)

Altitude(China)

0–6,560   ft.(0–2,000 m)

Altitude(Rest of the world)

0–10,000   ft.(0–3,050 m)

Short Term Temperature upto

 6560ft per NEBS GR-63-CORE

N/A

Relative humidity

5% to 85%

Short-term humidity

5% to 90%   not to exceed 0.024 kg water/kg of dry air

Acoustics:Sound pressure

(Typical/maximum)

54.3/79.1   dBA

57.2/80.8 dBA

57.2/80.8   dBA

Nonoperating   Conditions

Temperature

-40 to 158ºF(-40   to 70ºC)

Relative humidity

5% to 95%

Altitude

15,584 ft   (4750m)

Regulatory   and Compliance

Safety

UL   60950-1

CAN/CSA

C22.2 No.

60950-1

EN   60950-1

AS/NZS

60950-1

IEC   60950-1

EMC

47 CFR,   Part 15

ICES-003

Class A

EN55032

Class A

CISPR32

Class A

AS/NZS   CISPR 32

Class A

VCCI V-3

CNS 13438

EN   300-386

EN 61000   (Immunity)

EN 55024,   CISPR 24

KN22,   KN24

Cisco IOS   XE Software

Protocols

IPv4, IPv6, static routes, Routing Information Protocol

Versions 1 and 2 (RIP and RIPv2), Open Shortest

Path First (OSPF), Enhanced   IGRP (EIGRP),

Border Gateway Protocol (BGP), BGP Router Reflector,

Intermediate System-to-Intermediate System (IS-IS),

Multicast Internet Group   Management Protocol

Version 3 (IGMPv3), Protocol Independent Multicast

sparse mode (PIM SM), PIM Source Specific Multicast

(SSM), RSVP, CDP, ERSPAN, IPSLA,   Call Home,

EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV[6],

HSRP,   RADIUS, AAA, AVC, Distance Vector Multicast

Routing Protocol (DVMRP),   IPv4-to-IPv6 Multicast,

MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2

Tunneling Protocol Version 3 (L2TPv3), Bidirectional

Forwarding Detection   (BFD), IEEE802.1ag,

and IEEE802.3ah

Encapsulations

Generic routing encapsulation (GRE), Ethernet, 802.1q

VLAN, Point-to-Point Protocol (PPP), Multilink

Point-to-Point Protocol   (MLPPP), Frame Relay,

Multilink Frame Relay (MLFR) (FR.15 and FR.16),

High-Level Data Link Control (HDLC), Serial (RS-232,

RS-449, X.21, V.35, and   EIA-530),

and PPP over Ethernet (PPPoE)

Traffic   management

QoS, Class-Based Weighted Fair Queuing (CBWFQ),

Weighted Random Early Detection (WRED),

Hierarchical QoS, Policy-Based   Routing (PBR),

Performance Routing, and NBAR.

Cryptographic   Algorithms

Encryption: DES, 3DES, AES-128 or AES-256

(in CBC and   GCM modes); Authentication:

RSA (748/1024/2048 bit), ECDSA (256/384 bit);

Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512

Telecom

TIA-968-B CS-03 ANSI T1.101 ITU-T G.823,G.824

IEEE   802.3 RTTE Directive Homologation

requirement s vary by country and   interface type.

Ethernet Switch

NIM-ES2-4

Cisco   4-Port Gigabit Ethernet Switch NIM

NIM-ES2-8

Cisco   8-Port Gigabit Ethernet Switch NIM

NIM-ES2-8-P

Cisco   8-Port Gigabit Ethernet Switch NIM

with PoE Support

Ethernet

Routed-Port

NIM-1GE-CU-SFP

1-port   Gigabit Ethernet NIM, dual mode

SFP or RJ45

NIM-2GE-CU-SFP

2-port   Gigabit Ethernet NIM, dual mode

SFP or RJ45

Wireless WAN

 (3G, 4G, LTE)

NIM-4G-LTE-GA=

4G LTE   NIM for Global

(Europe, Australia & New Zealand)

T1, E1, and

G.703 Multiflex

 Trunk Voice and

WAN Interface

Cards

NIM-1MFT-T1/E1

1-port   multiflex trunk voice/clear-channel

data T1/E1 module

NIM-2MFT-T1/E1

2 port   Multi-flex Trunk Voice/Clear-channel

Data T1/E1 Module

NIM-4MFT-T1/E1

4 port   Multi-flex Trunk Voice/Clear-channel

Data T1/E1 Module

Packet Voice

Digital Signal

Processor

Modules 4

PVDM4-128

128-channel   voice DSP module

PVDM4-64

64-channel   voice DSP module

PVDM4-32

32-channel   voice DSP module

Voice Interface

Cards

NIM-2FXS

2-port FXS NIM

NIM-4FXS

4-port FXS NIM

NIM-2FXO

2-port FXO NIM

NIM-4FXO

4-port FXO NIM

Serial WAN

Interface

NIM-1T

1-Port   Serial  High-Speed  WAN  Interface  Card

NIM-2T

2-Port   Serial High-Speed   WAN  Interface  Card

Channelized

T1/E1 and

ISDN PRI

NIM-1CE1T1-PRI

1 port   Multi-flex Trunk Voice/Channelized Data

T1/E1 Module

NIM-2CE1T1-PRI

2 port   Multi-flex Trunk Voice/Channelized Data

T1/E1 Module

NIM-8CE1T1-PRI

8 port   Multi-flex Trunk Voice/Channelized Data

T1/E1 Module

Small

Form-Factor

Pluggable

GLC-EX-SMD

1000BASE-EX   SFP transceiver module, SMF,

1310nm, DOM

GLC-LH-SM

GE SFP,   LC connector LX/LH transceiver

GLC-LH-SMD

GE SFP,   LC connector LX/LH transceiver;

with DOM

GLC-SX-MMD

GE SFP,   LC connector SX transceiver;

with DOM

GLC-ZX-SMD

1000BASE-ZX   SFP; with DOM

Licenses

L-SL-4430-APP-K9=

AppX License for Cisco ISR 4430 Series
