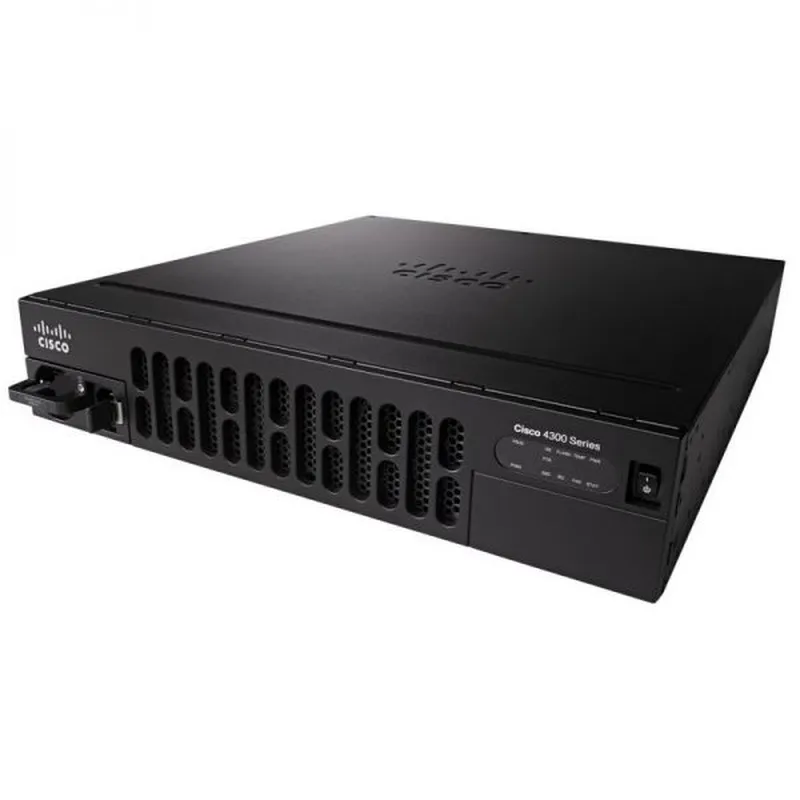

ISR4351-V/K9 Overview
Cisco ISR4351-V/K9 is ideally designed for the mid-size or even large enterprise
branch environment, deliver advanced services and unprecdent level of WAN
intelligence with VOIP features enabled.Scalability, High-performance, Network
Services, Security and smart router is made to run multiple services.Advanced
network services enable the branch to utilize the WAN intelligently is really
what ISR4351/K9 all about.With feature like , Voice, AVC, performance routing
(PfR), WAAS make this platform obviously more than a router, moreover, the
Cisco Integrated Services Router 4351 include supporting OnePk, AppNav,
making the platform easier to scale the network and application integration.
Performance is the key to enabling advanced branch services or scaling across
the enterprise. With IOS XE and dedicate control, data, and service CPUs, these
platform is unmatched in the industry.ISR 4351 delivering 200Mbps-400Mbps
performance on demand,with pay-as-you-grow performance, you can increase
forwarding capacity when needed, so the platform performance growth with
your business, you only pay for the performance you need. This greatly
simplifies the portfolio with only two platforms needed to cover 200Mpbs
through 400Mbps performance levels. The Cisco Integrated Service router
4351 includes another industry first, which support service containers, these
pluggable visual machines utilize dedicated CPU, memory and storage within
platform for tightly couple the network services without needs for additional
modules.
ISR4351-V/K9 Specification | |
Description | Cisco ISR4351-V/K9 (3GE,3NIM,2SM, 4G FLASH, 4G DRAM, Voice Bundle) |
Aggregate Throughput | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 3 |
SFP-based ports | 3 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/ services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/ services/data planes) | 16 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 16 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC, and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | 60 A peak and less than 12 Arms per half cycle |
Typical power (no modules) (watts) | 48 |
Maximum power with AC power supply (watts) | 430 |
Maximum power with PoE power supply (platform only) (watts) | 990 |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Descriptions |
Console and Auxillary Cables | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M | |
Cisco Router Cable CAB-ETH-S-RJ45 | ||
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | ||
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Licenses | L-SL-4350-APP-K9= | Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351 |
Network Interface Modules | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco Multiflex Trunk Voice and WAN network interface module | ||
Analog voice network interface card (ear and mouth) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | ||
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
