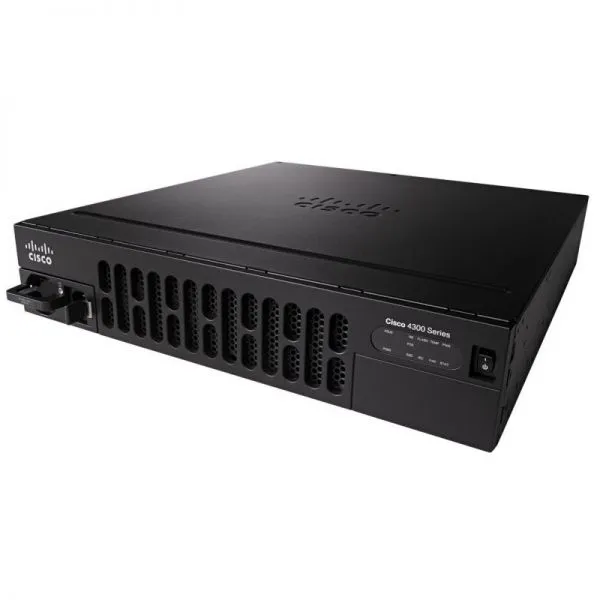

Cisco Router 4000 Series ISR4351-SEC/K9

ISR4351-SEC/K9

200Mbps-400Mbps system throughput, 3 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, VPN, WAAS, Intelligrnt WAN, OnePK, AVC.

Description

ISR4351-SEC/K9 Overview


Cisco ISR4351-SEC/K9 is the Cisco ISR4351/k9 router with Security Bundle.

Its other specifications are the same as ISR4351/k9.


ISR4351-SEC/K9   Specification

Description

Cisco ISR4351-SEC/K9

(3GE,3NIM,2SM,4G FLASH,4G DRAM,Security Bundle.

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or

LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced

service-module slots

2

Doublewide

service-module slots

1 (assumes no singlewide SM-X modules installed)

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory

double-data-rate 3 (DDR3)

error-correction-code

(ECC) DRAM

(Combined control/

services/data planes)

4 GB

Maximum memory

DDR3 ECC DRAM

(Combined   control/

services/data planes)

16 GB

Default memory

DDR3 ECC DRAM

(data plane)

NA

Maximum memory

DDR3 ECC DRAM

(data plane)

NA

Default memory

DDR3 ECC DRAM

(control/services plane)

NA

Maximum memory

DDR3 ECC DRAM

(control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots

(type A)

2

USB console

port -type B mini

(up to 115.2 kbps)

1

Serial console

port - RJ45

(up to 115.2 kbps)

1

Serial auxiliary

port - RJ45

(up to 115.2 kbps)

1

Power-supply

options

Internal: AC, DC, and PoE

Redundant power

supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range,

AC power supply

(maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 12 Arms per half cycle

Typical power

(no modules) (watts)

48

Maximum power with

AC power supply

(watts)

430

Maximum power with

PoE power supply

(platform only)

(watts)

990

Maximum endpoint PoE

power available from

PoE power   supply

(watts)

500



The Modules, Cards, Licenses & Accessories

Table 2 shows some recommended modules, cards, licenses and several cables.



Items

Models

Descriptions

Console

and

Auxillary

Cables

CAB-AUX-RJ45

Cisco   CAB-AUX-RJ45 Auxiliary Cable 8ft

with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco   Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco   CAB-CONSOLE-RJ45 Console

Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco   CAB-CONSOLE-USB Console

Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-4350-APP-K9=

Cisco   AppX license L-SL-4350-APP-K9= with

1300 conns/ISRWAAS or vWAAS for ISR4351

Network

Interface

Modules

NIM-1MFT-T1/E1

Cisco   Fourth-Generation Multiflex

Trunk Voice and WAN network

interface module

NIM-2CE1T1-PRI

Cisco   Multiflex Trunk Voice and WAN

network interface module

NIM-4E/M

Analog   voice network interface card

(ear and mouth)

NIM-2FXS

Cisco   Analog voice network interface

card NIM-2FXS

NIM-2FXS/4FXO

Cisco   Analog voice network interface

card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco   Fourth-Generation Multiflex Trunk

Voice and WAN network interface module

SFPs for

On-Board

GE Ports

GLC-SX-MMD

Cisco   GLC-SX-MMD 1000BASE-SX SFP

transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco   GLC-LH-SMD 1000BASE-LX/LH SFP

transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco   GLC-ZX-SMD 1000BASE-ZX SFP

transceiver module, SMF, 1550nm, DOM


Get More Information

Do you have any question about the Cisco ISR4351-SEC/K9 ?

Contact us now via Live Chat or andy@ryderwell.com.


send inquiry to us
