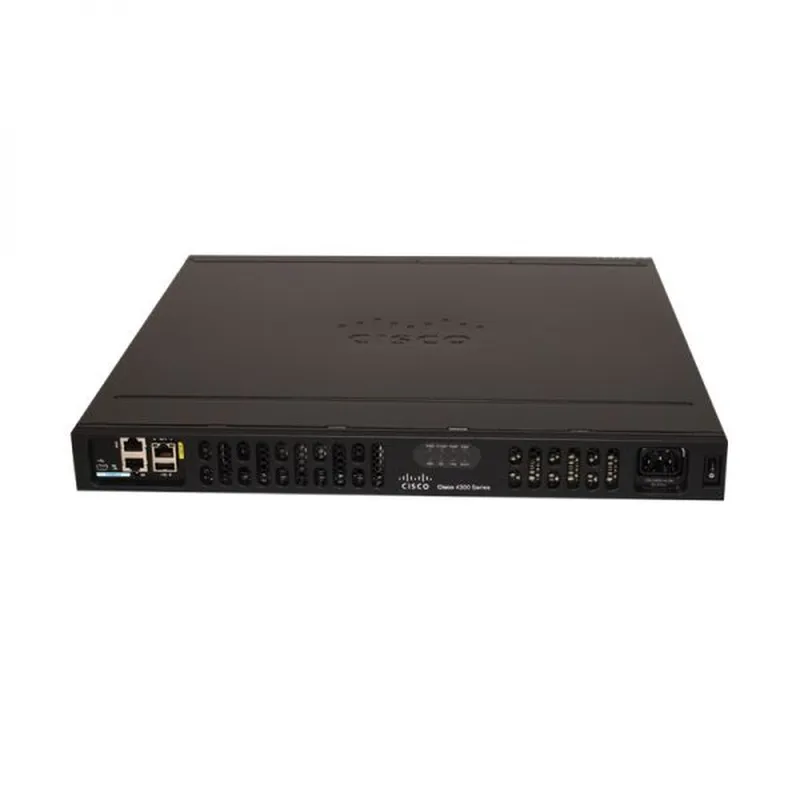

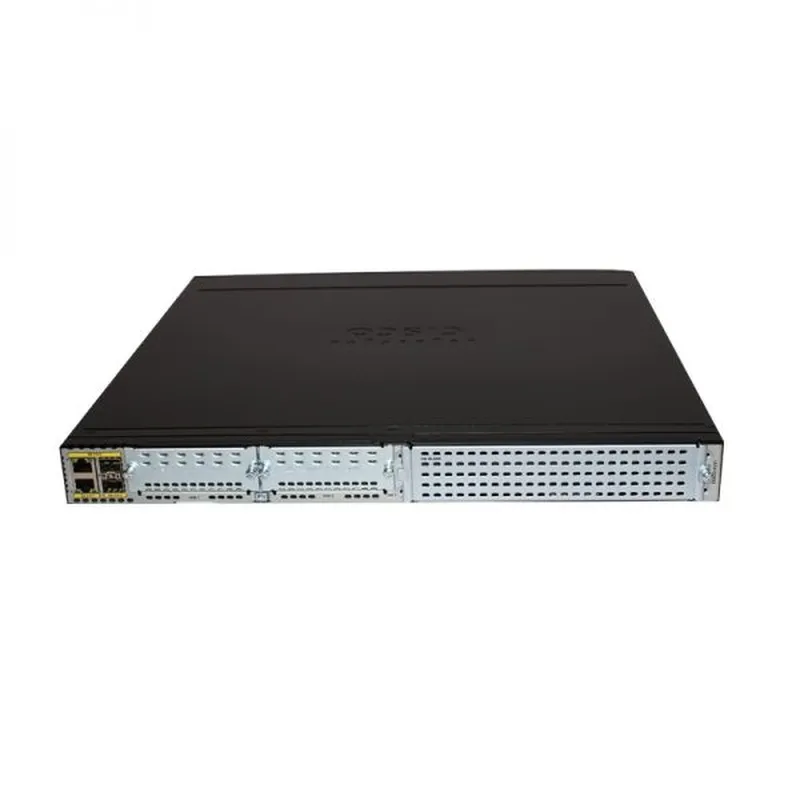

Cisco Router 4000 Series ISR4331-V/K9

Description

ISR4331-V/K9 Overview

Cisco Intergrated Service Router ISR4331-V/K9 Voice bundle is ideally designed

for the small to mid-size enterprise branch environment, delivers advanced

VOIP services and unprecdent level of WAN intelligence. Cisco ISR4331

combines 2 dual mode Gigabit Ethernet ports and PVDM4 DSP for voice and

video services, two network modules, one integrated services card slot and one

service module slots which you can add a Gigabit Ethernet switch or maybe a

Cisco UCS e-series single blade server module to run virtualized applications.

Fully support for the OnePK software development kits means mutual

awareness between both network and applications. Application visibility and

control are natively available on the router, so you can measure user experience

without external probes.

Performance is the key to enabling advanced branch services or scaling across

the enterprise. With IOS XE and dedicate control, data, and service CPUs, these

platform is unmatched in the industry.ISR 4331 delivering 100Mbps-300Mbps

performance on demand,with pay-as-you-grow performance, you can increase

forwarding capacity when needed, so the platform performance growth with

your business, you only pay for the performance you need. Secure

communications are expected in ISR and you will have access to the most

advanced encryption platform in the market, IPsec, SSL VPN and flex VPN with

support for next-generation encryption standards as well.The Cisco 4331 is the

ultimate application delivery platform to mid-size branch offices. This is literally

routing redefined.

ISR4331-V/K9 Specification
Description	Cisco ISR4331-V/K9 ( 2GE, 2NIM, 1SM, 4G FLASH, 4G DRAM, Voice Bundle)
Aggregate Throughput	100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	2
SFP-based ports	2
Enhanced service-module slots	1
Doublewide service-module slots	0
NIM slots	2
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/ services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/ services/data planes)	16 GB
Default memory DDR3 ECC DRAM (data plane)	NA
Maximum memory DDR3 ECC DRAM (data plane)	NA
Default memory DDR3 ECC DRAM (control/services plane)	NA
Maximum memory DDR3 ECC DRAM (control/services plane)	NA
Default flash memory	4 GB
Maximum flash memory	16 GB
External USB 2.0 slots (type A)	1
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC and PoE
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	3 to 1.3 A
AC input surge current	60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts)	42
Maximum power with AC power supply (watts)	250
Maximum power with PoE power supply (platform only) (watts)	530
Maximum endpoint PoE power available from PoE power supply (watts)	250
