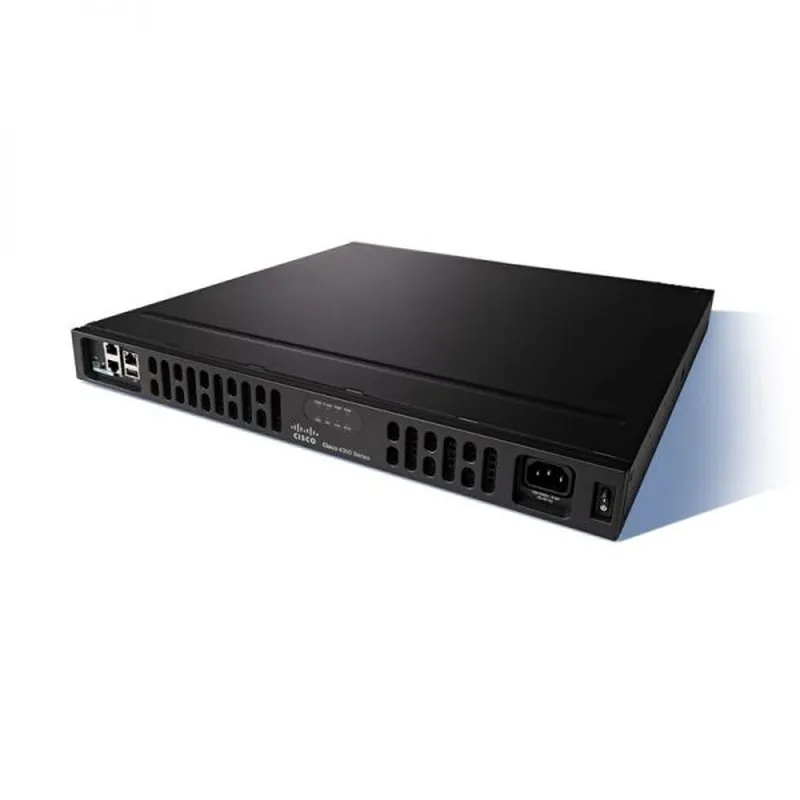

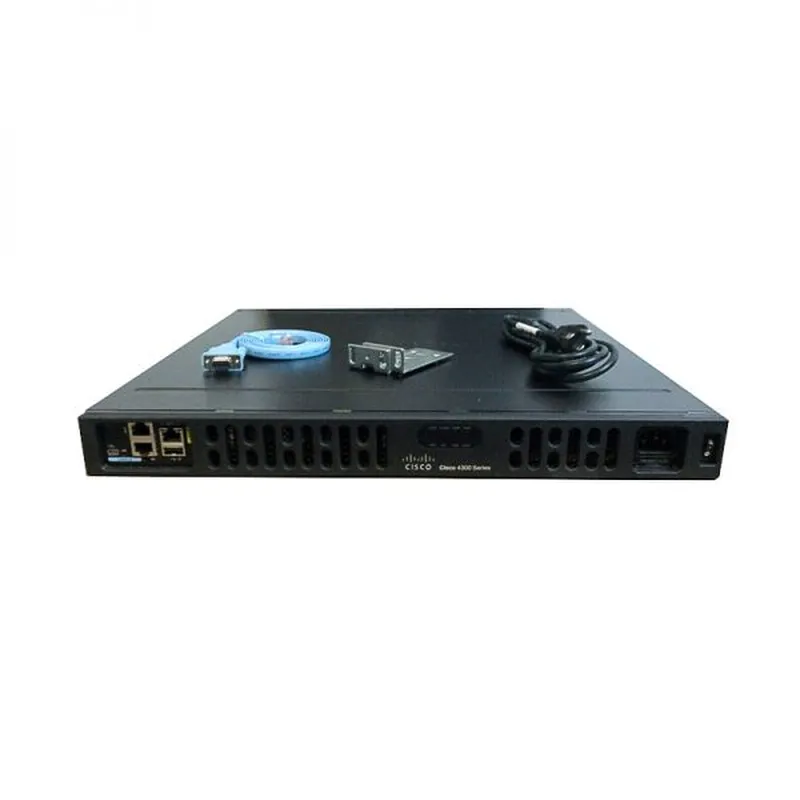

ISR4331-SEC/K9 Overview
Cisco ISR4331-SEC/K9 is the Cisco ISR4331/k9 router with Security Bundle.
Its other specifications are the same as ISR4331/k9.
ISR4331-SEC/K9 Specification | |
Description | 100Mbps-300Mbps system throughput, 3 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC. |
Aggregate Throughput | 100 Mbps to 300 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 2 |
SFP-based ports | 2 |
Enhanced service-module slots | 1 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/ services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/ services/data planes) | 16 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 16 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 3 to 1.3 A |
AC input surge current | 60 A peak and less than 5 Arms per half cycle |
Typical power (no modules) (watts) | 42 |
Maximum power with AC power supply (watts) | 250 |
Maximum power with PoE power supply (platform only) (watts) | 530 |
Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Descriptions |
Console and Auxillary Cables | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M | |
Cisco Router Cable CAB-ETH-S-RJ45 | ||
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | ||
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
| Licenses | L-SL-4330-APP-K9= | Cisco AppX license L-SL-4330-APP-K9= with 750 conns/ISRWAAS or 1300 conns/vWAAS for ISR4331 |
Network Interface Modules | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco Multiflex Trunk Voice and WAN network interface module | ||
Analog voice network interface card (ear and mouth) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | ||
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
