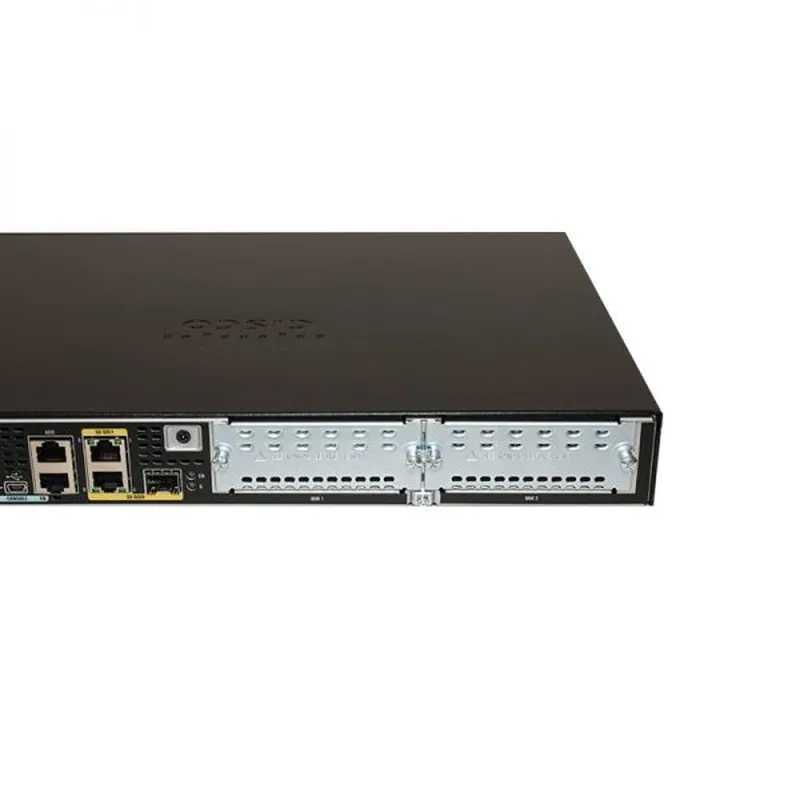

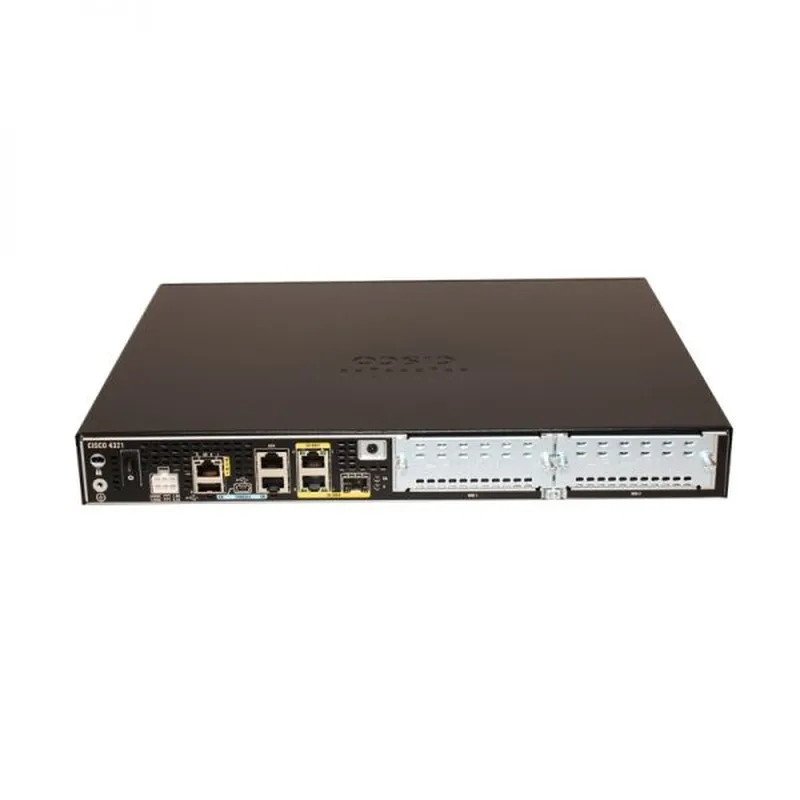

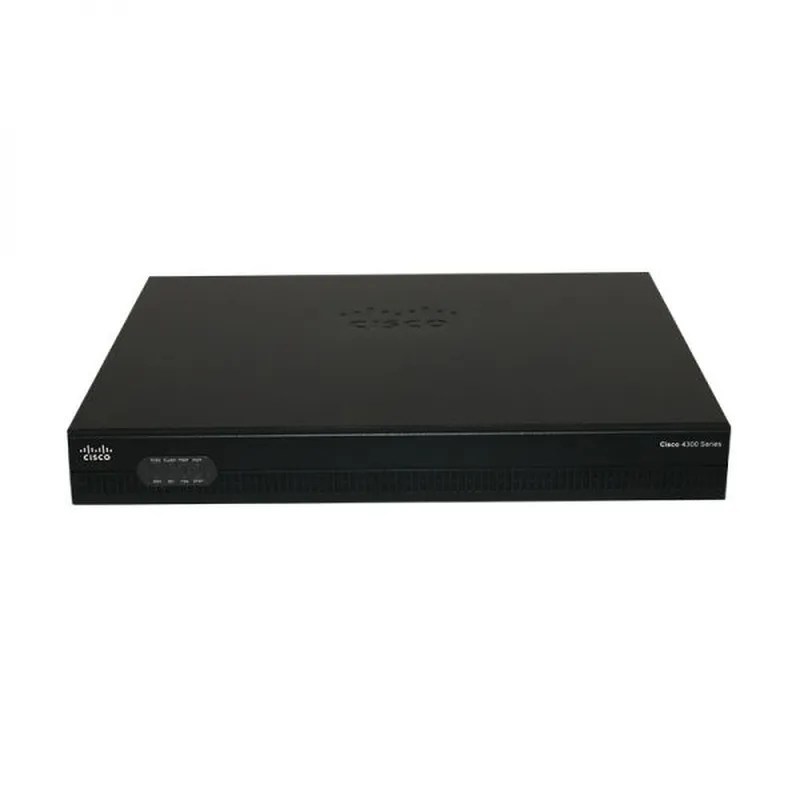

ISR4321/K9 Overview
Cisco 4321 Integrated Services router is design to deliver advanced services
to the small enterprise branch environment. It delivers 50Mbps thoughtput
by default. With pay-as-you-grow performance, you can increase forwarding
capacity to 100Mbps by buying FL-4320-PERF-K9 licenses.
ISR4321/K9 Specification | |
Product Number | ISR4321/K9 |
Product Description | 50Mbps-100Mbps system throughput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC |
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |

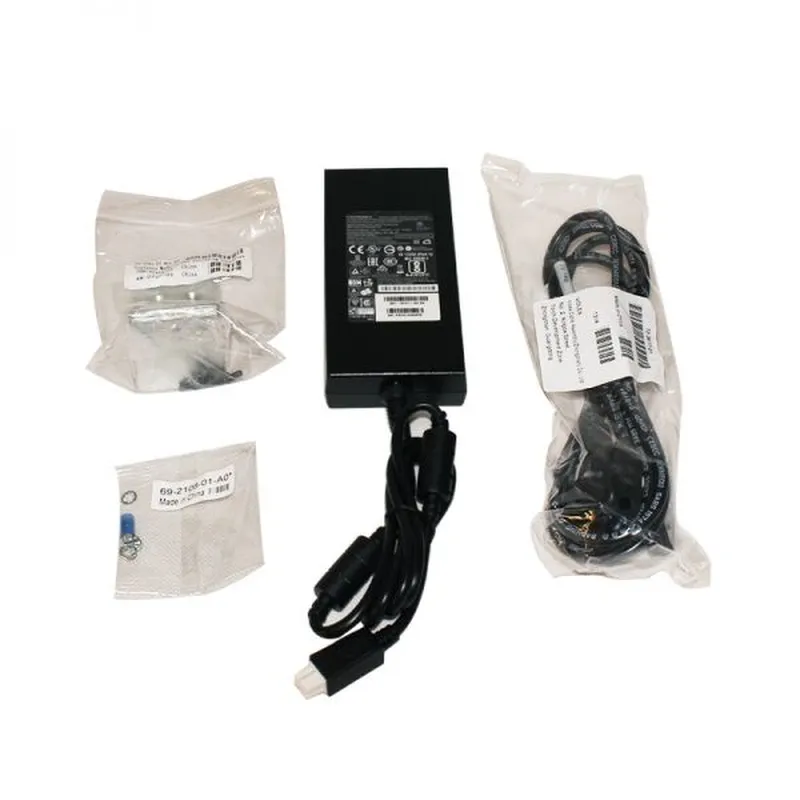

Power-supply options | External: AC and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90 A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 36 |
Maximum power with AC power supply (watts) | 125 |
Maximum power with PoE power supply (platform only) (watts) | 260 |
Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Description |
License | L-SL-4320-APP-K9= | Cisco AppX license L-SL-4320-APP-K9= with 200 conns/ISRWAAS or 750 conns/vWAAS |
Smart Serial Cables | Cisco CAB-SS-449FC RS-449 Cable, DCE Female to Smart Serial, 10 Feet | |
Console and Auxillary Cables | Cisco CAB-CONSOLE-RJ45 onsole Cable 6ft with RJ45 and DB9F | |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Network Interface Modules | Cisco Multiflex Trunk Voice and WAN network interface module | |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | ||
Analog voice network interface card (ear and mouth) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
SFPs for On-Board GE Ports | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | ||
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
