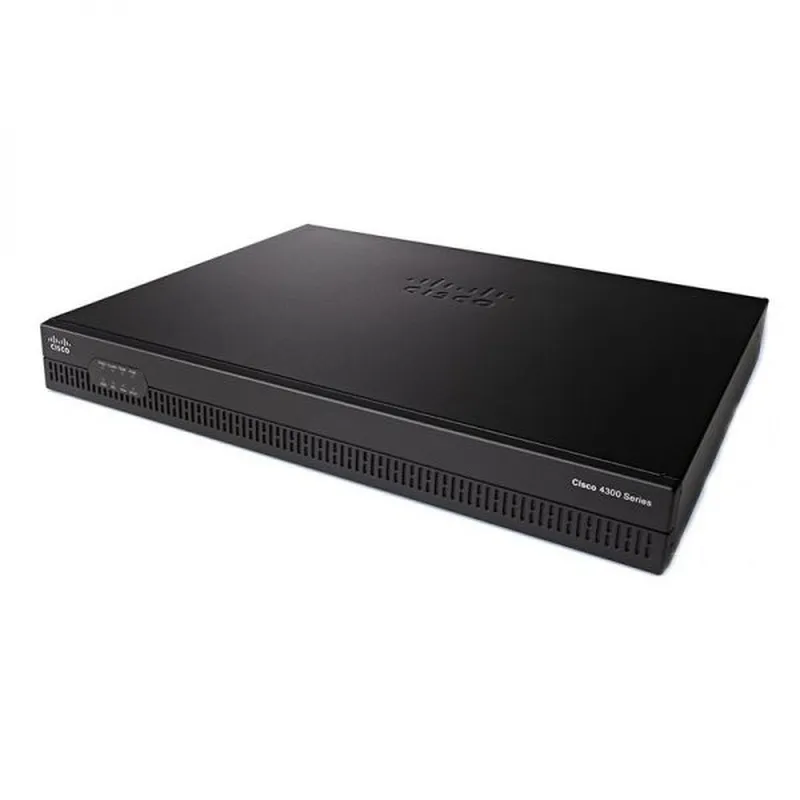

Cisco Router 4000 Series ISR4321-VSEC/K9

ISR4321-VSEC/K9

Cisco ISR 4321 Bundle w/UC & SEC License. CUBE-10

Description

ISR4321-VSEC/K9 Overview


Cisco 4321 Integrated Services router is design to deliver advanced services

to the small enterprise branch environment. It delivers 50Mbps thoughtput

by default. ISR4321-VSEC/K9 is the Cisco ISR 4321 router with Bundle w/UC

& SEC License, and CUBE-10.


ISR4321-VSEC/K9 Specification

Product Number

ISR4321-VSEC/K9

Product Description

Cisco ISR 4321 Bundle w/UC & SEC License.

CUBE-10

Aggregate   Throughput

50 Mbps to 100 Mbps

Total onboard WAN

or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

Enhanced

service-module slots

0

Doublewide

service-module slots

0

NIM slots

2

OIR (all I/O   modules)

Yes

Onboard ISC slot

1

Default memory

double-data-rate 3 (DDR3)

error-correction-code

(ECC) DRAM

(Combined

control/services/data planes)

4 GB

Maximum memory DDR3

ECC DRAM

(Combined control/services/data planes)

8 GB

Default memory DDR3

ECC DRAM (data plane)

NA

Maximum memory DDR3

ECC DRAM (data plane)

NA

Default memory DDR3

ECC DRAM

(control/services plane)

NA

Maximum memory DDR3

ECC DRAM

(control/services plane)

NA

Default flash   memory

4 GB

Maximum flash   memory

8 GB

External USB 2.0 slots

(type A)

1

USB console port -type B mini

(up to 115.2 kbps)

1

Serial console port   - RJ45

(up to 115.2 kbps)

1

Serial auxiliary   port - RJ45

(up to 115.2 kbps)

1

Power-supply   options

External: AC and PoE

Redundant power   supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current   range,

AC power supply (maximum)

1.5 to 0.6A

AC input surge   current

90 A peak and less than 3 Arms per   half cycle

Typical power

(no   modules) (watts)

36

Maximum power with

AC power supply (watts)

125

Maximum power with

PoE power supply

(platform only) (watts)

260

Maximum endpoint

PoE power available

from PoE power supply

(watts)

120


The Modules, Cards, Licenses & Accessories

Table 2 shows some recommended modules, cards, licenses and several cables.


Items

Models

Description

License

L-SL-4320-APP-K9=

Cisco AppX license   L-SL-4320-APP-K9= with 200

conns/ISRWAAS or 750 conns/vWAAS

Console

and

Auxillary

Cables

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 onsole Cable 6ft with

RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB   Console Cable 6 ft with

USB Type A and mini-B

Network

Interface

Modules

NIM-2CE1T1-PRI

Cisco Multiflex Trunk   Voice and WAN network

interface module

NIM-1MFT-T1/E1

Cisco   Fourth-Generation Multiflex Trunk Voice

and WAN network interface module

NIM-4E/M

Analog voice network   interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice   network interface card

NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card

NIM-2FXS/4FXO

SFPs for

On-Board

GE Ports

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP

transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver

module, SMF, 1550nm, DOM

GLC-SX-MMD

Cisco GLC-SX-MMD   1000BASE-SX SFP

transceiver module, MMF, 850nm, DOM
