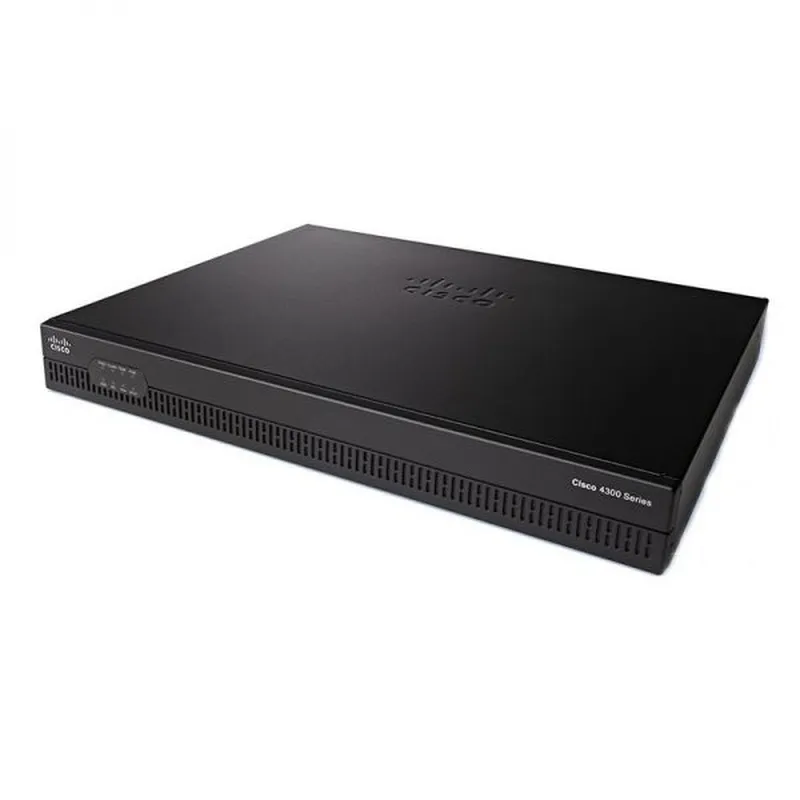

ISR4321-V/K9 Overview
Cisco Intergrated Services router ISR4321-V/K9 Voice Bundle is design to
deliver advanced VOIP services to the small enterprise branch environment.
Cisco ISR 4321 integrates 2 dual mode Gigabit Ethernet ports and PVDM4
DSP for voice and video services, two network modules, one integrated
services card slot, 4GB DDR3 Dream and 4 GB flash memory.Cisco ISR4321
delivers 50Mbps thoughtput by default, with pay-as-you-grow performance,
you can increase forwarding capacity to 100Mbps when needed, so the
platform performance growth with your business, you only pay for the
performance you need. According to security, ISR4321 support most
advanced encryption - IPsec, SSL VPN and flex VPN.
ISR4321-V/K9 Specification | |
Product Number | ISR4321-V/K9 |
Product Description | ISR4321-V/K9 ( 2GE , 2NIM , 4G FLASH ,4G DRAM ,Voice Bundle ) |
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | External: AC and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90 A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 36 |
Maximum power with AC power supply (watts) | 125 |
Maximum power with PoE power supply (platform only) (watts) | 260 |
Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Description |
License | L-SL-4320-APP-K9= | Cisco AppX license L-SL-4320-APP-K9= with 200 conns/ISRWAAS or 750 conns/vWAAS |
Smart Serial Cables | Cisco CAB-SS-449FC RS-449 Cable, DCE Female to Smart Serial, 10 Feet | |
Console and Auxillary Cables | Cisco CAB-CONSOLE-RJ45 onsole Cable 6ft with RJ45 and DB9F | |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Network Interface Modules | Cisco Multiflex Trunk Voice and WAN network interface module | |
| NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Analog voice network interface card (ear and mouth) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
SFPs for On-Board GE Ports | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | ||
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
