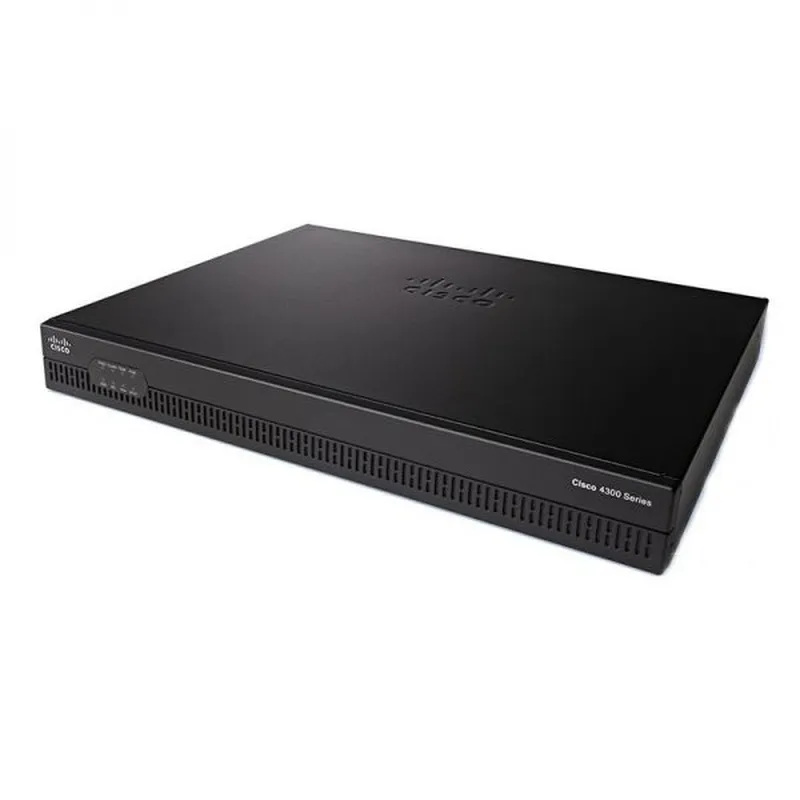

ISR4321-AX/K9 Overview
ISR4321-AX/K9 intelligent WAN bundle combines security features, application
experience and Wide Area Application Services (WAAS) features together into
one platform. The intelligent WAN bundle optimizes network traffic across the
“best” link based on applications and monitors network conditions to deliver
the best performance as possible. In this platform, you get tight control over
application performance, bandwidth usage, data privacy, and availability of your
WAN links - control that you need as your branches conduct greater volumes of
mission-critical business.
ISR4321-AX/K9 comes with IP base image, Security, AppX licensing for 200 TCP
connection resources for ISR WAAS optimization and 4-GB DRAM, 4GB Flash
memory, 50Mbps WAN bandwidth by default, to enable the ISR WAAS service,
update memory, flash memory and hard drive is required, vWAAS service is
not available on this platform.
ISR4321-AX/K9 Specification | |
Product Number | ISR4321-AX/K9 |
Product Description | ISR4321-AX/K9 ( 2GE,2NIM,4G FLASH,4G DRAM,IP Base, Security, AppX ) |
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/ services/data planes) | 8 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | External: AC and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90 A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 36 |
Maximum power with AC power supply (watts) | 125 |
Maximum power with PoE power supply (platform only) (watts) | 260 |
Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
The Modules, Cards, Licenses & Accessories
Table 2 shows some recommended modules, cards, licenses and several cables.
Items | Models | Description |
License | L-SL-4320-APP-K9= | Cisco AppX license L-SL-4320-APP-K9= with 200 conns/ISRWAAS or 750 conns/vWAAS |
Smart Serial Cables | Cisco CAB-SS-449FC RS-449 Cable, DCE Female to Smart Serial, 10 Feet | |
Console and Auxillary Cables | Cisco CAB-CONSOLE-RJ45 onsole Cable 6ft with RJ45 and DB9F | |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Network Interface Modules | Cisco Multiflex Trunk Voice and WAN network interface module | |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | ||
Analog voice network interface card ( ear and mouth ) | ||
Cisco Analog voice network interface card NIM-2FXS | ||
Cisco Analog voice network interface card NIM-2FXS/4FXO | ||
SFPs for On-Board GE Ports | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | ||
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
