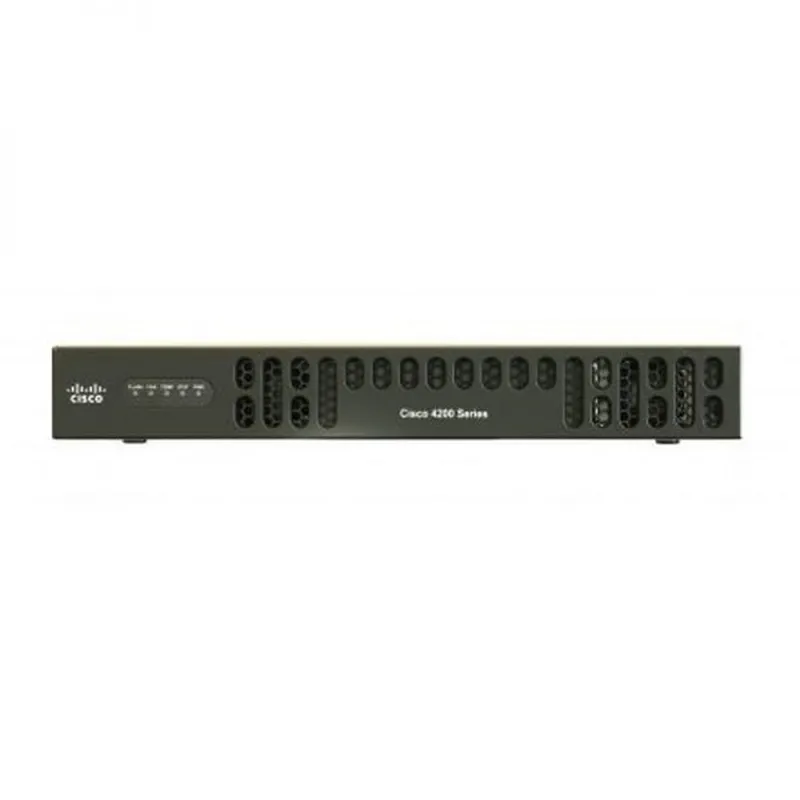

ISR4221X/K9

Product Code

ISR4221X/K9

Description

Cisco ISR 4221

(2GE,2NIM,8G FLASH,8G DRAM,IPB)

Aggregate Throughput (Default)

35 Mbps

Aggregate Throughput

(Performance License)

75 Mbps

Aggregate CEF Only

Throughput (Boost License)

1.2 Gbps

Total onboard WAN or

LAN 10/100/1000 ports

2

Total onboard WAN or

LAN 10Gbps ports

N/A

RJ-45-based ports

2

SFP-based ports

1

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O  modules)

NO

Onboard ISC slot

NO

Default memory double-data-rate 3 (DDR3)

error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3   ECC DRAM

(Combined control/services/data planes)

4 GB

Default memory DDR3 ECC DRAM

(data plane)

N/A

Maximum memory DDR3   ECC DRAM

(data plane)

N/A

Default memory DDR3   ECC DRAM

(control/services plane)

N/A

Maximum memory DDR3   ECC DRAM

(control/services plane)

N/A

Default flash   memory

8 GB

Maximum flash   memory

8 GB

External USB 2.0   slots (type A)

1

USB console port   -type B mini

(up to 115.2 kbps)

0

Serial console port   - RJ45

(up to 115.2 kbps)

1 (combo CON/AUX port)

Serial auxiliary   port - RJ45

(up to 115.2 kbps)

1 (combo CON/AUX port)

Power-supply   options

External AC only

Redundant power   supply

N/A

Power   Specifications

AC input voltage

100 to 240 VAC autoranging

DC Input Voltage

Input Voltage

Input Current

N/A

N/A

AC input frequency

47 to 63 Hz

AC input current   range,

AC power supply (maximum)

1.5 to 0.6A

AC input surge   current

90 A peak and less than 3 Arms per   half cycle

Typical power (no   modules) (watts)

24

Maximum power with

AC power supply (watts)

90

Maximum power with

DC power supply (watts)

N/A

Maximum power with PoE power supply

(platform only) (watts)

N/A (No PoE Support)

Maximum endpoint   PoE power

available from PoE power supply

(watts)

N/A (No PoE Support)

Maximum endpoint PoE power capacity

with PoE boost (watts)

N/A (No PoE Support)

Sizes

Dimensions(H x W x   D)

1.72 x 12.7 x 10"(43.7 x   322.6 x 254 mm)

External Power Supply Dimensions

(Hx W x D)

37 x 73 x 152mm (Phihongmfg   PN:

AA90U120A-R) 36.5x 67 x 155mm

(Deltamfg PN:ADP90GRBA)

Rack height

1 rack unit(1RU)

Rack-mount 19in.   (48.3cm) EIA

Optional

Rack-mount 23in.   (58.4cm) EIA

NA

Wall-mount

Yes

Airflow

I/O side to bezel side

MTBF (Hours)

593270

Environmental   Specifications

Temperature

32º to 104ºF(0ºto 40ºC)

Altitude(China)

0–6,560 ft.(0–2,000 m)

Altitude(Rest of   the world)

0–10,000 ft.(0–3,050 m)

Short Term Temperature upto 6560ft

per NEBS GR-63-CORE

N/A

Relative humidity

5% to 85%

Short-term humidity

5% to 90% not to exceed 0.024 kg   water/kg of dry air

Acoustics:Sound pressure

(Typical/ maximum)

28.5/53 dBA

57.2/80.8 dBA

41/68 dBA

Nonoperating   Conditions

Temperature

-40 to 158ºF(-40 to 70ºC)

Relative humidity

5% to 95%

Altitude

15,584 ft (4750m)

Regulatory and   Compliance

Safety

UL 60950-1

CAN/CSA

C22.2 No.

60950-1

EN 60950-1

AS/NZS

60950-1

IEC 60950-1

GB-4943

ICES-003

Class A

EN55022

Class A

CISPR22

Class A

AS/NZS3548

Class A

VCCI V-3

CNS 13438

EN 300-386

EN 61000 (Immunity)

EN 55024,

CISPR 24

EN50082-1

KN22,

KN24

Telecom

TIA-968-B CS-03 ANSI T1.101 ITU-T   G.823, G.824

IEEE 802.3 RTTE Directive Homologation requirements

vary by country and interface type.

Ethernet Switch

NIM-ES2-4

Cisco 4-Port Gigabit Ethernet Switch NIM

NIM-ES2-8

Cisco 8-Port Gigabit Ethernet Switch NIM

Ethernet

Routed-Port

NIM-1GE-CU-SFP

1-port Gigabit Ethernet NIM , dual mode SFP   or  RJ45

NIM-2GE-CU-SFP

2-port Gigabit Ethernet NIM , dual mode SFP   or  RJ45

Wireless WAN

(3G, 4G, LTE)

NIM-4G-LTE-GA=

4G LTE NIM for Global

(Europe, Australia   & New Zealand)

T1, E1, and

G.703 Multiflex

Trunk Voice

and WAN

Interface Cards

NIM-1MFT-T1/E1

1-port multiflex trunk voice/clear-channel data T1/E1

module

NIM-2MFT-T1/E1

2 port Multi-flex Trunk Voice/Clear-channel Data

T1/E1 Module

Serial WAN

Interface

NIM-1T

1-Port Serial High-Speed WAN Interface Card

NIM-2T

2-Port Serial High-Speed WAN Interface Card

Small

Form-Factor

Pluggable

GLC-EX-SMD

1000BASE-EX SFP transceiver module, SMF, 1310nm,

DOM

GLC-LH-SM

GE SFP, LC connector LX/LH transceiver

GLC-LH-SMD

GE SFP, LC connector LX/LH transceiver; with DOM

GLC-SX-MMD

GE SFP, LC connector SX transceiver; with   DOM

GLC-ZX-SMD

1000BASE-ZX SFP; with DOM

Licenses

L-SL-4220-APP-K9=

AppX License for   Cisco ISR 4220 Series
