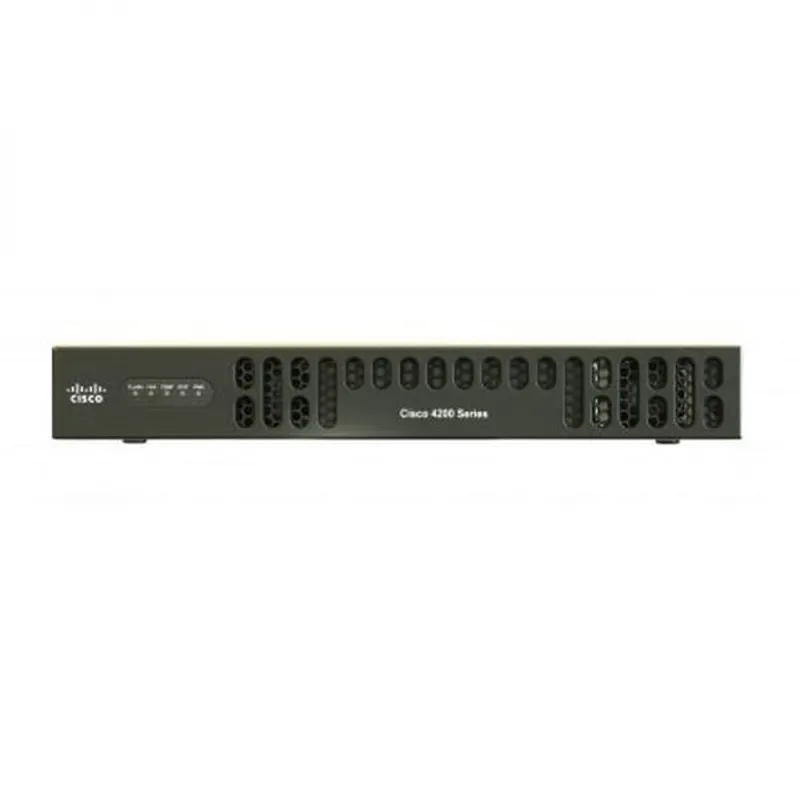

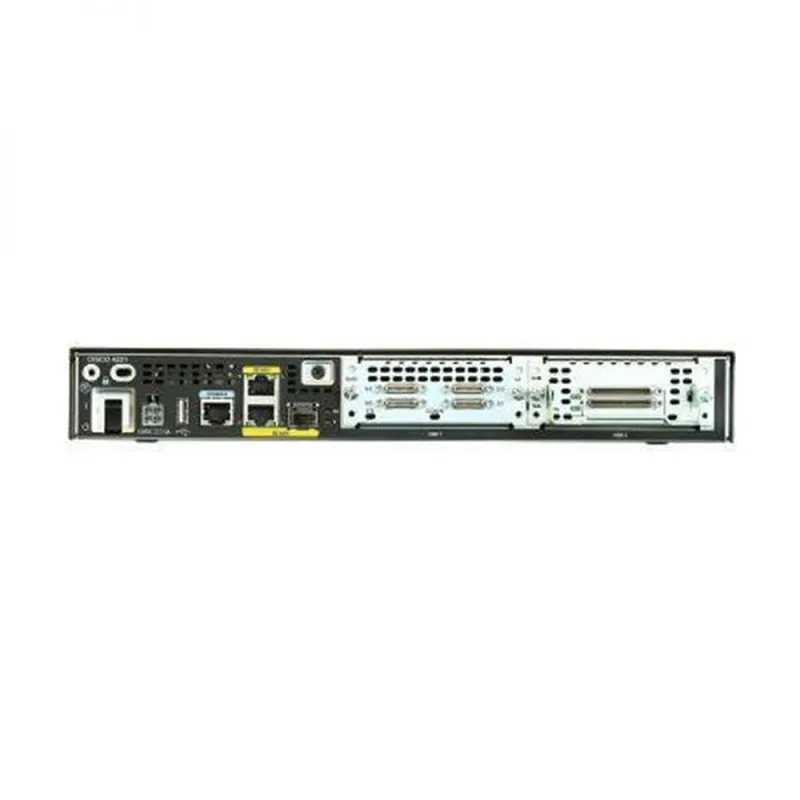

ISR4221-SEC/K9 Overview
ISR4221-SEC/K9 is the Cisco 4221 Integrated Services router is design to
deliver advanced services to the small enterprise branch environment.
It bundles Security Bundle with Security License.
ISR4221-SEC/K9 Specification | |
Description | Cisco ISR 4221 SEC Bundle with SEC lic |
Aggregate Throughput | 35 Mbps to 75 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | No |
Onboard ISC slot | No |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/ services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/ services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/ services plane) | NA |
Default flash memory | 8 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 0 |
Serial console port- RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
Power-supply options | External: AC Only |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90 A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 24 |
Maximum power with AC power supply (watts) | 90 |
Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
The Modules & Cards
Table 2 shows some recommended modules and cards.
Items | Models | Description |
Console and Auxillary Cables | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
Network Interface Modules | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2 | ||
Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM | ||
SFPs for On-Board GE Ports | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
Cisco GLC-ZX-SMD1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | ||
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
