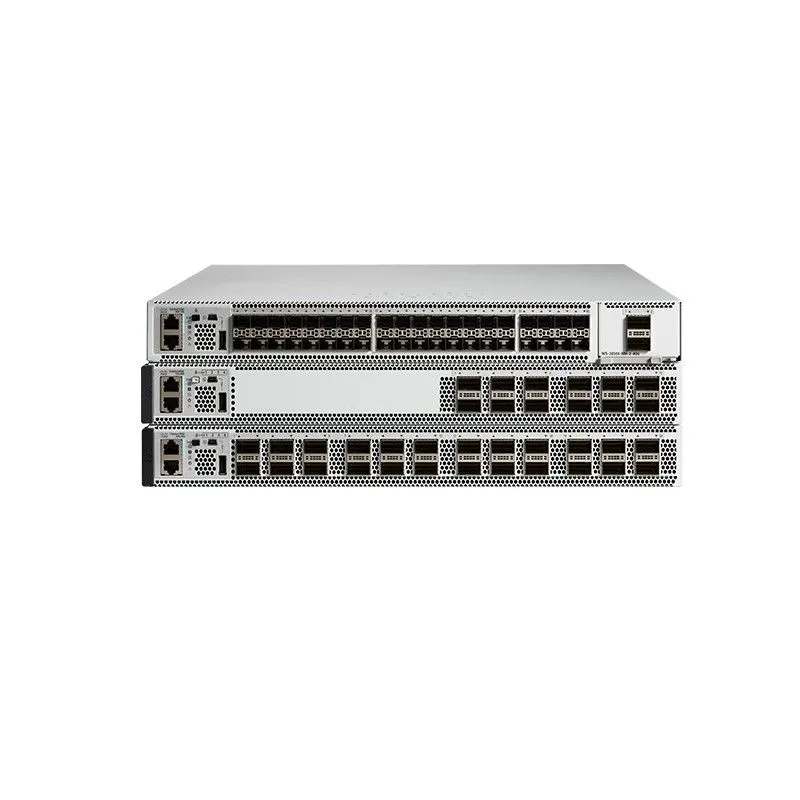

C9500-12Q-E Overview
C9500-12Q-E is one of the the Cisco Catalyst 9500 Series Switches. The Cisco
Catalyst 9500 Series Switches are the next generation of enterprise-class core
and aggregation layer switches, supporting full programmability and serviceability.
Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed
core and aggregation enterprise switching platform, built for security, IoT, and cloud.
The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line
of switches targeted for the enterprise campus.
C9500-12Q-E Specification
C9500-12Q-E specifications | |
Performance specifications | |
Switching capacity | Up to 960 Gbps |
Forwarding rate | Up to 720 Mpps |
Total number of MAC addresses | Up to 64,000* |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect* Up to 32,000 host* |
Total number of IPv6 routes | Up to 32,000 indirect* Up to 16,000 host* |
Multicast scale | Up to 48,000* |
QoS ACL scale | Up to 18000* |
Security ACL scale | Up to 18000* |
FNF entries | Up to 512,000* |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9198 bytes |
Power supply specifications | |
Power Supply Feature | Support in the Catalyst 9500 Series |
AC power max rating | 950W |
System power consumption | 850W max |
Input-voltage range and frequency | AC 115 to 230 VAC, 50 to 60 Hz |
Power supply efficiency | 94% |
Total output BTU (Note: 1000 BTU/hr = 293W) | 2901 BTU/hr (850W) max |
Input current | AC 10A at 115VAC, 5 A at 230VAC |
Output ratings | 12V at 79A, 12V at 3A |
Output holdup time | AC = 10 ms at maximum load |
Power-supply input receptacles | AC IEC 60320 C16 |
Power cord rating | AC 15A |
Dimensions, physical specifications, and MTBF | |
Description | Specifications |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Operating temperature | 32°F to 104°F (0° to 40°C) |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
Altitude | Operation up to 6000 ft |
MTBF (hours) | 179,660 |
