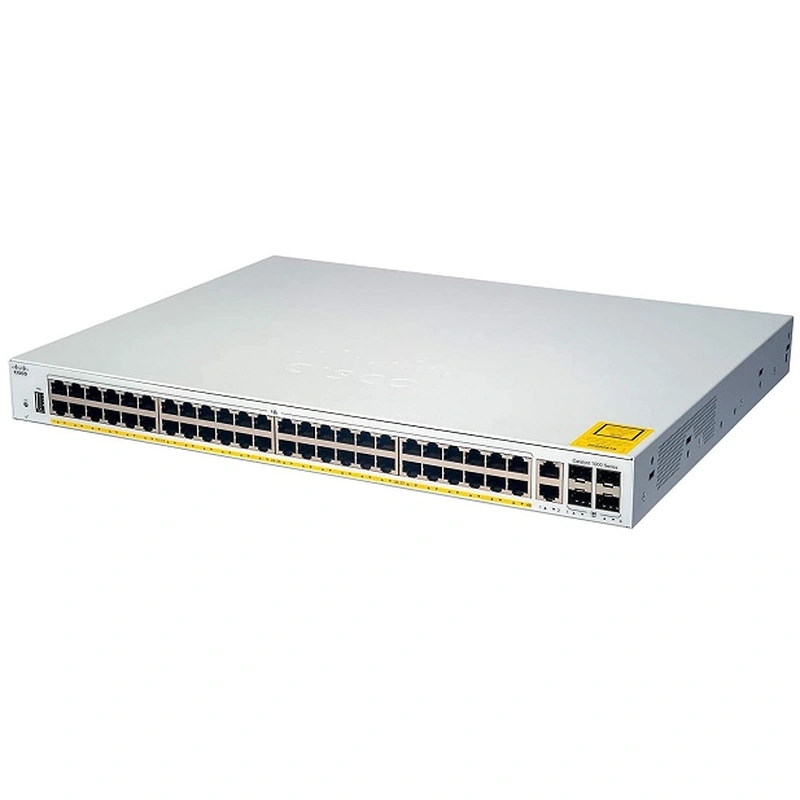

C1000FE-48T-4G-L

General

Gigabit Ethernet / FE ports

48 10/100 RJ45 Data

Uplink interfaces

2 SFP/ RJ-45 combo and 2 SFP

Fanless

Y

Dimensions (WxDxH)

17.32 x 11.34 x 1.73 inch

Weight

3.97kg

RJ-45 Ethernet

1

USB mini-B

1

USB-A port for storage

and Bluetooth console

1

Memory and processor

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

8.8 Gbps

Switching bandwidth

17.6 Gbps

Forwarding rate

(64‑byte L3 packets)

13.09 Mpps

MAC addresses

16000

IPv4 unicast direct routes

542

IPv4 unicast indirect routes

256

IPv6 unicast direct routes

414

IPv6 unicast indirect routes

128

IPv4 multicast routes

 and IGMP groups

1024

IPv6 multicast groups

1024

IPv4/MAC security ACEs

384

IPv6 security ACEs

256

Maximum active VLANs

256

VLAN IDs available

4094

Maximum STP instances

64

Maximum SPAN sessions

4

MTU-L3 packet

9198 bytes

Jumbo Ethernet frame

10,240 bytes

Environmental

Up to 5,000ft (1500 m)

-5 to 45 deg C

Upto 10,000 (3000 m)

-5 to 40 deg C

Operating altitude

10,000 ft (3,000m)

Operating relative humidity

5% to 90% at 40 deg C   (non-condensing)

Storage temperature

-13 to 158F (-25 to 70C)

Storage altitude

15,000 ft (4500m)

Storage relative humidi

5% to 95% at 65 deg C   (non-condensing)

Electrical

Voltage (auto ranging)

110 to 220V AC in

Frequency

50 to 60 Hz

Current

0.24A to 0.69A

Power rating

(maximum consumption)

0.035 kVA

Safety and compliance

Safety

UL 60950-1 Second Edition,   CAN/CSA-C22.2

No. 60950-1 Second Edition,   EN 60950-1

 Second Edition, IEC 60950-1 Second Edition,

AS/NZS 60950-1, IEC 62368-1,   UL 62368-1
  GB 4943.1-2011

EMC: Emissions

47CFR Part 15 Class A, AS/NZS CISPR32 Class A,

CISPR32 Class A, EN55032 Class A,ICES-003 Class A,

 VCCI-CISPR32 Class A, EN61000-3-2,   EN61000-3-3,

KN32 Class A, CNS13438 Class   A

EMC: Immunity

EN55024 (including EN   61000-4-5), EN300386, KN35

Environmental

Reduction of Hazardous   Substances (RoHS) including

Directive 2011/65/EU

Telco

Common Language Equipment   Identifier (CLEI) code

U.S. government

certifications

USGv6 and IPv6 Ready Logo

Connectors and interfaces

Indicator LEDs

Per-port status: link   integrity, disabled, activity
  System status: System

Console cables

CAB-CONSOLE-RJ45 Console   cable 6 ft. with RJ-45
  CAB-CONSOLE-USB Console cable 6 ft. with USB

Type A and mini-B connectors

Power

Use the supplied AC power   cord to connect the

 AC power connector to an AC power outlet

  Models have external power supply
