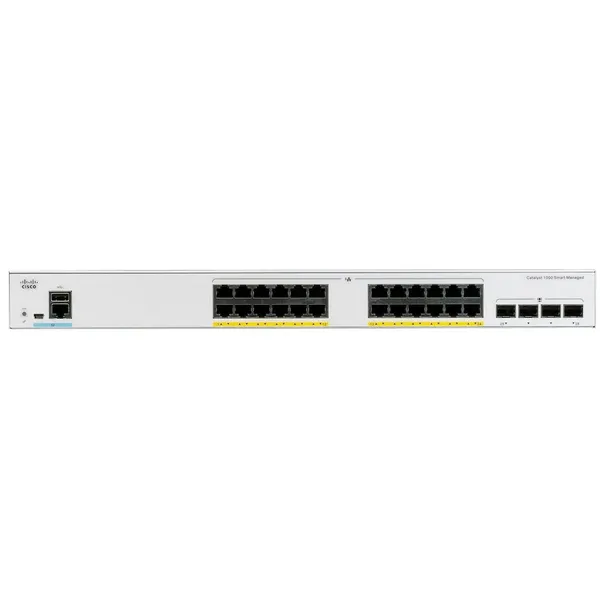

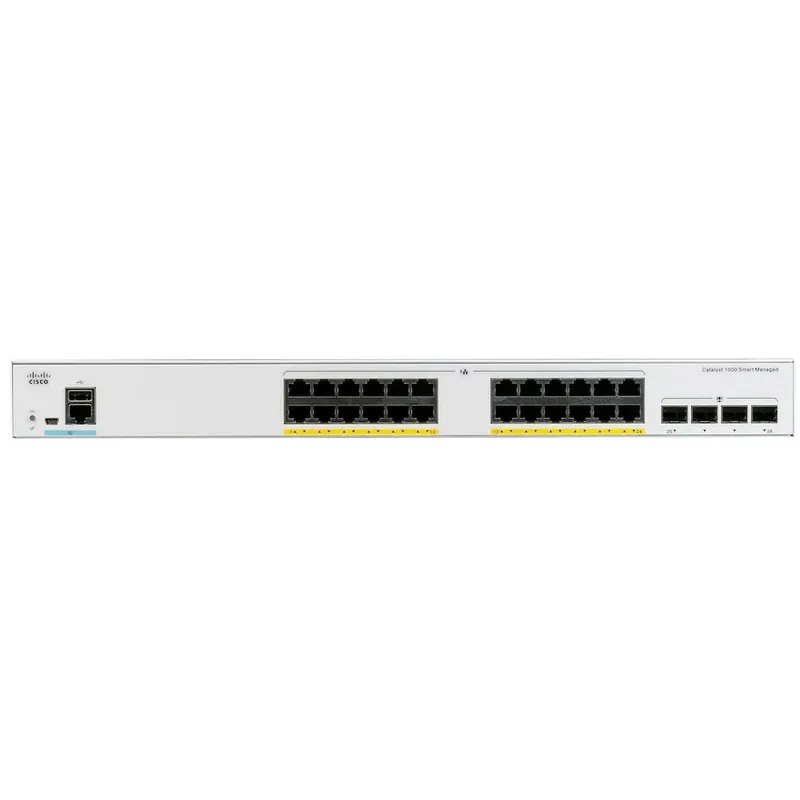

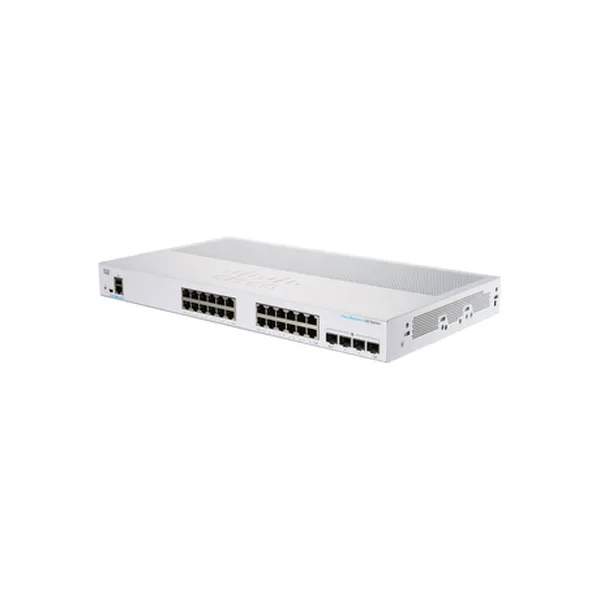

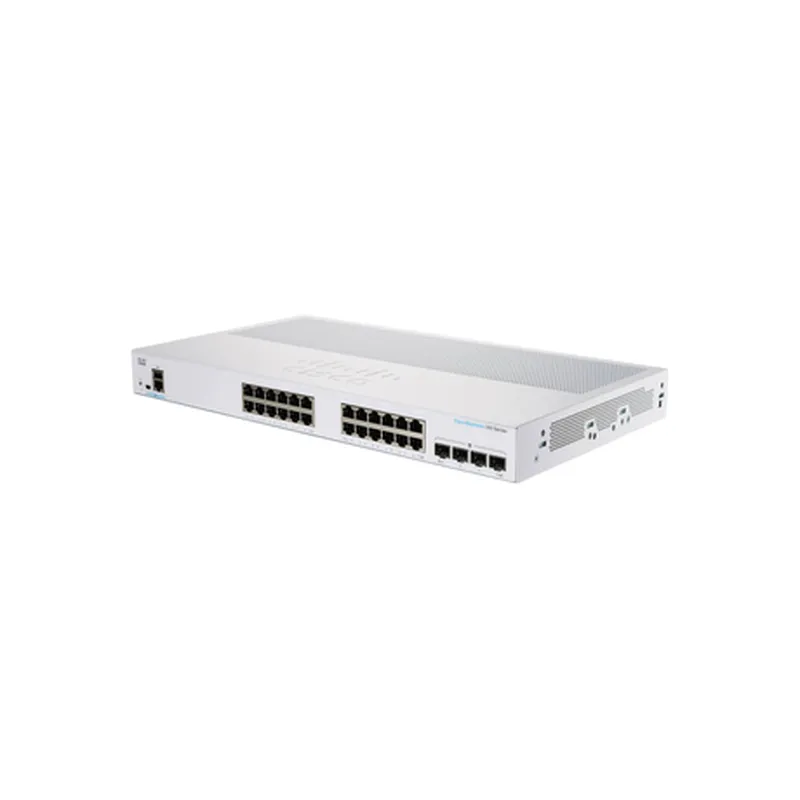

C1000FE-24P-4G-L Overview
C1000FE-24P-4G-L Catalyst 1000 Switch - Fixed Managed, Fast Ethernet
data - L2 - 24 x 10/100 Ethernet PoE+ ports, 2 x 1G SFP/RJ-45 Combo
Uplinks and 2 x 1G SFP Uplinks - 195w PoE Budget.
Description | Performance |
Hardware | |
Interface | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks |
Console ports | · 1x RJ-45 Ethernet · 1x USB mini-B · 1x USB-A port for storage and Bluetooth console |
Indicator LEDs | · Per-port status: link integrity, · disabled, activity System status: system |
Dimensions (WxDxH in inches) | 17.48 x 13.59 x 1.73 |
Weight | 4.6 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 28 Gbps |
Switching bandwidth | 56 Gbps |
Forwarding rate | 41.67 Mpps |
Unicast MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
Electrical | |
Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
Voltage (auto ranging) | 110 to 220V AC in |
Frequency | 50 to 60 Hz |
Current | 0.21A to 0.26A |
Power rating (maximum consumption) | 0.24 kVA |
PoE Suports | Yes |
Total PoE Suports | 370W |
PoE Power | 30W for any 12 or 15W for 24 ports |
Safety and compliance | |
Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 |
EMC: Emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
