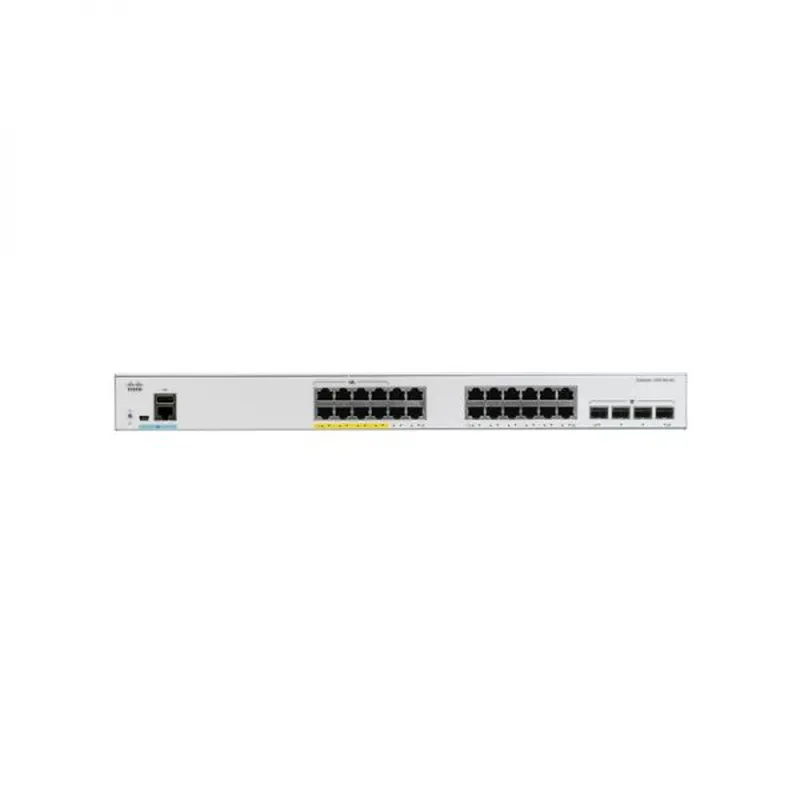

Cisco Switch Catalyst 1000 C1000-24P-4X-L

C1000-24P-4X-L

24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 10G SFP+ uplinks.

Description

C1000-24P-4X-L Overview


Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet

enterprise-class Layer 2 switches designed for small businesses and branch

offices. These are simple, flexible and secure switches ideal for

out-of-the-wiring-closet and critical Internet of Things (IoT) deployments.

Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple

device management and network management via a Command-Line Interface

(CLI) as well as an on-box web UI. These switches deliver enhanced network

security, network reliability, and operational efficiency for small organizations.


C1000-24P-4X-L Specification

Description

24x 10/100/1000 Ethernet PoE+ ports and

195W PoE budget, 4x 10G SFP+ uplinks

Gigabit Ethernet

ports

24

Uplink interfaces

4 SFP+

PoE+power budget

195 W

Fanless

Y

Dimensions

(WxDxH in inches)

17.5 x 11.76 x 1.73

Console ports

RJ-45 Ethernet

1

USB mini-B

1

USB-A port for

storage and

Bluetooth console

1

Memory and processor

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

64 Gbps

Switching bandwidth

128 Gbps

Forwarding rate

(64—byte L3 packets)

41.67 Mpps

Unicast MAC

addresses

16000

IPv4 unicast

direct routes

542

IPv4 unicast

indirect routes

256

IPv6 unicast

direct routes

414

IPv6 unicast

indirect routes

128

IPv4 static routes

16

IPv6 static routes

16

IPv4 multicast

routes and IGMP

groups

1024

IPv6 multicast

groups

1024

IPv4/MAC

security ACEs

600

IPv6 security

 ACEs

600

Maximum

active VLANs

256

VLAN IDs

 available

4094

Maximum

STP instances

64

Maximum

SPAN sessions

4

MTU-L3 packet

9198 bytes

Jumbo Ethernet

frame

10,240 bytes

Dying Gasp

Yes

MTBF in hours

(data)

2,026,793

MTBF in hours

(PoE)

698,220

MTBF in hours

(Full PoE)

698,220

Environmental

Operating

temperature

Seal level

-5 to 50 deg C*

Up to 5,000ft

 (1500 m)

-5 to 45 deg C

Upto 10,000

(3000 m)

-5 to 40 deg C

Operating altitude

10,000 ft (3,000m)

Operating relative humidity

5% to 90% at 40C

Storage temperature

-13 to 158F (-25 to 70C)

Storage altitude

15,000 ft (4500m)

Storage relative

 humidit

5% to 95% at 65C

*Note:

50C operation is supported for short term operation only; GLC-BX-D/U and   CWDM optics

cannot support 50C operation; Minimum ambient temperature for cold start   is at 0C (32F)

Safety and compliance

Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1

Second Edition, EN 60950-1 Second Edition, IEC 60950-1

Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1

GB 4943.1-2011

EMC: Emissions



47CFR Part 15 Class A, AS/NZS CISPR32 Class A,

CISPR32 Class A, EN55032 Class A, ICES-003 Class A,

VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3,

KN32 Class A, CNS13438 Class A

EMC: Immunity

EN55024 (including EN 61000-4-5), EN300386, KN35

Environmental

Reduction of Hazardous Substances (RoHS)

including Directive 2011/65/EU

Telco

Common Language Equipment Identifier (CLEI) code

U.S. government certifications

TBD

Connectors and interfaces

Ethernet interfaces





* 10BASE-T ports: RJ-45 connectors,

2-pair Category 3, 4, or 5 Unshielded Twisted Pair

 (UTP) cabling

* 100BASE-TX ports: RJ-45 connectors,

 2-pair Category 5 UTP cabling

* 1000BASE-T ports: RJ-45 connectors,

 4-pair Category 5 UTP cabling

* 1000BASE-T SFP-based ports: RJ-45 connectors,

 4-pair Category 5 UTP cabling

Indicator LEDs



* Per-port status: link integrity, disabled, activity

* System status: system

Console cables



* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

* CAB-CONSOLE-USB Console cable 6 ft.

with USB Type A and mini-B connectors

Power



* Use the supplied AC power cord to connect the

 AC power connector to an AC power   outlet

* Models have external power supply



Product Details

The Cisco Catalyst 1000 Series Switches provides these features:


* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate

  forwarding

* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable

  (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced

  SFP (SFP+) uplinks

* Perpetual PoE+ support with a power budget of up to 740W

* CLI and/or intuitive web UI manageability options

* Network monitoring through sampled flow (sFlow)

* Security with 802.1X support for connected devices, Switched Port

  Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard

* Compact fanless models available with a depth of less than

  13 inches (33 cm)

*Device management support with over-the-air access via Bluetooth,

  Simple Network Management Protocol (SNMP), RJ-45, or USB

  console access

* Reliability with a higher Mean Time Between Failures (MTBF) and an

  enhanced limited lifetime warranty support(E-LLW)
