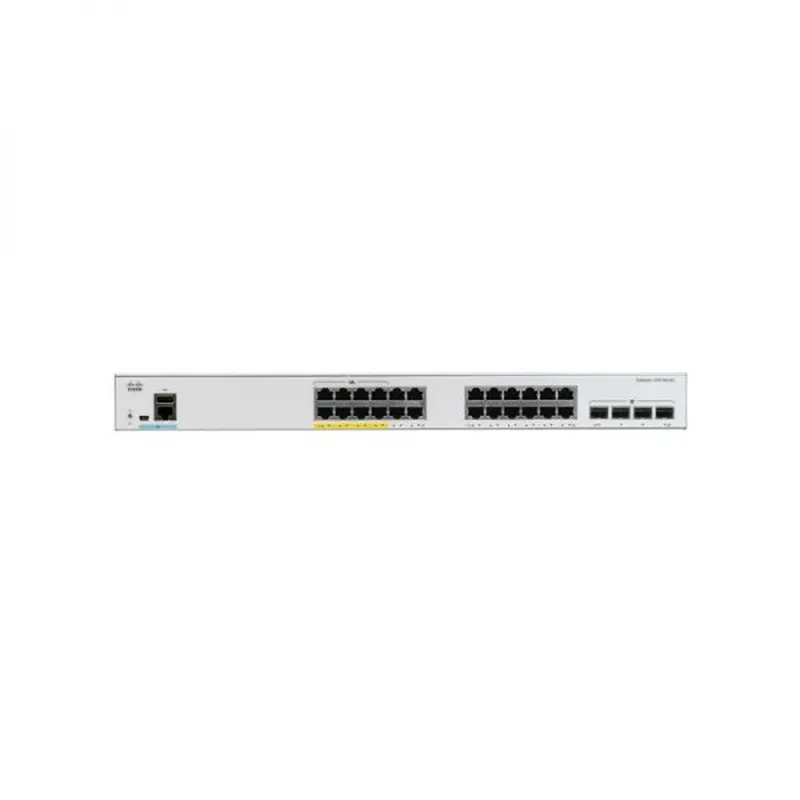

C1000-24FP-4G-L Overview
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet
enterprise-class Layer 2 switches designed for small businesses and branch
offices. These are simple, flexible and secure switches ideal for
out-of-the-wiring-closet and critical Internet of Things (IoT) deployments.
Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple
device management and network management via a Command-Line Interface
(CLI) as well as an on-box web UI. These switches deliver enhanced network
security, network reliability, and operational efficiency for small organizations.
C1000-24FP-4G-L Specification | |
Description | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks |
Gigabit Ethernet ports | 24 |
Uplink interfaces | 4 SFP |
PoE+power budget | 370W |
Fanless | N |
Dimensions (WxDxH in inches) | 17.5 x 13.59 x 1.73 |
Console ports | |
RJ-45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 28 Gbps |
Switching bandwidth | 56 Gbps |
Forwarding rate (64—byte L3 packets) | 41.67 Mpps |
Unicast MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 static routes | 16 |
IPv6 static routes | 16 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 2,026,793 |
MTBF in hours (PoE) | 698,220 |
MTBF in hours (Full PoE) | 698,220 |
Environmental | |
Operating temperature Seal level | -5 to 50 deg C* |
Up to 5,000ft (1500 m) | -5 to 45 deg C |
Upto 10,000 (3000 m) | -5 to 40 deg C |
Operating altitude | 10,000 ft (3,000m) |
Operating relative humidity | 5% to 90% at 40C |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidit | 5% to 95% at 65C |
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F) | |
Safety and compliance | |
Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011 |
EMC: Emissions
| 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
Telco | Common Language Equipment Identifier (CLEI) code |
U.S. government certifications | TBD |
Connectors and interfaces | |
Ethernet interfaces
| * 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
Indicator LEDs
| * Per-port status: link integrity, disabled, activity * System status: system |
Console cables
| * CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
Power
| * Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply |
Product Details
The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate
forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable
(SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced
SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port
Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than
13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth,
Simple Network Management Protocol (SNMP), RJ-45, or USB
console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an
enhanced limited lifetime warranty support(E-LLW)
