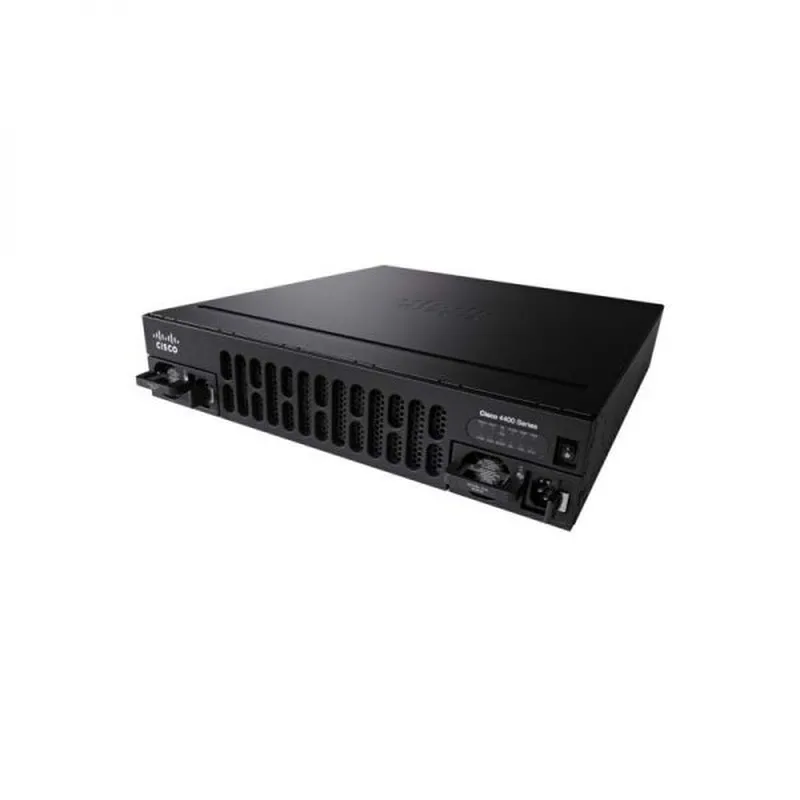

Cisco Router 4000 Series C1-CISCO4431/K9

C1-CISCO4431/K9


Cisco ONE ISR 4431 (4GE.3NIM.8G FLASH.4G DRAM.IPB)

Description

C1-CISCO4431/K9 Overview


Cisco 4431 Integrated Services Router, which supports 3 Network Interface

Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput.

This router also supports two kinds of DDRM, data plane and control/

services plane, which make administrator easy to manage the router.

The Cisco C1-CISCO4431/K9 is the 4431 Cisco ONE Software Bundle.


C1-CISCO4431/K9   Specification

Product Number

C1-CISCO4431/K9

Product Description

Cisco ONE ISR 4431 ( 4GE.3NIM.8G FLASH.4G DRAM.

IPB)


Aggregate Throughput

500Mbps to 1Gbps

Total onboard WAN or

 LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced

service-module

slots

0

Doublewide

service-module

slots

0

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory

double-data-rate 3 (DDR3)

error-correction-code

(ECC) DRAM

(Combined control/

services/data planes)

NA

Maximum memory

DDR3 ECC DRAM

(Combined   control/

services/data planes)

NA

Default memory

DDR3 ECC DRAM

(data plane)

2 GB

Maximum memory

DDR3 ECC DRAM

(data plane)

2 GB

Default memory

DDR3 ECC DRAM

(control/services plane)

4 GB

Maximum memory

DDR3 ECC DRAM

(control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots

(type A)

2

USB console port -type

B mini (up to 115.2 kbps)

1

Serial console

port - RJ45

(up to 115.2 kbps)

1

Serial auxiliary

port - RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

Internal: AC, DC, and PoE

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range,

AC power supply

(maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power

(no modules) (watts)

65

Maximum power with

AC power supply (watts)

250 (no PoE)

Maximum power with

PoE power supply

(platform only)   (watts)

500 with PoE redundant

Maximum endpoint PoE

power available from

PoE power   supply

(watts)

250 W with optional redundancy



The Modules, Cards, Licenses & Accessories

Table 3 shows some recommended modules, cards, licenses and several cables.



Items

Models

Descriptions

Console

and

Auxillary

Cables

CAB-AUX-RJ45

Cisco   CAB-AUX-RJ45 Auxiliary Cable 8ft with

RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco   Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco   CAB-CONSOLE-RJ45 Console Cable 6ft

with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco   CAB-CONSOLE-USB Console Cable 6 ft

with USB Type A and mini-B

Licenses

L-SL-44-APP-K9=

Cisco ISR 4431/4451 AppX license

L-SL-44-APP-K9= with   WAAS/vWAAS

1300/2500 conns RTU

Network

Interface

Modules

NIM-1MFT-T1/E1

Cisco   Fourth-Generation Multiflex Trunk Voice

and WAN network interface module

NIM-2CE1T1-PRI

Cisco   Multiflex Trunk Voice and WAN network

interface module

NIM-4E/M

Analog   voice network interface card

(ear and mouth)

NIM-2FXS

Cisco   Analog voice network interface card

NIM-2FXS

NIM-2FXS/4FXO

Cisco   Analog voice network interface card

NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco   Fourth-Generation Multiflex Trunk Voice

and WAN network interface module

SFPs for

On-Board

GE Ports

GLC-SX-MMD

Cisco   GLC-SX-MMD 1000BASE-SX SFP

transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco   GLC-LH-SMD 1000BASE-LX/LH SFP

transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco   GLC-ZX-SMD 1000BASE-ZX SFP

transceiver module, SMF, 1550nm, DOM
