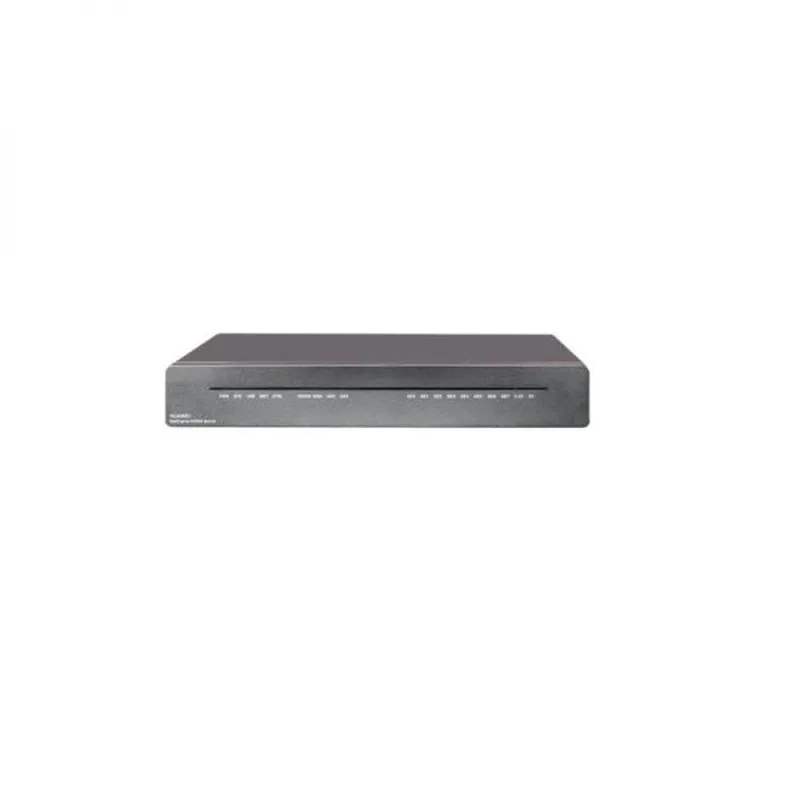

AR651W

Item

Specification

Installation type

·           Rack

·           Work bench

·           Against the wall

Dimensions

Without packaging

(H x W x D) [mm(in.)]

Basic dimensions:

44.0mm x 300.0 mm x 220.3 mm

 (1.73 in. x 11.8 in. x 8.67 in.)

Maximum dimensions:

44.0 mm x 300.0 mm x 224.7 mm

(1.73 in. x 11.8 in. x 8.85 in.)

Dimensions with

packaging (H x W x D)

[mm(in.)]

110 mm x 435 mm x 360 mm

(4.33 in. x 17.13 in. x 14.17 in.)

CPU

1.4 GHz, 4 Cores

Memory

2 GB

NAND Flash

1 GB

Console port

RJ45

RTC

Supported

Maximum power

consumption [W]

42 W

Power supply

 mode

AC external

Number of

power modules

1

Rated input

voltage [V]

100 V to 240 V, 50 Hz/60 Hz

Input voltage

range [V]

90 V to 264 V, 47 Hz to 63 Hz

Maximum input

current [A]

1.5 A

Maximum output

 power [W]

60 W

Type of fans

Built-in

Number of

fan modules

0

Heat dissipation

mode

Air cooling

(standard configuration)

Redundant

power supply

Not supported

PoE

Not supported

Noise at normal

Temperature

(acoustic power)

 [dB(A)]

49.7 dB(A)

Long-term

Operating

temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m

(5906 ft.-16404.2 ft.), the   highest operating

temperature reduces by 1°C (1.8°F)   every

 time the altitude increases by 220 m (722 ft.).

Storage

temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term

operating relative

 humidity [RH]

5% to 95%, noncondensing

Long-term

operating altitude

[m(ft.)]

< 5000 m (16404.2 ft.)
