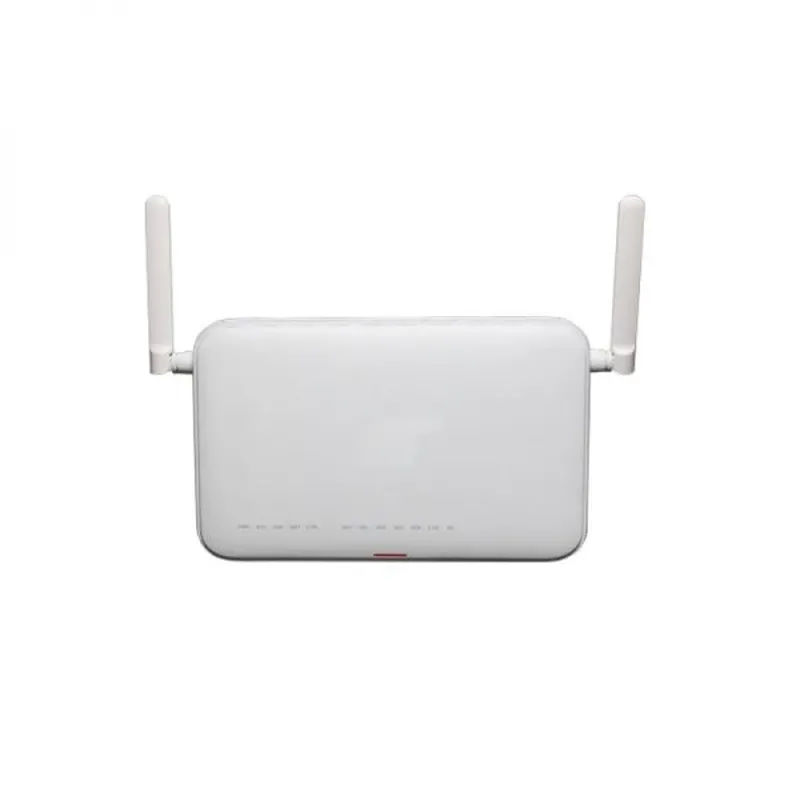

AR611W

Item

Specification

Installation type

·           Work bench

·           Against the wall

Dimensions

Without packaging

(H x W x D) [mm(in.)]

Basic dimensions:

38.0 mm x 240.0 mm x 161.5 mm

 (1.50 in. x 9.45 in. x 6.36 in.)

Maximum dimensions:

41.4 mm x 278.6 mm x 161.5 mm

(1.63 in. x 10.97 in. x 6.36 in.)

Dimensions with

packaging (H x W x D)

[mm(in.)]

90 mm x 370 mm x 297 mm

(3.54 in. x 14.57 in. x 11.69 in.)

CPU

1.1 GHz, 2 Cores

Memory

1 GB

NAND Flash

1 GB

Console port

RJ45

RTC

Supported

Maximum power

consumption [W]

12 W

Power supply

 mode

AC external

Number of

power modules

1

Rated input

voltage [V]

100 V to 240 V, 50 Hz/60 Hz

Input voltage

range [V]

90 V to 270 V, 45 Hz to 65 Hz

Maximum input

current [A]

0.8 A

Maximum output

 power [W]

24 W

Type of fans

None

Number of

fan modules

0

Heat dissipation

mode

Natural heat dissipation

Redundant

power supply

Not supported

PoE

Not supported

Noise at normal

Temperature

(acoustic power)

 [dB(A)]

0 (Natural heat dissipation)

Long-term

Operating

temperature [°C(°F)]

0°C to 40°C (32°F to 104°F)

NOTE:

When the altitude is 1800 m-5000 m

(5906 ft.-16404.2 ft.), the   highest operating

temperature reduces by 1°C (1.8°F)   every

 time the altitude increases by 220 m (722   ft.).

Storage

temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term

operating relative

 humidity [RH]

5% to 95%, noncondensing

Long-term

operating altitude

[m(ft.)]

< 5000 m (16404.2 ft.)
