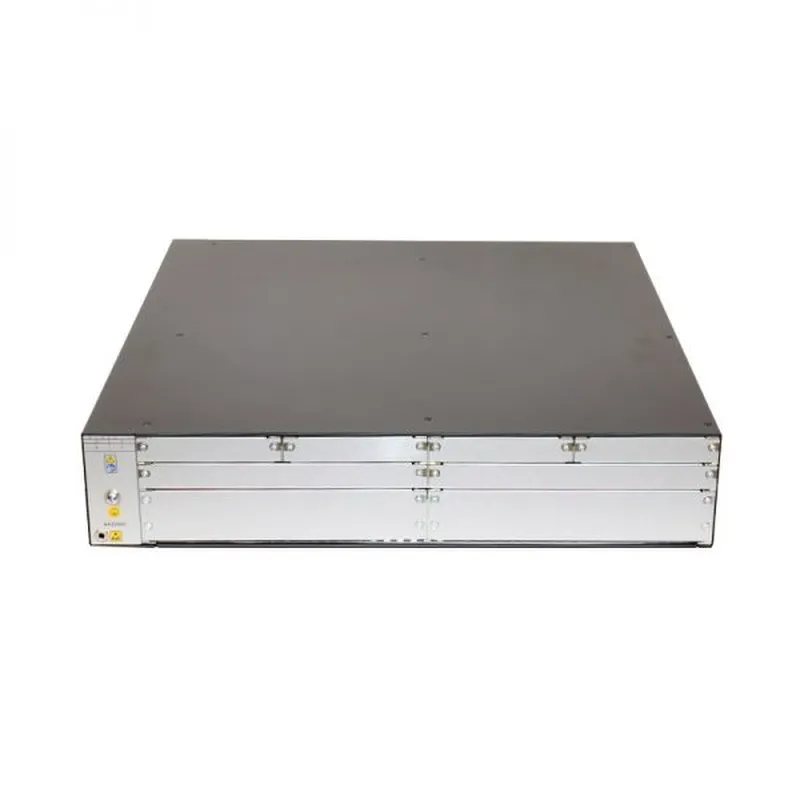

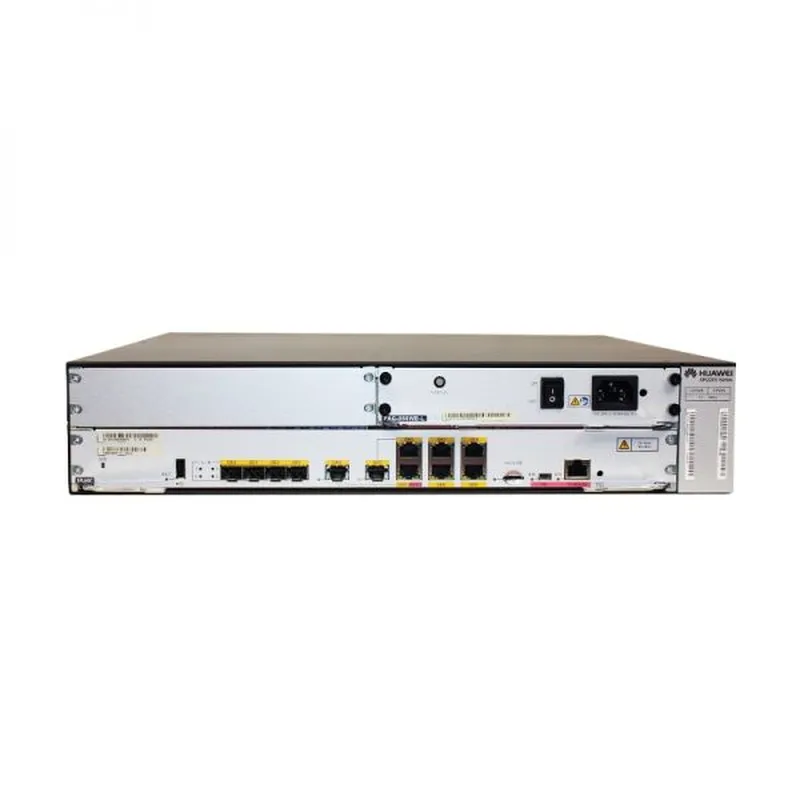

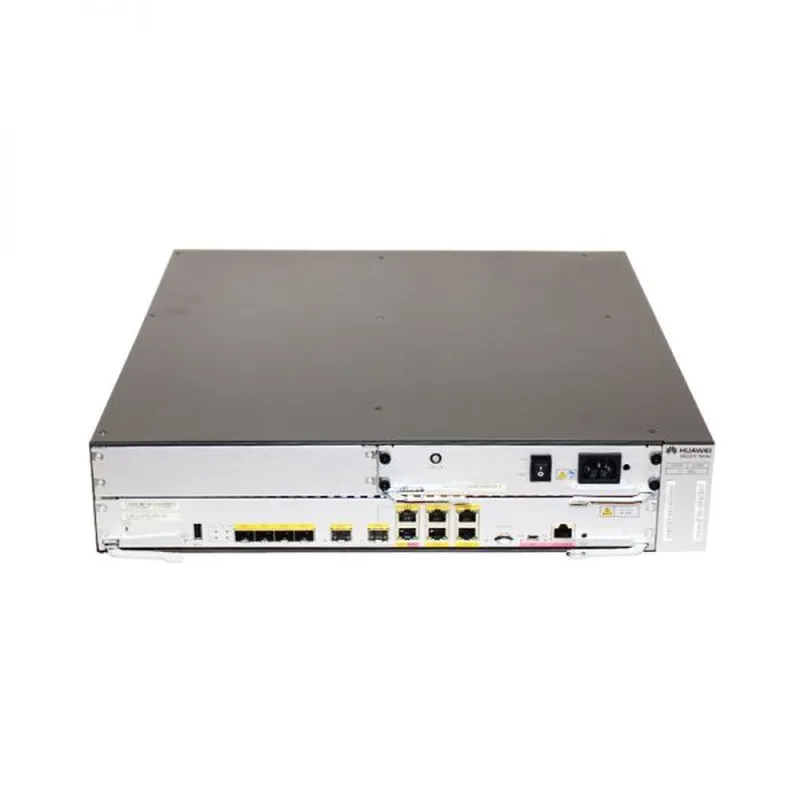

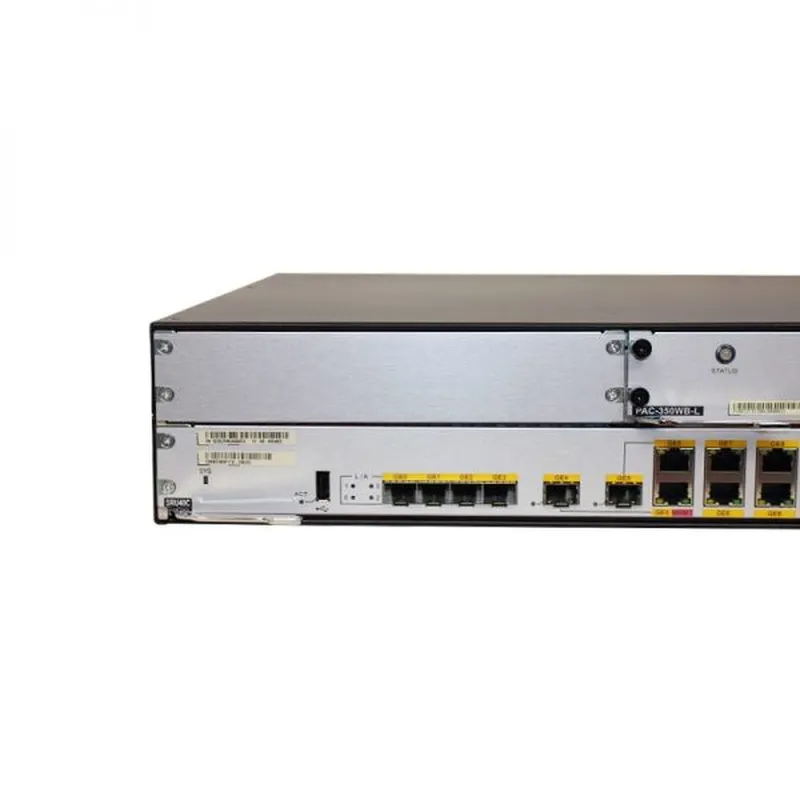

AR2240C Overview
AR2240C router reduces equipment and deployment costs due to integrated
routing, switching, 3G, voice, and security functions in a single device. At the
same time, the router provide enterprises with flexible access and rich
interfaces to adapt to a variety of terminals.
AR2240C Specification | |
WAN Speed with Services*** | 1 Gbit/s |
Firewall Performance (large packets) | 6 Gbit/s |
Number of recommended users | 500 |
Fixed WAN Ports | 4 x GE + 4 x GE SFP + 2 x GE Combo |
SIC Slots | 4 |
WSIC Slots (default/max**) | 2/4 |
XSIC Slots (default/max**) | 2/4 |
EXSIC Slot (shared with XSIC slots) | 1 |
DSP Slots | 0 |
USB 2.0 Ports | 1 |
Mini-USB Ports | 1 |
Console Port | 1 |
Memory | 2 GB |
Flash | 2 GB/8 GB |
Maximum Power | 350W (Single Power Module) 700W (Dual Power Module) |
Redundant Power Supply | Internal: AC, DC |
AC Power | 100V to 240V |
Frequency | 50 Hz/60 Hz |
DC Power | - |
Dimensions (height x width x depth) | 88.1 mm x 442 mm x 470 mm |
Weight | 4.95 kg (without power module and interface card) |
Ambient Temperature | 0°C to 45°C |
Relative Humidity | 5% to 95% (non-condensing) |
The Modules, Cards
Table 2 shows the recommended elements for the AR2240C.
Model | Description |
AC power module | |
350W AC Power Module | |
DC power module | |
350W DC Power Module | |
WAN interface card | |
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card | |
AR0MSDE11A00 | 1-Port Fractional Channelized E1/T1 WAN Interface Card |
xDSL interface card | |
1-Port VDSL2 over POTS WAN Interface Module | |
1-Port ADSL2+ ANNEX A/M WAN Interface Module | |
