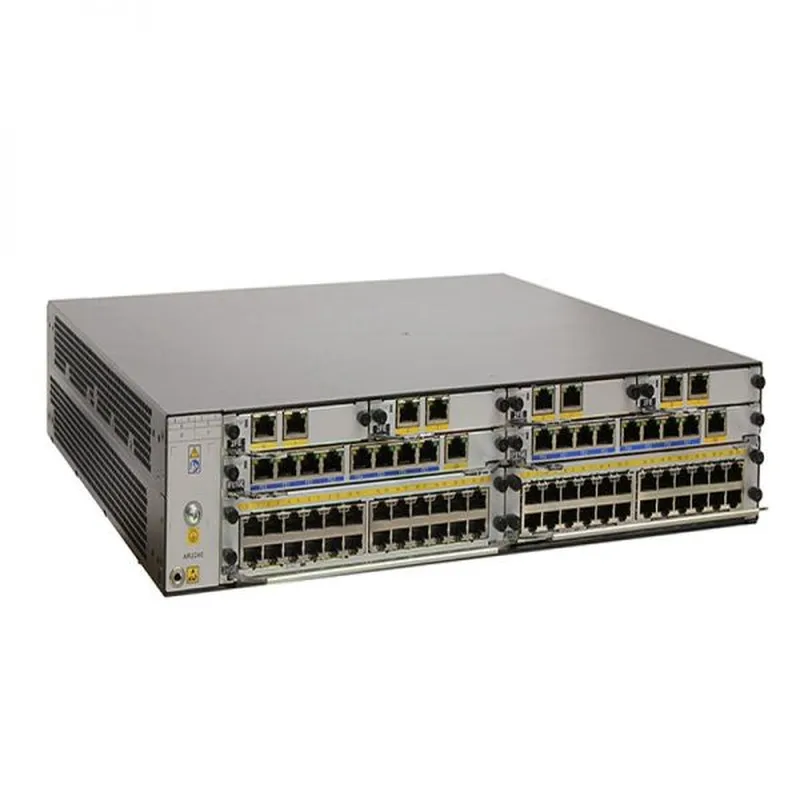

Huawei  AR2200 Series Router AR0M0024DC00

AR0M0024DC00

AR2240,Service and Router Unit 40,4 SIC,2 WSIC,2 XSIC,350W DC Power

Description

AR0M0024DC00 Overview


Huawei AR G3 AR2240 series router AR0M0024DC00 designs for mid-size

enterprise headquarters and branch office to deliver scalable and secure,

unified voice and data communications. Service and Router Unit 40 of

AR0M0024DC00 router provide up to 1Gbps system capacity,5.5Gbps

firewall performance and 80Gbps switching capacity 2 RU height with

modularity design enhance scalability and flexibility to integrate various

interface card into a single device in order to reduce the total cost of

ownership and meet current and future business needs.


AR0M0024DC00 Specification

WAN Speed with

Services***

1 Gbit/s (With SRU40)

2 Gbit/s (With SRU80)

1 Gbit/s (With SRU100E)

4.5 Gbit/s (With SRU200)

Firewall Performance

(large packets)

5.5 Gbit/s (With SRU40)

9.5 Gbit/s (With SRU80)

10 Gbit/s (With SRU100E)

15 Gbit/s (With SRU200)

Number of

recommended users

1,000

Fixed WAN Ports

SRU40: 3 x GE (2 x Combo)

SRU80: 3 x GE (2 x Combo)

SRU100E: 4 x GE Combo+ 2 x GE SFP

SRU200: 4 x GE Combo+ 2 x 10 GE SFP+

SIC Slots

4

WSIC Slots (default/max**)

2/4

XSIC Slots (default/max**)

2/4

EXSIC Slot

(shared with XSIC slots)

1

DSP Slots

0/3

USB 2.0 Ports

1/2

Mini-USB Ports

1

Console Port

1

Memory

2 GB/4 GB

Flash

(default/max**)

2 GB/8 GB

Maximum Power

350W (Single Power Module)

700W (Dual Power Module)

Redundant Power Supply

Internal: AC, DC

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC Power

-48V to -60V

Dimensions

(height x width x depth)

88.1 mm x 442 mm x 470 mm

Weight

8.95 kg (without power module and interface card)

Ambient Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)


The The Supported Cards

Table 2 shows the recommended elements for the Huawei Router

AR0M0024DC00.



Models

Description

Ethernet LAN interface card

AR-4ES2G-S

Huawei AR-4ES2G-S 4-Port 1000BASE-RJ45 L2

Ethernet Interface Card(SIC)

AR-9ES2-W

8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2

Ethernet Interface Card

AR01WEG4SB

4-Port 1000BASE-SFP-L2 Ethernet Interface Card

AR0MWMF9TT00

8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE

(RJ45)-L3 Ethernet Switch Interface Card

AR0MXEGFTA00

24-Port 10/100/1000BASE(RJ45)-L2/L3

Ethernet Switch Interface Card

Voice service card

AR-1VE1-S

1-Port VE1 Interface card

AR01SVB4XA

4-Port FXO Voice Interface Card

WAN interface card

AR-1CSTM1-W

1-Port 155M Channelized Packet over

SDH/Sonet Interface Card(WSIC)

AR-1E3T3M-W

1-Port Channelized / Unchannelized E3/T3  WAN  Interface

Card

xDSL interface card

AR01SLV1XA

1-Port VDSL2 over POTS WAN Interface Module

AR0MSLA1XA01

1-Port ADSL2+ ANNEX A/M WAN Interface   Module

xPDN interface card

AR0MSOPP2A00

1-Port GPON/EPON Dual-mode Interface Card
