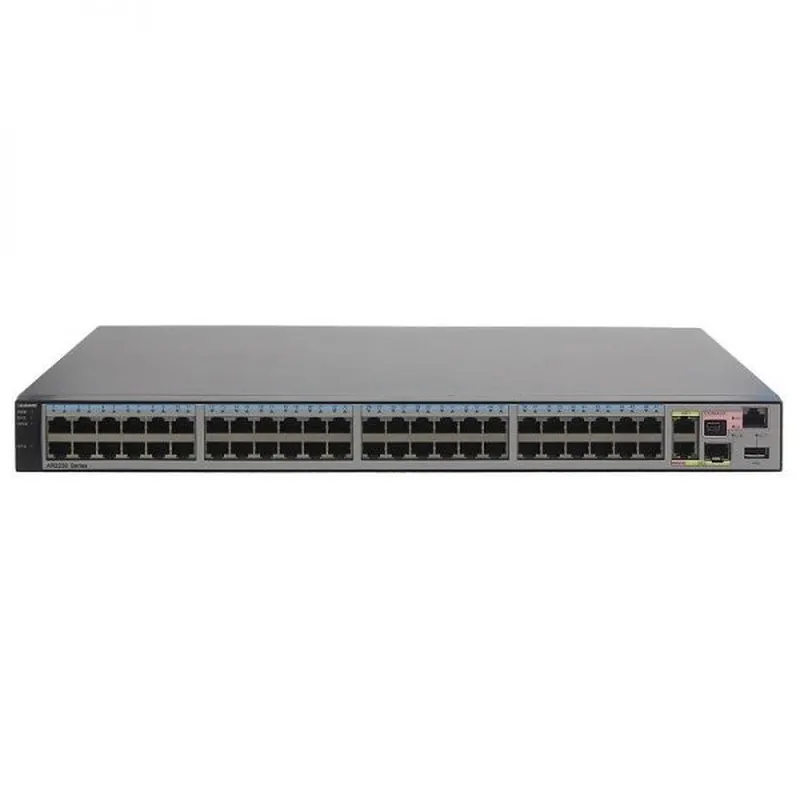

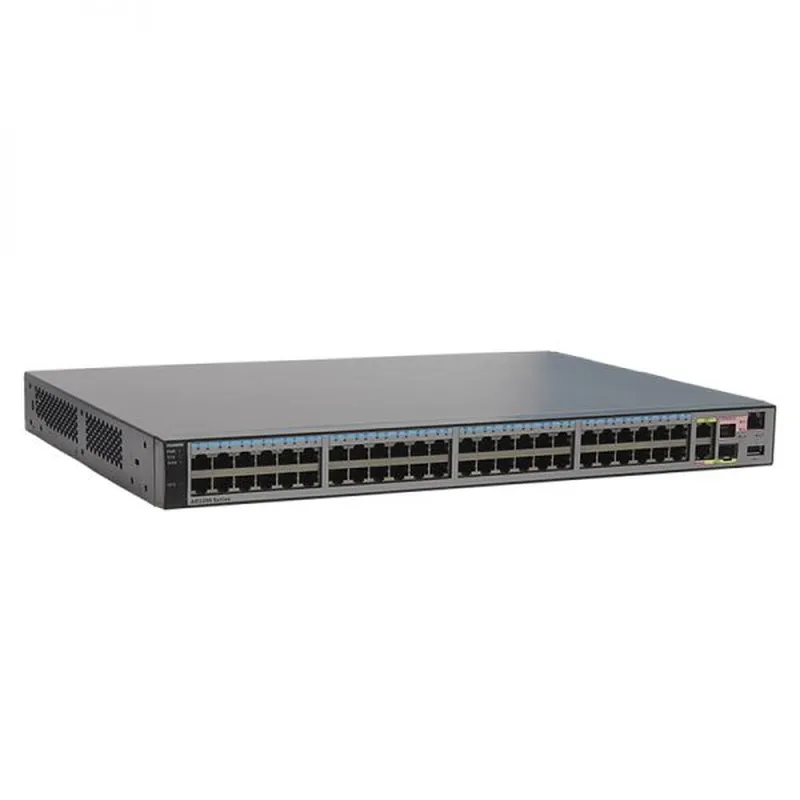

Huawei AR2200 Series Router AR2202-48FE

AR2202-48FE Overview

Huawei AR G3 AR2200 series router AR2202-48FE designs for mid-size enterprise

or branch office. It equips 2 Gigabit Ethernet (RJ-45 or SFP) WAN ports, 1 E1 ports,

1 SA ports, 1 USB, 48Fast Ethernet LAN ports. The AR2200 use the embedded

hardware encryption technique and support a voice-optimized Digital Signal

Processor (DSP). They provide firewall security, call processing, voice mail, and

other application programs. In addition, Huawei AR2202 build-in firewall and IPS

provide comprehensive security solutions include user access control, packet

detection, and active attack defense.

AR2202-48FE Specifications
Type	AR2202-48FE,2GE WAN(1GE Combo),1 E1,1 SA, 1 USB,48FE LAN,60W AC Power
Software Version	V200R003C00 and later
Dimensions (W x D x H)	442.0 mm x 314.9 mm x 43.6 mm
Memory	512 MB
Flash	512 MB
Hard disk	None
Service and Router Unit (SRU)	Not supported
Network data encryption (SM1/2/3/4) card	Not supported
Management interface	Supported
Console interface (RJ45)	Supported
Console interface (Mini USB)	Supported
USB 2.0 interface (host)	Supported
USB 2.0 interface (OTG)	None
Micro SD card (default)	Not supported
Antenna interfaces	None
Service interfaces (standard configuration)	WAN interfaces: 1 GE electrical interface and 1 GE combo interface, 1 SA interface, 1 E1 interface. LAN interfaces: 48 10/100M auto-sensing Ethernet electrical interfaces
Interface number	LAN interfaces: FE0-FE47
Extended slots	1
Power module type	Built-in AC power module
Rated voltage range	100 V AC/240 V AC, 50 Hz/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
RPS150	Supported
PoE	Not supported
Maximum PoE power for PDs	None
PoE+ interfaces	None
Weight	4.5 kg (9.92 lb)
Mounting brackets	Standard configuration
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating altitude	0-4000 m (0-13123 ft.)
Fan type	Built-in fans
Heat dissipation mode	Forcible air cooling
Installation mode	Rack mounting

The Optical Transceivers

Table 2 shows the recommended optical transceivers of the

Services Interfaces.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M, Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver ,eSFP ,100M/155M , Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)
