AR2240-S Overview

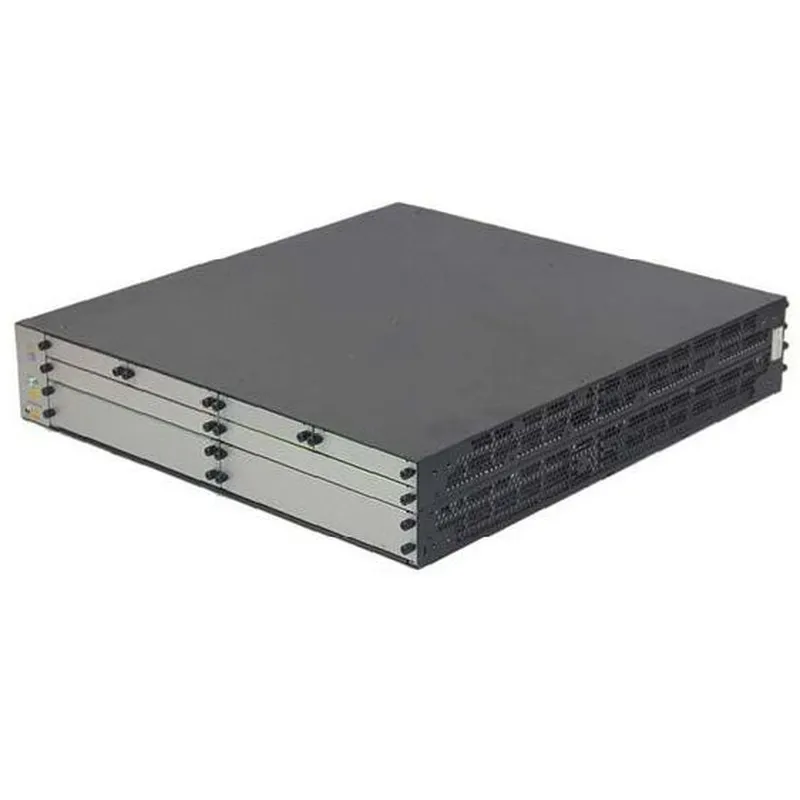

Huawei AR2240-S, AR2240-S router Integrated Chassis Components.
Router reduces equipment and deployment costs due to integrated
routing, switching, 3G, voice, and security functions in a single device.
AR2240-S Specification | |
WAN Speed with Services*** | 1 Gbit/s (With SRU40) 2 Gbit/s (With SRU80) 1 Gbit/s (With SRU100E) 4.5 Gbit/s (With SRU200) |
Firewall Performance (large packets) | 5.5 Gbit/s (With SRU40) 9.5 Gbit/s (With SRU80) 10 Gbit/s (With SRU100E) 15 Gbit/s (With SRU200) |
Number of recommended users | 1,000 |
Fixed WAN Ports | SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ |
SIC Slots | 4 |
WSIC Slots (default/max**) | 2/4 |
XSIC Slots (default/max**) | 2/4 |
EXSIC Slot (shared with XSIC slots) | 1 |
DSP Slots | 0/3 |
USB 2.0 Ports | 1/2 |
Mini-USB Ports | 1 |
Console Port | 1 |
Memory | 2 GB/4 GB |
Flash | 2 GB/8 GB |
Maximum Power | 350W (Single Power Module) 700W (Dual Power Module) |
Redundant Power Supply | Internal: AC, DC |
AC Power | 100V to 240V |
Frequency | 50 Hz/60 Hz |
DC Power | -48V to -60V |
Dimensions (height x width x depth) | 88.1 mm x 442 mm x 470 mm |
Weight | 8.95 kg (without power module and interface card) |
Ambient Temperature | 0°C to 45°C |
Relative Humidity | 5% to 95% (non-condensing) |
The Modules, Cards
Table 2 shows the recommended elements for the AR2240-S.
Model | Description |
AC power module | |
350W AC Power Module | |
DC power module | |
350W DC Power Module | |
WAN interface card | |
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card | |
AR0MSDE11A00 | 1-Port Fractional Channelized E1/T1 WAN Interface Card |
xDSL interface card | |
1-Port VDSL2 over POTS WAN Interface Module | |
1-Port ADSL2+ ANNEX A/M WAN Interface Module | |
