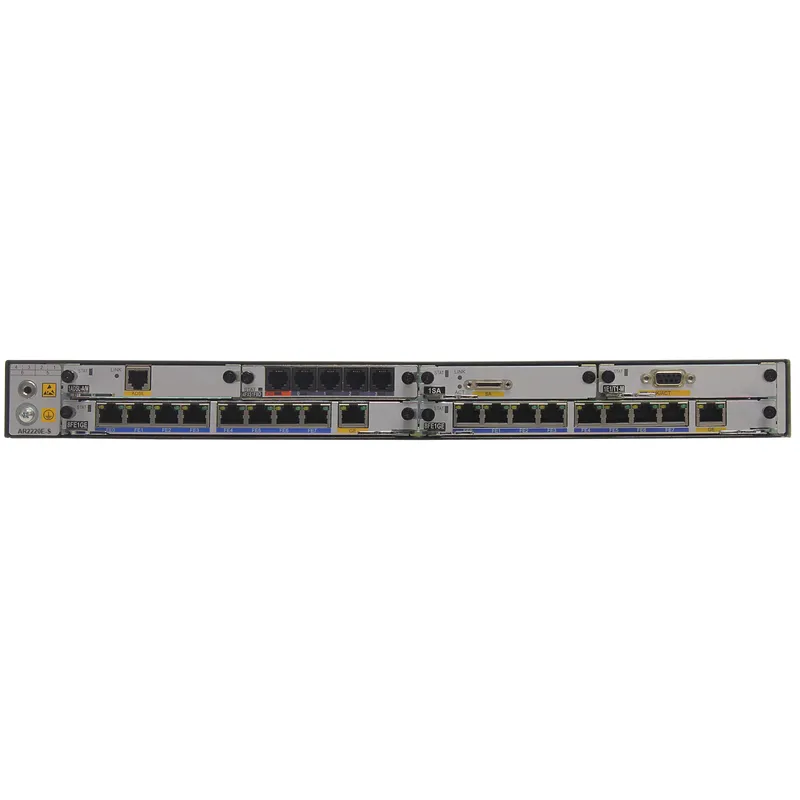

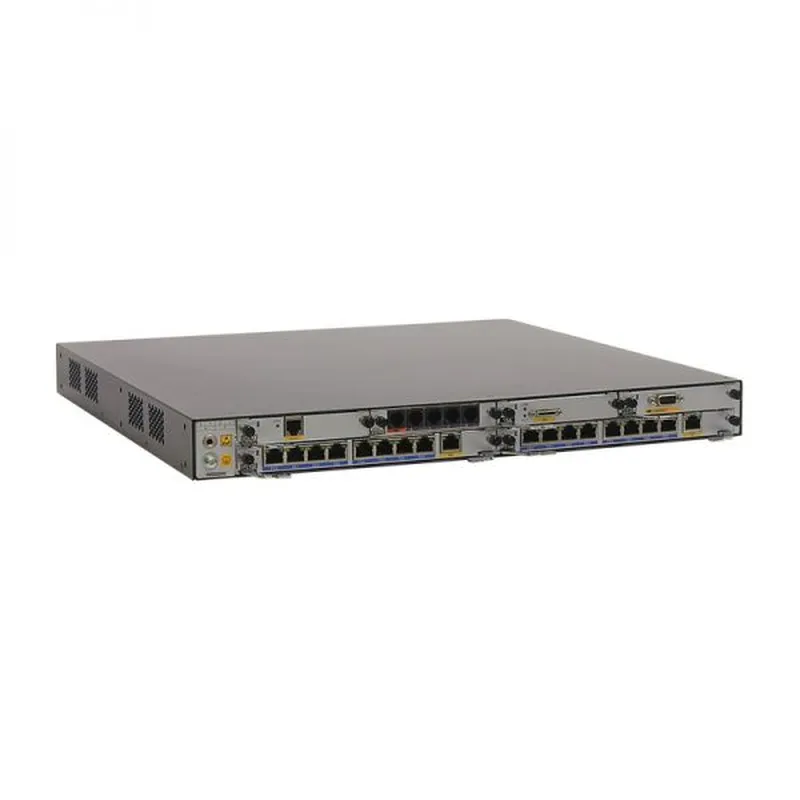

AR2220E-S

System parameters

Processor

Quad-core, 1 GHz

Memory

1 GB

Flash

512 MB

Micro SD card (default sd1)

2 GB

Hard disk

Not supported

Dimensions and weight

Dimensions (H x W x D)

·           With no mounting bracket   installed:

·           44.5 mm x 442.0 mm x 420.0 mm

·           (1.75 in. x 17.40 in. x 16.54 in.)

·           With mounting brackets installed:

·           44.5 mm x 482.6 mm x 420.0 mm

·           (1.75 in. x 19.00 in. x 16.54 in.)

Weight

6 kg (13.22 lb)

Power specifications

Rated input voltage range (AC)

100 V to 240 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V, 47 Hz to 63 Hz

Maximum input current

3 A

Maximum output power

150 W

RPS power supply

Supported

PoE power supply

Not supported

Power consumption (empty chassis)

Typical power consumption

27 W

Maximum power consumption

29 W

Heat dissipation

Fans

Built-in, unpluggable fans

Airflow (facing the front panel)

Left to right

Interface density

Management interfaces

1 (RJ45)

CON/AUX interface

1 (RJ45)

USB 2.0 interfaces

2

Service interfaces

WAN interfaces: one GE combo interface

and two GE electrical interfaces

Extended slots

·           4xSIC

·           2xWSIC

DSP DIMM slot

Supported

Environment parameters

Operating temperature

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude   is 1800 m-5000 m (5906ft.-16404.2 ft.),

the highest   operating temperature reduces by 1°C (1.8°F)

every time the   altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)

Part number

02351ATY
