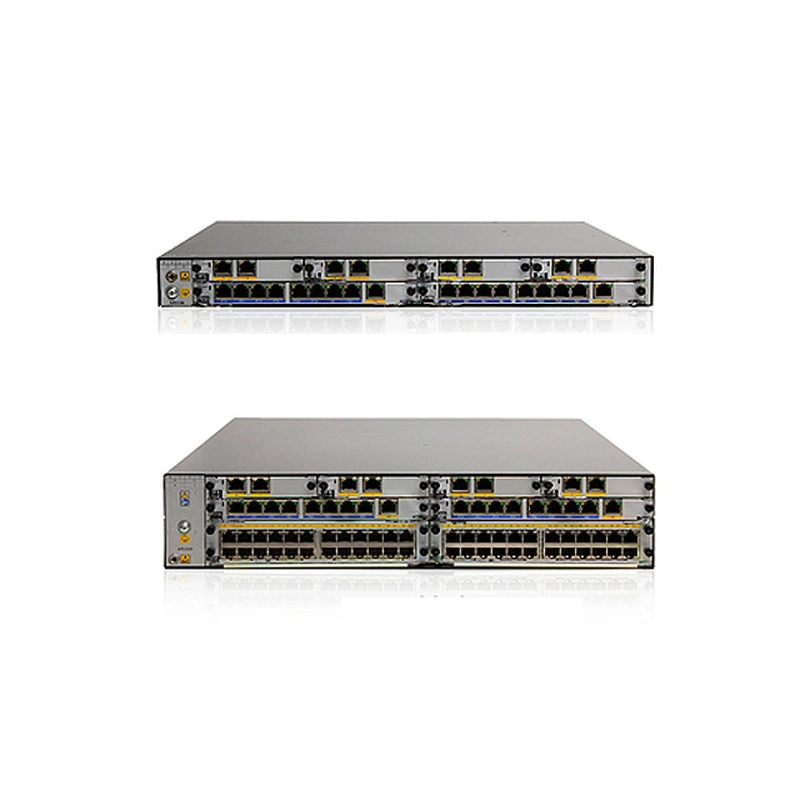

AR0M0024EA00 Overview
Huawei AR G3 AR2240 series router AR0M0024EA00 designs for mid-size
enterprise headquarters and branch office to deliver scalable and secure,
unified voice and data communications. Service and Router Unit 80 of
AR0M0024EA00 router provide up to 1.8Gbps system capacity, 9.5Gbps
firewall performance and 80Gbps switching capacity 2 RU height with
modularity design enhance scalability and flexibility to integrate various
interface card into a single device in order to reduce the total cost of
ownership and meet current and future business needs. AR0M0024EA00
of AR2240 series router equips SRU80 engine,3 Gigabit Ethernet WAN
port( RJ-45 and SFP),2 USB,4 SIC slot or 2 WSIC slots or 2 XSICs slots,3
DSP slot and AC power supply.
AR0M0024EA00 Specification | |
WAN Speed with Services*** | 1 Gbit/s (With SRU40) 2 Gbit/s (With SRU80) 1 Gbit/s (With SRU100E) 4.5 Gbit/s (With SRU200) |
Firewall Performance (large packets) | 5.5 Gbit/s (With SRU40) 9.5 Gbit/s (With SRU80) 10 Gbit/s (With SRU100E) 15 Gbit/s (With SRU200) |
Number of recommended users | 1,000 |
Fixed WAN Ports | SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ |
SIC Slots | 4 |
WSIC Slots (default/max**) | 2/4 |
XSIC Slots (default/max**) | 2/4 |
EXSIC Slot (shared with XSIC slots) | 1 |
DSP Slots | 0/3 |
USB 2.0 Ports | 1/2 |
Mini-USB Ports | 1 |
Console Port | 1 |
Memory | 2 GB/4 GB |
Flash | 2 GB/8 GB |
Maximum Power | 350W (Single Power Module) 700W (Dual Power Module) |
Redundant Power Supply | Internal: AC, DC |
AC Power | 100V to 240V |
Frequency | 50 Hz/60 Hz |
DC Power | -48V to -60V |
Dimensions (height x width x depth) | 88.1 mm x 442 mm x 470 mm |
Weight | 8.95 kg (without power module and interface card) |
Ambient Temperature | 0°C to 45°C |
Relative Humidity | 5% to 95% (non-condensing) |
The The Supported Cards
Table 2 shows the recommended elements for the Huawei Router
AR0M0024EA00.
Models | Description |
Ethernet LAN interface card | |
Huawei AR-4ES2G-S 4-Port 1000BASE-RJ45 L2 Ethernet Interface Card(SIC) | |
8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card | |
4-Port 1000BASE-SFP-L2 Ethernet Interface Card | |
8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE (RJ45)-L3 Ethernet Switch Interface Card | |
24-Port 10/100/1000BASE(RJ45)-L2/L3 Ethernet Switch Interface Card | |
Voice service card | |
1-Port VE1 Interface card | |
4-Port FXO Voice Interface Card | |
WAN interface card | |
1-Port 155M Channelized Packet over SDH/Sonet Interface Card(WSIC) | |
1-Port Channelized / Unchannelized E3 / T3 WAN Interface Card | |
xDSL interface card | |
1-Port VDSL2 over POTS WAN Interface Module | |
1-Port ADSL2+ ANNEX A/M WAN Interface Module | |
xPDN interface card | |
1-Port GPON/EPON Dual-mode Interface Card | |
