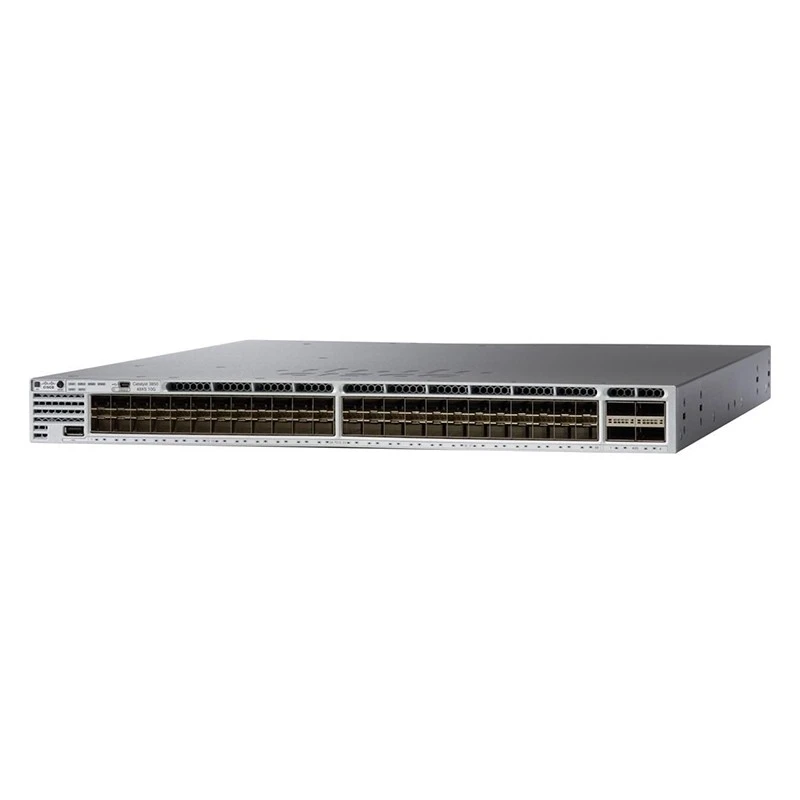

WS-C3850-48XS-S Overview
WS-C3850-48XS-S switch provides 48 ports 10Gbps SFP+ connection with upgradeable
IP base image and build in wireless controller provide fully convergence between wired
and wireless on a single platform.
WS-C3850-48XS-S Specification
WS-C3850-48XS-S Specification | |
model info: | WS-C3850-48XS-S |
enclosure type | Rack-mountable - 1U |
Ports | 48 x SFP+ ports |
Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
Available PoE Power | None |
Switching Capacity | 1280 Gbps |
Maximum stacking number | 9 |
FNF entries | 96,000 flows |
Maximum VLANs IDs | 1,000 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 8 GB |
Flash Memory | 8 GB |
Wireless | |
Number of AP per switch/stack | 100 |
Number of wireless clients per switch/stack | 2000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | Up to 40 Gbps |
Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
Power supply | PWR-C3-750WAC-R |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
Miscellaneous | |
Dimension | 4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch) |
Weight | 7.45 kg |
Rack Mounting Kit | optional |
MTBF in hours | 286,900 |
Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T |
System software / license | |
System software | IOS IP Base (Upgradable) |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Features | ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM,PIM sparse-dense mode, SSM ● Flexible Netflow |
Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● complete identity and security Management Protocol Version 3 (SNMPv3) extended IP security router ACLs ● Wireless end-to-end security |
Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-DHCP-SNOOPING-MIB ●CISCO-ENTITY-SENSOR-MIB ●CISCO-MAC-NOTIFICATION-MIB ●CISCO-OSPF-MIB ●CISCO-PAGP-MIB ●CISCO-PORT-QOS-MIB ●CISCO-PORT-STORM-CONTROL-MIB ●CISCO-PRIVATE-VLAN-MIB ●CISCO-RF-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB ●CISCO-STP-EXTENSIONS-MIB ●CISCO-UDLDP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB ●SNMP-FRAMEWORK-MIB ●SNMP-PROXY-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB |
Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
Environmental Ranges | |
With AC power supply Operating environment and altitude | |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
With DC power supply Operating environment and altitude (NEBS) | |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
Figure 1 shows the back panel of the Cisco WS-C3850-48XS-S.
Note：
①Ground connector ⑤StackWise port connector
②CONSOLE (RJ-45 console port) ⑥StackPower connector
③Fan module ⑦Power supply modules
④MGMT port
