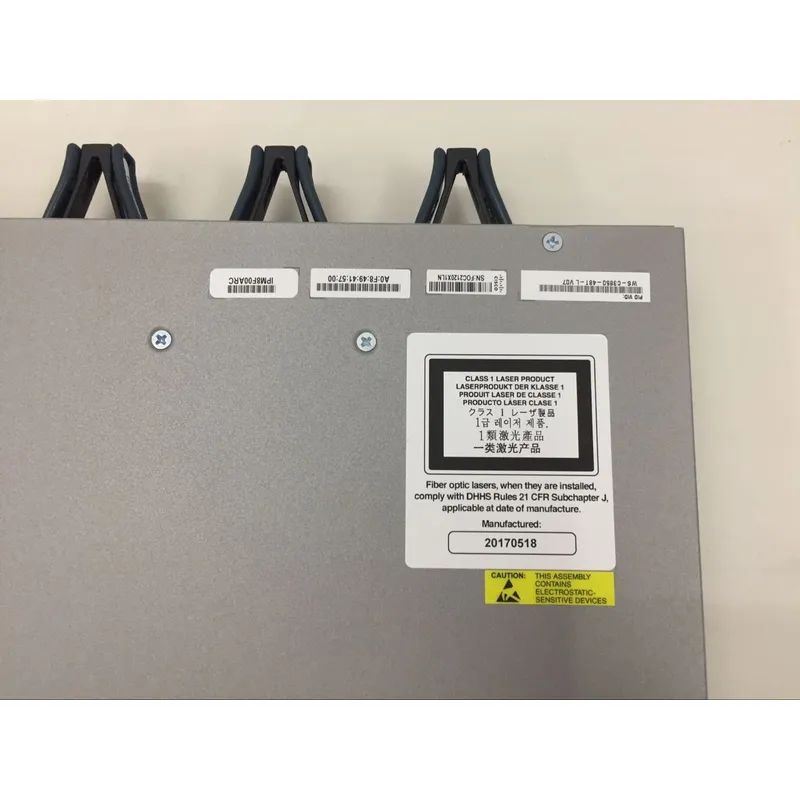

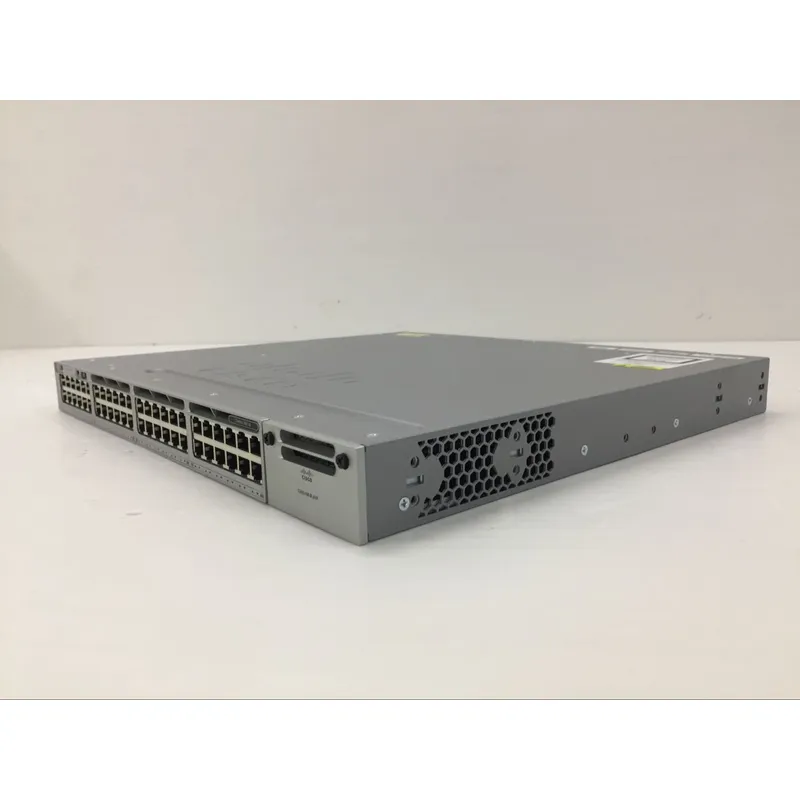

WS-C3850-48T-L Overview
Cisco Catalyst WS-C3850-48T-L is 48 Ethernet ports stackable switch with LAN base
IOS image. It is designed for access layer with upgradable IOS which offers the
flexibility for the network infrastructure.
WS-C3850-48T-L Specification
WS-C3850-48T-L Specification | |
model info: | WS-C3850-48T-L |
enclosure type | Rack-mountable - 1U |
Ports | 48 x 10/100/1000 |
Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling RJ-45-to-DB9 cable for PC connections |
Available PoE Power | None |
Switching Capacity | 176Gbps |
Maximum stacking number | up to 9 switches with same IOS feature set in same series |
Stack Bandwidth | 480Gbps |
Forwarding Performance | 130.95Mpps |
FNF (Flexible NetFlow) entries | Disabled (IP base license required) |
Maximum VLANs IDs | 255 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 2 G |
Wireless | |
Number of AP per switch/stack | 100 |
Number of wireless clients per switch/stack | 2000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 40Gbps |
Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module |
Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length |
Power supply | PWR-C1-350WAC |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 100V-240V |
Power Consumption of standalone(in Watts) | 127.24 (Max) |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 17.7 Inches (44.5 Cm) |
Height | 1.75 Inches (4.45 cm) |
Weight | 17.0 Pounds (7.7Kg) |
Rack Mounting Kit | optional |
MTBF in hours | 303,660 |
Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T |
System software / license | |
System software | IOS LAN Base (Upgradable) |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Software license | C3850-48-L-S : LAN Base to IP Base RTU paper license C3850-48-L-E: LAN Base to IP Services RTU paper license L-C3850-48-L-S: LAN Base to IP Base RTU electronic license L-C3850-48-L-E: LAN Base to IP Services RTU electronic license |
Access Point Licenses | ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) Cisco IOS Software based wireless controller (e-delivery) Cisco 3850 wireless controller (paper license) Cisco IOS Software based wireless controller (paper license) |
Features | ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) Protocol Version 3 (SNMPv3) ● Cisco standard and extended IP security router ACLs |
Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB |
Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
Environmental Ranges | |
With AC power supply Operating environment and altitude | |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
With DC power supply Operating environment and altitude (NEBS) | |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
Product Details

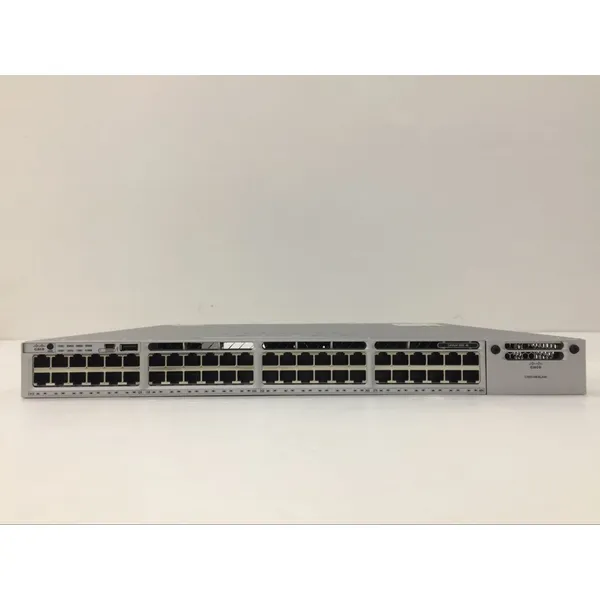

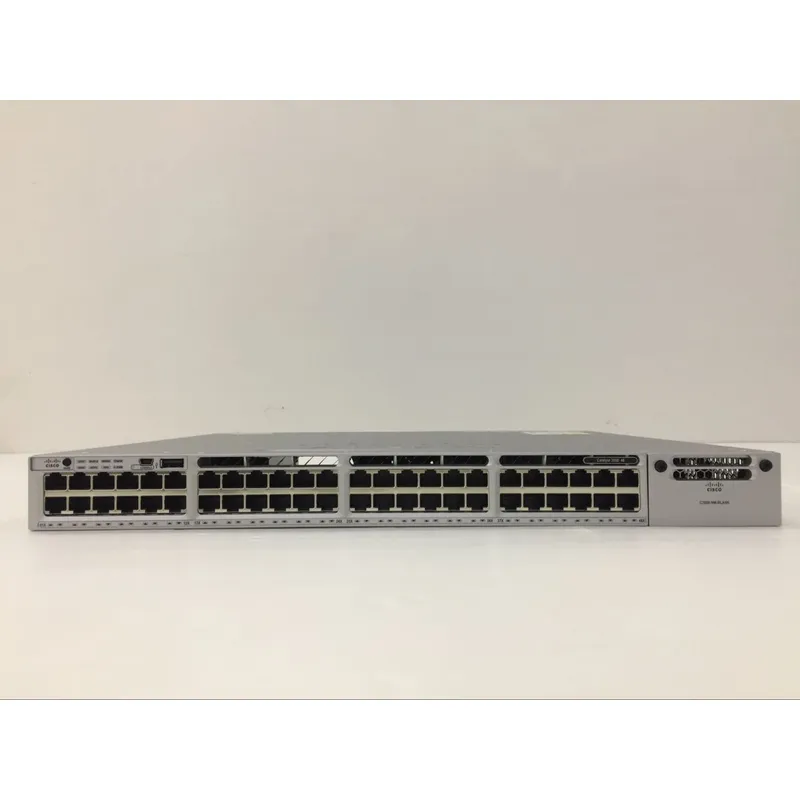

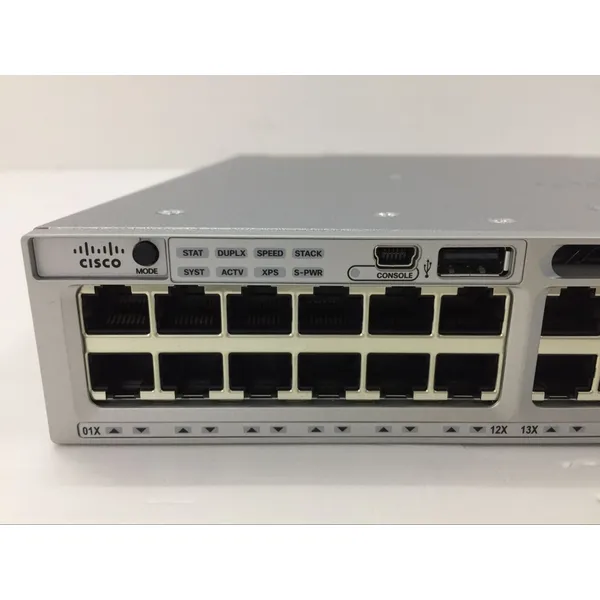

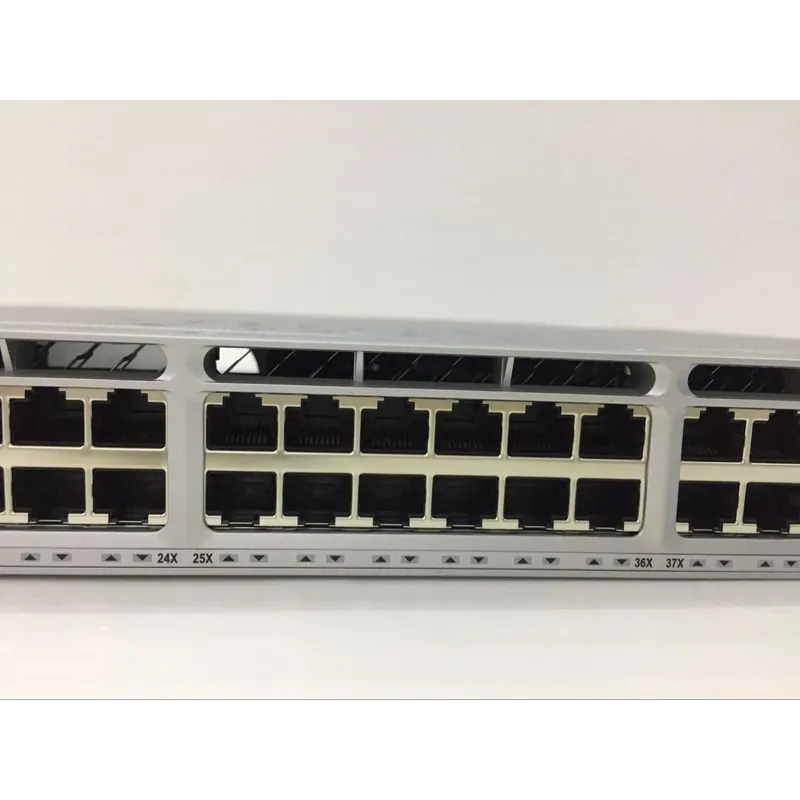

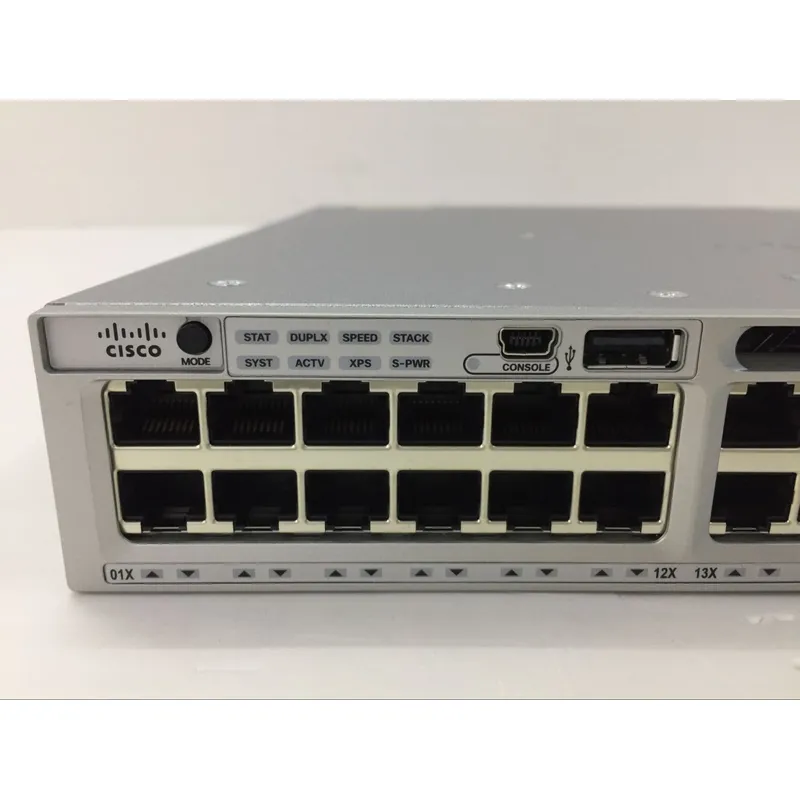

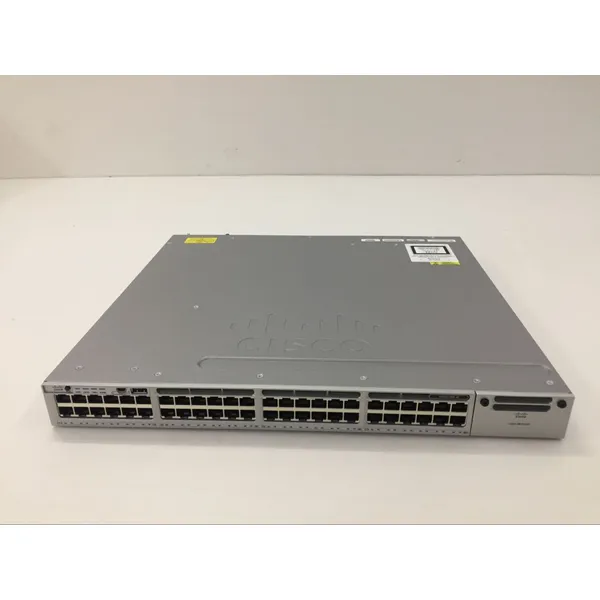

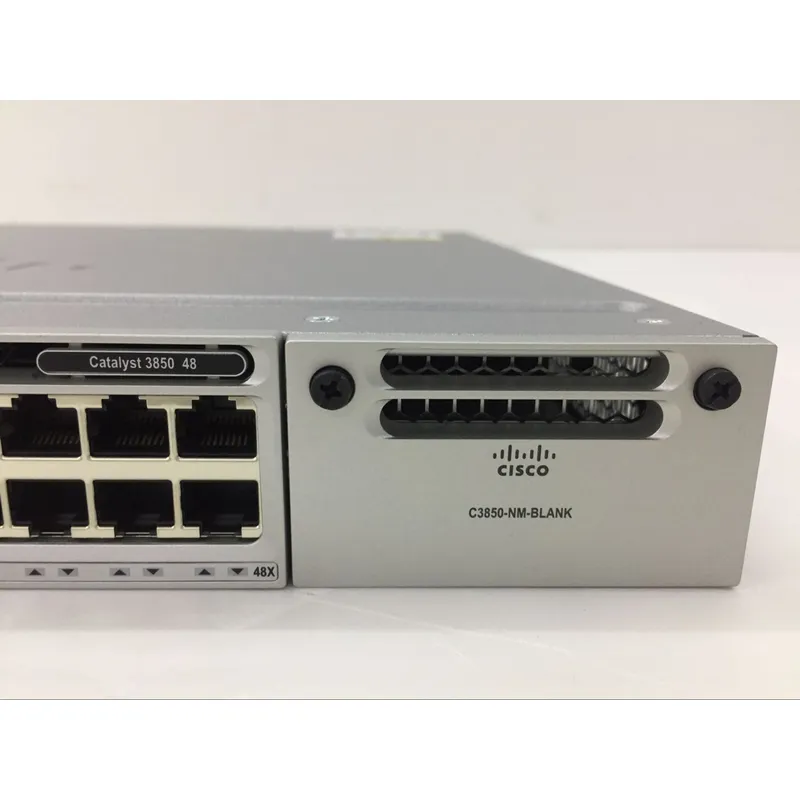

Figure 1 shows the front panel of the WS-C3850-48T-L with C3850-NM-4-1G.

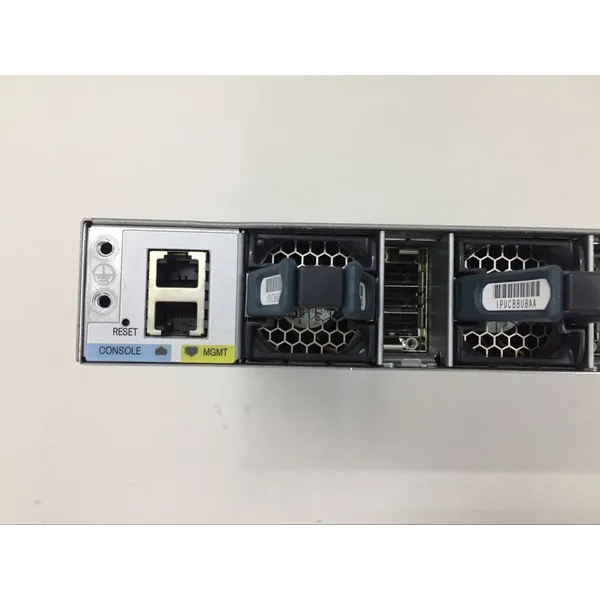

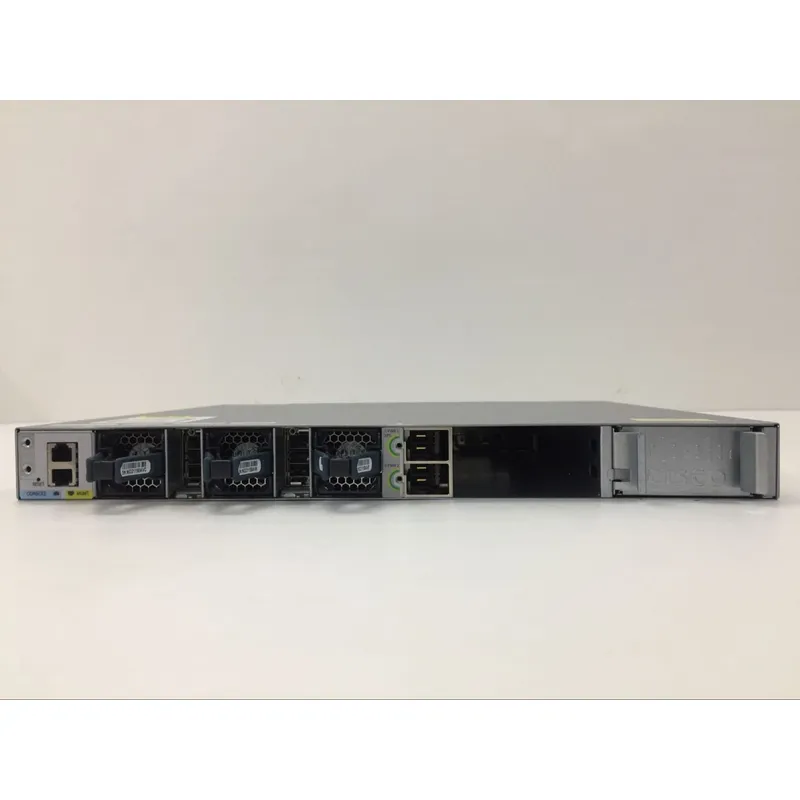

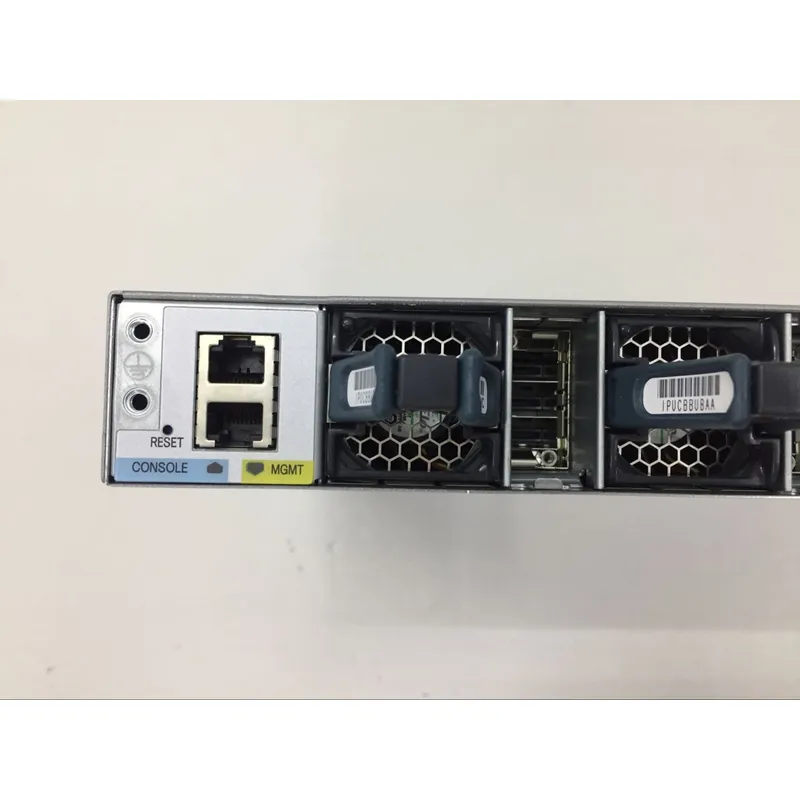

Figure 2 shows the back panel of the Cisco WS-C3850-48T-L.
Note：
①Ground connector ⑤StackWise port connector
②CONSOLE (RJ-45 console port) ⑥StackPower connector
③Fan module ⑦Power supply modules
④MGMT port
Figure 3 shows the StackWise-480 and StackPower connectors.
IP base switches can only stack with other Catalyst 3850 Series IP base, mix stack with
LAN base or IP service feature set is not supported.
The Modules, Licenses and Accessories
Table 2 shows some recommended modules,licenses and accessories of this switch.
Models | Description |
Cisco 3850 Series 4 x 1GE Network Module | |
Cisco 3850 Series 2 x 10GE Network Module | |
Cisco 3850 Series 4 x 10GE Network Module | |
L-C3850-48-S-E | C3850-48 IP Base to IP Services Electronic RTU License |
L-C3850-48-L-E | C3850-48 LAN Base to IP Services Electronic RTU License |
Cisco 3850 Series Power Supply 350W AC | |
Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply | |
Catalyst 3750X and 3850 Stack Power Cable 30 CM | |
Catalyst 3750X and 3850 Stack Power Cable 150 CM | |
Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch | |
Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
