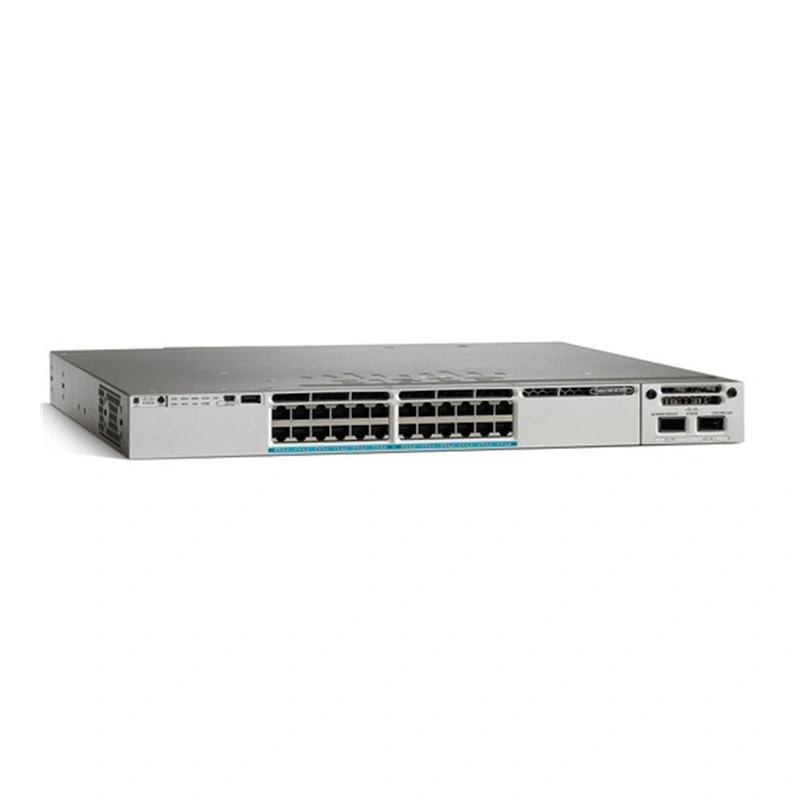

Cisco Catalyst 3850 Switch WS-C3850-24U-E

WS-C3850-24U-E

Cisco WS-C3850-24U-E supports Stackable 24 10/100/1000 Cisco UPOE ports, 1 network

module slot, 1100 W power supply and 1RU chassis.

Description

WS-C3850-24U-E Overview


Cisco WS-C3850-24U-E supports Stackable 24 10/100/1000 Cisco UPOE ports, 1 network

module slot, 1100 W power supply and 1RU chassis. Cisco Catalyst 3850 Series provides

capabilities that ideally suited to support the convergence of wired and wireless access.

The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated

Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement,

application visibility, flexibility, and application optimization. This convergence is built on

the resilience of the new and improved Cisco StackWise®-480 technology.


WS-C3850-24U-E Specification

WS-C3850-24U-E Specification

model info:

WS-C3850-24U-E

enclosure type

Rack-mountable - 1U

Ports

Stackable 24 10/100/1000 Cisco UPOE ports

Network management

Interface

  ● Ethernet management port:

     RJ-45 connectors, 4-pair   Cat-5 UTP cabling
  ● Management console port:

     RJ-45-to-DB9 cable for PC connections

Available PoE Power

800W

Maximum stacking number

up to 9 switches with same IOS feature set in same series

Stack Bandwidth

480Gbps

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP

per switch/stack

100

Number of wireless

clients per switch/stack

2000

Total number of

WLANs per switch

64

Wireless bandwidth

per switch

up to 20Gbps

Supported Aironet

AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules

Selection

C3850-NM-4-1G

C3850-NM-2-10G

Stacking cable

  ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
  ●STACK-T1-1M StackWise stacking cable with a 1.0 m length
  ●STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable

(recommended)

  ●CAB-SPWR-30CM stack power cable with a 30CM length
  ●CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-1100WAC/2=

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of

standalone(in Watts)

84.97 (max)

Miscellaneous

Dimensions (H x W x D)

1.75 x 17.5 x 19.2 inch; 4.45 x 44.5 x 48.8 cm

Rack Mounting Kit

optional

 MTBF in hours

237,310

Compliant Standards

  ● IEEE 802.1D Spanning Tree Protoco
  ● IEEE 802.1p CoS Prioritization
  ● IEEE 802.1Q VLAN
  ● IEEE 802.1s
  ● IEEE 802.1w
  ● IEEE 802.1X
  ● IEEE 802.1X-Rev
  ●IEEE 802.11
  ● IEEE 802.1ab (LLDP)
  ● IEEE 802.3ad
  ● IEEE 802.3x full duplex on 10BASE-T,

    100BASE-TX, and 1000BASE-T ports

  ● IEEE 802.3 10BASE-T
  ● IEEE 802.3u 100BASE-TX
  ● IEEE 802.3ab 1000BASE-T
  ● IEEE 802.3z 1000BASE-X
  ● RMON I and II standards
  ● SNMP v1, v2c, and v3

System software / license

System software

IOS IP Services

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Features

●RPS Support ● Jumbo   Frames ● VLANS ●Voice   Vlan

●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and   PAgP

● PVST/PVST+ ● 802.1W/802.1S ●Port   Fast/Uplink Fast

●Dynamic Trunking Protocol (DTP) ● port   CoS Trust

and Override ● Trusted Boundary ● ACL   Classification

●ingress Policing ● Auto QoS ● Per   VLAN policies

● 802.1p   queues ● Scheduling ● Priority   Queuing

● Configure CoS Priority Queues ●Configure CoS   Priority

Queues ● Configure Queue   Weights

● Configure Buffers and Thresholds ●Class & Policy   Maps

● Modify CoS and DSCP Mapping ● Weighted Tail   Drop

● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP   server

● DSCP transparency ● HSRP, VRRP, BLGP

● RIPv1, v2 EIGRP,   PIM  OSPF, OSPFv3, EIGRPv6, BGPv4,IS-ISv4

● VRF-lite  ● PIM-SM/DM,

PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network

security

  ● Port security ● DHCP snooping ●Dynamic   ARP inspection (DAI)

  ● IP source guard ●The Unicast Reverse   Path Forwarding (uRPF)
  ● Bidirectional data support on a SPAN ● User authentication
  ● Private VLAN  ●Router and VLAN   ACLs

  ● complete identity and security
  ● Multidomain authentication ● MAC address notification
  ● IGMP filtering ● Cisco security VLAN ACL
  ● Secure Shell (SSH) Protocol, Kerberos,

    and Simple Network Management  Protocol Version 3 (SNMPv3)
  ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
  ● TACACS+ and RADIUS authentication

  ● Cisco standard and extended IP security router ACLs
  ●  Bridge protocol data unit (BPDU) Guard
  ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Management

  ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
  ●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
  ●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
  ●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
  ●CISCO-CIRCUIT-INTERFACE-MIB
  ●CISCO-ENTITY-VENDORTYPE-OID-MIB
  ●CISCO-CONTEXT-MAPPING-MIB
  ●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
  ●CISCO-EIGRP-MIB
  ●CISCO-EMBEDDED-EVENT-MGR-MIB
  ●CISCO-ENTITY-FRU-CONTROL-MIB  ● CISCO-ENTITY-SENSOR-MIB
  ●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
  ●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
  ●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
  ●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
  ●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
  ●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
  ●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
  ●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
  ●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
  ●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
  ●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
  ●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
  ●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
  ●CISCO-PORT-SECURITY-MIB

  ●CISCO-PORT-STORM-CONTROL-MIB
  ●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
  ●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
  ●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
  ●CISCO-SMART-INSTALL-MIB

  ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
  ●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
  ●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
  ●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB

  ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB
  ●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
  ●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
  ●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
  ●LLDP-MIB ●NOTIFICATION-LOG-MIB
  ●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
  ●POWER-ETHERNET-MIB ●RMON2-MIB
  ●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
  ●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
  ●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
  ●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
  ●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
  ●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
  ●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
  ●CISCO-LWAPP-CLIENT-ROAMING-MIB
  ●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
  ●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
  ●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
  ●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
  ●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
  ●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
  ●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
  ●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
  ●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
  ●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support

and Services

● Cisco SMARTnet Service ● Cisco Smart   Foundation Service

● Cisco SP Base Service ● Cisco   Focused Technical Support Services

Environmental Ranges

With AC power supply Operating environment and altitude

Operating temperature

up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature

up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at

sealevel with single fan

failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up

to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up

to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

With DC power supply Operating environment and altitude (NEBS)

Operating temperature up

to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up

to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up

to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up

to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC)

Short-term exception up

to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC)

Short-term exception up

to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at

sealevel with single fan

failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

 -40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 13,000 Feet (Up to 4000 Meters)

Storage altitude

Up to 15,000 Feet (Up to 4573 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing



Figure 1 shows the back panel of the Cisco WS-C3850-24U-E.



Note:


① Ground connector      ② CONSOLE (RJ-45 console port)      ③ StackWise port connector


 ④ StackPower connector      ⑤ Power supply modules


⑥ Fan module      ⑦ MGMT port      ⑧ Reset Button


Figure 2 shows the StackWise-480 and StackPower connectors.

This switch with LAN Base feature set can only stack with other Catalyst 3850 Series

LAN Base switches.



The Modules

Table 2 shows some recommended modules of this switch.

Models

Description

C3850-NM-4-1G

Cisco 3850 Series 4 x 1GE Network Module

C3850-NM-2-10G

Cisco 3850 Series 2 x 10GE Network Module

C3850-NM-BLANK

Cisco 3850 Series Blank Network Module

PWR-C1-1100WAC


Cisco 3850 Series Secondary Power Supply 1100W AC Config 1 Secondary Power

 Supply
