WS-C3850-12S-S Overview
Cisco Catalyst WS-C3850-12S-S is the next generation enterprise-level stackable switch
that is integrated with 12 SFP ports in IP base feature set.
WS-C3850-12S-S Specification
WS-C3850-12S-S Specification | |
model info: | WS-C3850-12S-S |
enclosure type | Rack-mountable - 1U |
Ports | 12 x SFP ports |
Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling RJ-45-to-DB9 cable for PC connections |
Available PoE Power | None |
Switching Capacity | 68Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 480Gbps |
Forwarding Performance | 68.4Mpps |
FNF entries | 48,000 flows |
Maximum VLANs IDs | 1,000 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 2 G |
Wireless | |
Number of AP per switch/stack | 100 |
Number of wireless clients per switch/stack | 2000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 20Gbps |
Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module |
Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length |
Power supply | PWR-C1-350WAC |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 100V-240V |
Power Consumption of standalone(in Watts) | 109.75 (Max) |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 17.7 Inches (45.0 cm) |
Height | 1.75 Inches (4.45 cm) |
Weight | 15.48 Pounds (7.02 Kg) |
Rack Mounting Kit | optional |
MTBF in hours | 315,840 |
Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T |
System software / license | |
System software | IOS IP Base (Upgradable) |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Software license | ●C3850-12-S-E: IP Base to IP Services RTU paper license ●L-C3850-12-S-E: IP Base to IP Services RTU electronic license |
Access Point Licenses | ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) 3850 wireless controller (paper license) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
Features | ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF,OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM,PIM sparse-dense mode, SSM ● Flexible Netflow |
Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● User authentication ● complete identity and security and Simple Network Management Protocol Version 3 (SNMPv3) ● Cisco standard and extended IP security router ACLs ● Wireless end-to-end security |
Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-DHCP-SNOOPING-MIB ●CISCO-ENTITY-SENSOR-MIB ●CISCO-FLOW-MONITOR-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB ●CISCO-MAC-NOTIFICATION-MIB ●CISCO-OSPF-MIB ●CISCO-PAGP-MIB ●CISCO-PORT-QOS-MIB ●CISCO-PORT-STORM-CONTROL-MIB ●CISCO-PRIVATE-VLAN-MIB ●CISCO-RF-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB ●CISCO-STP-EXTENSIONS-MIB ●CISCO-UDLDP-MIB ●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB ●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB ●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB ●SNMP-FRAMEWORK-MIB ●SNMP-PROXY-MIB ●CISCO-LWAPP-DOT11-MIB ●CISCO-LWAPP-LINKTEST-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB |
Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
Environmental Ranges | |
With AC power supply Operating environment and altitude | |
Operating temperature up to 5000 ft(1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
With DC power supply Operating environment and altitude (NEBS) | |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
Product Details

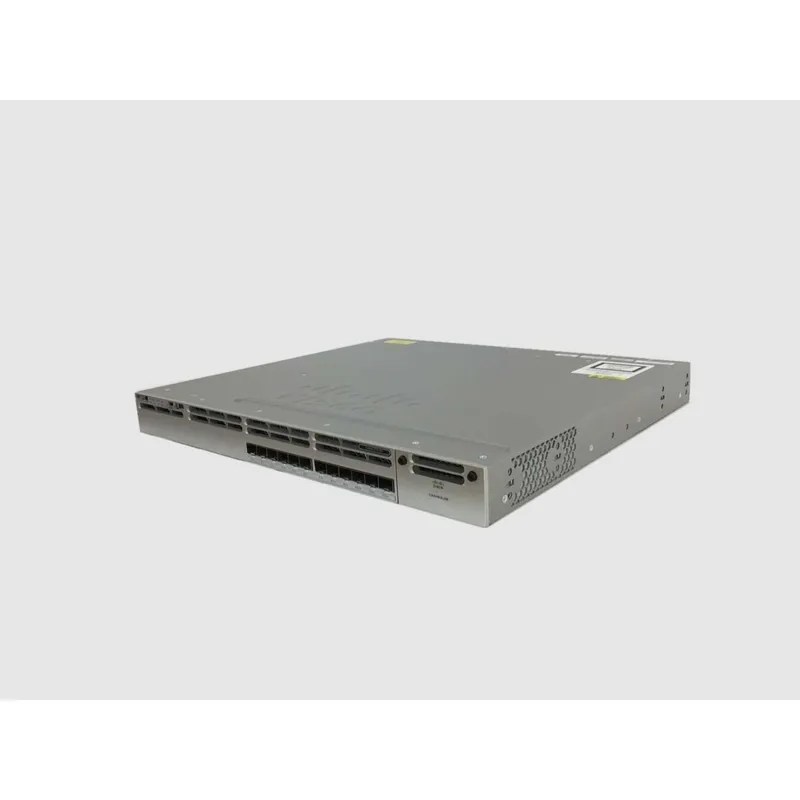

Figure 1 shows the front panel of the Cisco 3850 series 12 ports switch.
Note：
① UID (blue beacon) ② Mode button ③ Status LEDs
④ USB mini-Type B (console) port ⑤ USB Type A storage port
⑥ 12 ports of SFP ⑦ Network SFP uplink module slot
·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system),
ACTV (active) and S-PWR (Stack Power).
·The switch supports one hot-swappable network module that provides uplink ports
to connect to other devices. The switch should only be operated with either a network
module or a blank module installed.

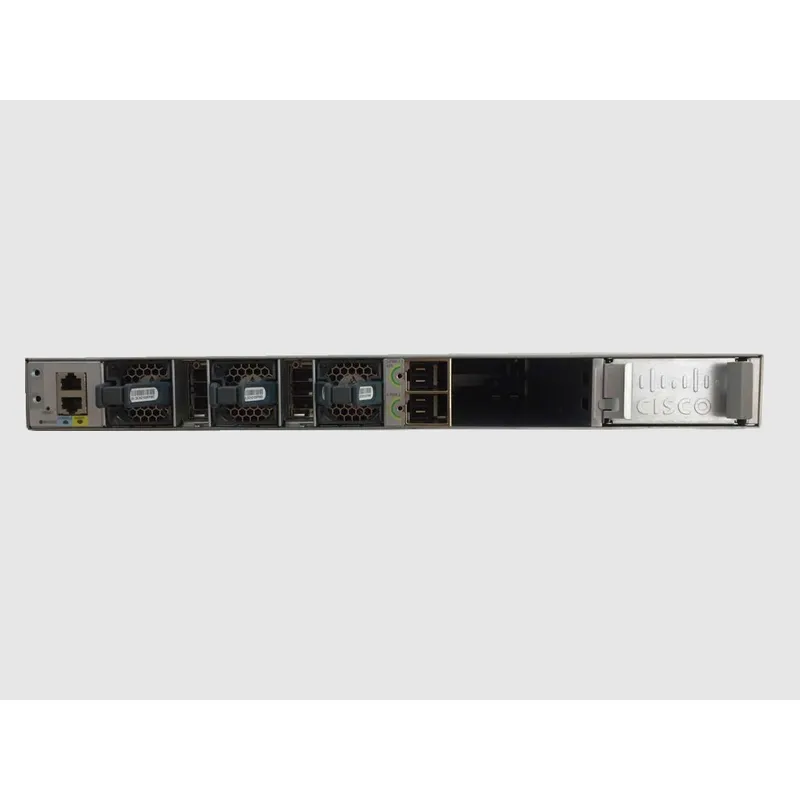

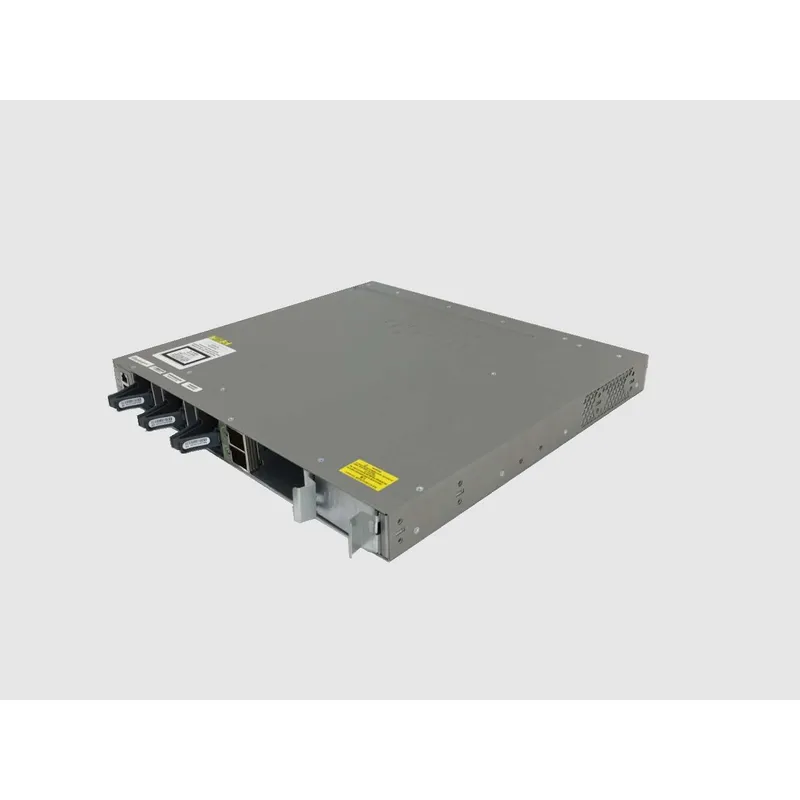

Figure 2 shows the back panel of the Cisco WS-C3850-12S-S.
Note：
① Ground connector ② CONSOLE (RJ-45 console port) ③ StackWise port connector
④ StackPower connector ⑤ Power supply modules
⑥ Fan module ⑦ MGMT port ⑧ Reset Button
Figure 3 shows the StackWise-480 and StackPower connectors.
In order to stacking with LAN base feature set, WS-C3850-12S-S needs to configure in LAN
base mode from CLI.
The Modules, Licenses and Accessories
Table 2 shows some recommended modules,licenses and accessories of this switch.
Models | Description |
Cisco 3850 Series 4 x 1GE Network Module | |
Cisco 3850 Series 2 x 10GE Network Module | |
Cisco 3850 Series Blank Network Module | |
L-C3850-12-S-E | C3850-12 IP Base to IP Services Electronic RTU License |
Cisco 3850 Series Power Supply 350W AC | |
Cisco 3850 Series Secondary Power Supply 350W AC Config1 Secondary Power Supply | |
Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch | |
Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
