Cisco Catalyst 8500 Series Edge Platforms Series C8500L-8S4X

C8500L-8S4X

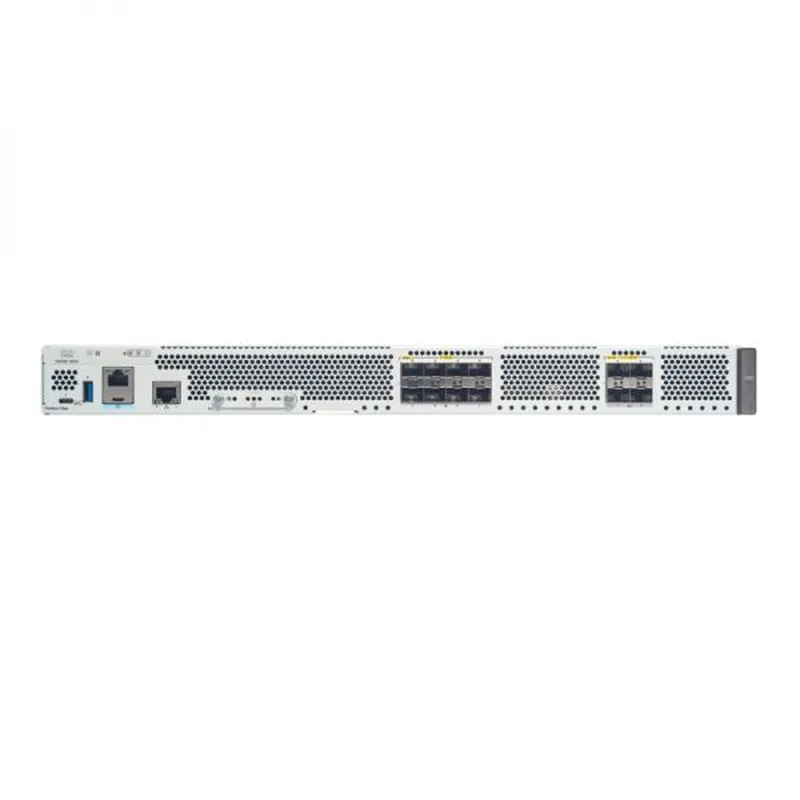

Cisco C8500L-8S4X Edge Platform

Description

C8500L-8S4X Overview


Cisco Catalyst 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L)

with Cisco IOS XE SD-WAN Software deliver Cisco’s secure, cloud-scale

SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms

feature the all-new third-generation Cisco Quantum Flow Processor (QFP),

the Catalyst 8500 Series Edge Platforms are built for services from the ground

up. The Catalyst 8500L Edge Platform features an x86 based platform

architecture that is purpose built to continue delivering the same experience

as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact

1RU devices with flexible interface options, including 1GE, 10GE, 40GE, and

100GE ports. Powered by Cisco IOS XE, fully programmable software

architecture, and API support, these platforms can facilitate automation at

scale to achieve zero-touch IT capability while migrating workloads to the cloud.


C8500L-8S4X Specification

Description

Cisco Catalyst 8500 Series 12-port SFP+, 8x1GE,4x10GE

Port density

4-port  1 / 10 GE  ,8-port  1 GE

Max 1GE ports

12

Max 10GE ports

4

Max 40GE ports

0

Max 100GE ports

0

SD-WAN IPsec Throughput

(1400Bytes, clear text)

Up to 19Gbps

SD-WAN IPsec Throughput

(IMIX*, clear text**)

Up to 8.6Gbps

SD-WAN Overlay

Tunnels scale

8000

IPv4 Forwarding Throughput

(1400Bytes)

Up to 20Gbps

IPsec Throughput

(1400Bytes, clear text**)

Up to 19Gbps

Number of IPsec

SVTI Tunnels

4000

Number of ACLs

 per system

4000

Number of IPv4

ACEs per system

350K

Number of IPv4 Routes

3.5M w/ default 16GB

Number of IPv6 Routes

2.2M w/ default 16GB

Number of Queues

16K

Number of NAT Sessions

2M

Number of Firewall Sessions

2M

Number of VRFs

8000

Mechanical   specifications

Dimensions (H x W x   D)

1.73 in. x 17.50 in. x 16.25 in.

Rack Units (RU)

1RU

Input voltage

AC: 100 to 240 VAC

DC: -40 to -60 VDC

HVAC: 100 to 277 VAC

HVDC: 240 to 380 VDC

Operating   temperature

32 to 104°F

(0 to 40°C)

Storage temperature

-40 to 150°F

(-40 to 70°C)



Overall Platform Benefits


• Accelerated services with Cisco Software-Defined WAN


Cisco SD-WAN is a set of intelligent software services that allow you to

connect users, devices, and branch office locations reliably and securely

across a diverse set of WAN transport links. Cisco Catalyst 8000 Series

Edge Platforms can dynamically route traffic across the “best” link

based on up-to-the-minute application and network conditions for

great application experiences. You get tight control over application

performance, bandwidth usage, data privacy, and availability of your

WAN links—control you need as your branches conduct greater volumes

of mission-critical business with both on-premises and cloud controllers.


• Application optimization


Ensure that SD-WAN networks meet Service-Level Agreements (SLAs) and

maintain strong performance, even if network problems occur. With

multi-cloud access, you can accelerate your SaaS applications with a simple

template push from the SD-WAN controller.


• Multi-layer security


You can now move your traditional and complex WAN networks to a more

agile software-defined WAN with integrated security. The Cisco Catalyst

8500 Series Edge Platforms feature on-premises and cloud-based security

options.


• Cloud-native agility with programmable software architecture


Cisco continues to offer a feature-rich traditional IOS XE routing stack on the

Cisco Catalyst 8000 Series Edge Platforms. IP Routing, IPSec, Quality of Service

(QoS), firewall, Network Address Translation (NAT), Network-Based Application

Recognition (NBAR), Flexible NetFlow (FNF), and many other features are part

of Cisco IOS XE, a fully programmable software architecture with API support

and a wide variety of protocols and configurations. With an integrated software

image and a single binary file, you can now choose between Cisco IOS XE

SD-WAN and Cisco IOS XE. And easily move from one to the other when you

choose to do so.


• 5G-ready


The Cisco Catalyst 8500 Series Edge Platforms are built for future 5G networks.

These platforms support external cellular gateway modules with LTE/5G

capability for improved throughputs and latency.
