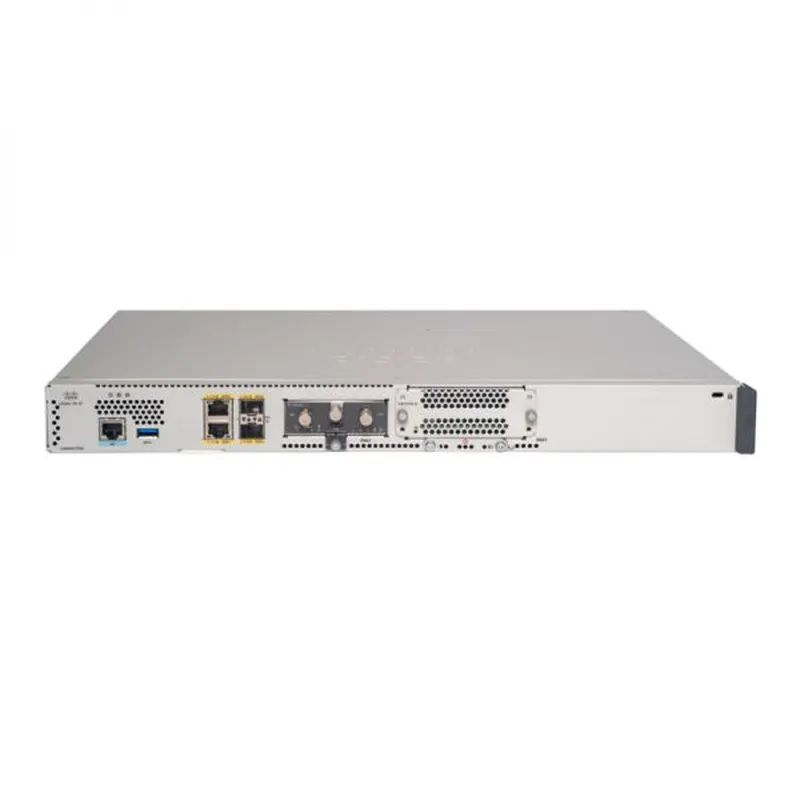

Cisco Catalyst 8200 Series Edge Platforms & uCPE C8200L-1N-4T

C8200L-1N-4T

C8200L 1RU w/ 1 NIM slot and 4 x 1-Gigabit Ethernet WAN ports

Description

C8200L-1N-4T Overview


The Cisco Catalyst 8200 Series Edge Platforms are 5G-ready cloud edge platforms

designed for Secure Access Service Edge (SASE), multilayer security, and

cloud-native agility to accelerate your journey to the cloud. The 8200 Series is well

suited for small and medium-sized enterprise branch offices at optimal

price/performance with integrated SD-WAN services. C8200L-1N-4T for the small to

medium-sized branch with requirements for higher throughput, scale, and service

flexibility. In addition to supporting SASE-compliant cloud-based security services,

the C82L00-1N-4T also delivers a flexible system of best-in-class, on-premises

security services through container-based apps, using Cisco’s third-party

ecosystem.


C8200L-1N-4T Specification

Description

C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports

Multicore   processors

Intel x86 CPU with 4 GB memory default

Embedded IPsec VPN

hardware acceleration

up to 500 Mbps IPsec traffic

SD-WAN overlay

tunnels scale

1500

Integrated Gigabit

Ethernet ports

4 built-in Ethernet WAN ports

2 SFP Ethernet ports, 2 RJ45 ports

Flash memory

support

8-GB flash

Power supply

AC power supply

Modularity and

form factor

1-Rack Unit (1RU) form factor

Supports NIM and Pluggable   Interface Module (PIM) slots

1G port density

4

Slots

1 NIM

1 PIM

DRAM

8 GB

Storage (M.2 SSD)

default

16 GB

IPv4 forwarding

throughput (1400 bytes)

Up to 3.8 Gbps

IPsec throughput

(1400 bytes, clear text**)

Up to 500 Mbps

Number of IPsec static

virtual tunnel interface

(SVTI) tunnels

1500

Number of access

control lists (ACLs)

per system

4000

Number of IPv4 access

control entries (ACEs)

per system

72,000

Number of IPv4   routes

800,000 with default 4 GB, up to 4M   with 32 GB

Number of IPv6   routes

800,000 with default 8 GB, up to 4M   with 32 GB

Number of queues

16,000

Number of Network

Address Translation

(NAT) sessions

600,000 with default 8 GB, up to 2M   with 32 GB

Number of firewall

sessions

512,000

Number of Virtual

Route Forwarding

(VRF) instances

2000



Overall platform benefits


•Accelerated services with Cisco Software-Defined WAN

Cisco SD-WAN is a set of intelligent software services that allow you to connect

users, devices, and branch office locations reliably and securely across a diverse

set of WAN transport links. The Cisco Catalyst 8000 Edge Platforms Family can

dynamically route traffic across the “best” link based on up-to-the-minute

application and network conditions for great application experiences. With

Cisco SD-WAN you get tight control over application performance, bandwidth

usage, data privacy, and availability of your WAN links. This control is critical as

branches conduct greater volumes of mission-critical business using both

on-premises and cloud controllers.


•Application performance optimization

Ensure that SD-WAN networks meet Service-Level Agreements (SLAs) and

maintain strong performance, even if network problems occur. With branch

multi-cloud access, you can accelerate your Software-as-a-Service (SaaS)

applications with a simple template push from the SD-WAN controller.

Features such as TCP optimization, Forward Error Correction (FEC), and

packet duplication enhance application performance for a better user

experience.


•Multilayer security

You can now move your traditional and complex WAN networks into an agile,

software-defined WAN with integrated security. The Catalyst 8200 Series Edge

Platforms connect branch offices to the internet and cloud with

industry-leading protection against major web attacks. Secure Direct Internet

Access (DIA) from the branches helps optimize branch workloads for improved

performance, specifically for cloud-hosted applications. At the same time,

secure DIA helps ensure that your branch is protected from external threats.


•Cloud-native agility with a programmable software architecture

Cisco continues to offer a feature-rich traditional Cisco IOS XE routing stack on

the Catalyst 8200 Series. IP routing, IPsec, QoS, firewall, NAT, Network-Based

Application Recognition (NBAR), Flexible NetFlow (FNF), and many other

features are part of Cisco IOS XE, a fully programmable software architecture

with API support and a wide variety of protocols and configurations. With an

integrated software image and a single binary file, you can now choose

between Cisco IOS XE SD-WAN and Cisco IOS XE. And you can easily move

from one to the other when you choose to do so.


•5G-ready

The Catalyst 8200 Series Edge Platforms are built for future 5G networks.

With the higher throughputs from Cat18 LTE and 5G, wireless WAN solutions

are becoming feasible options for primary transport use cases. These

platforms will support both integrated pluggable modules as well as external

cellular gateways with Cat18 LTE and 5G capability for improved throughput

that addresses those use cases. Either an integrated or external gateway can

be chosen based on a specific branch’s cellular coverage.
