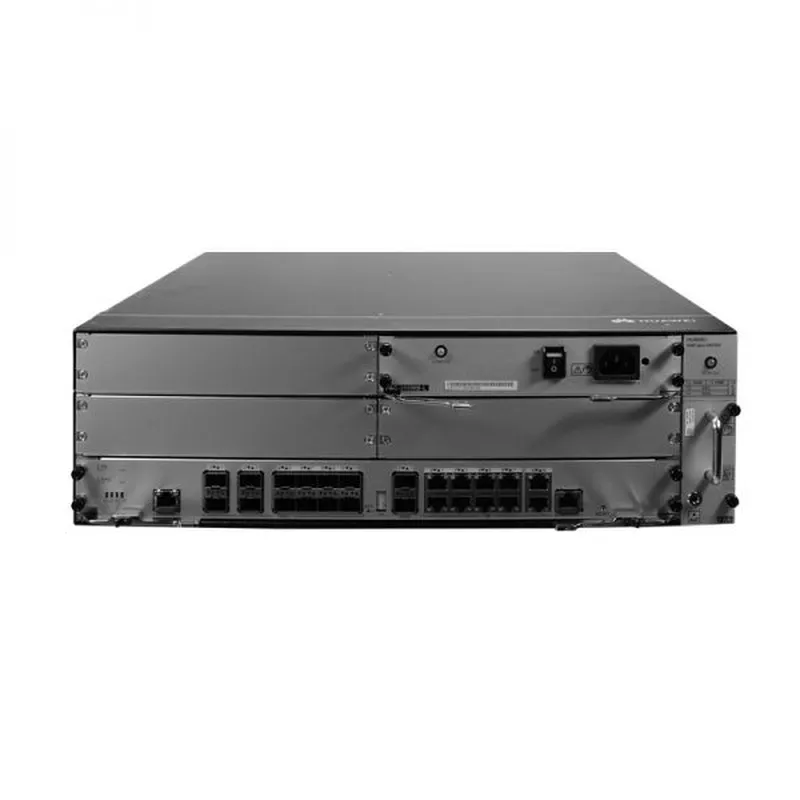

AR6300 Overview
Huawei's next-generation NetEngine AR6000 series enterprise routers
use high-performance multi-core processors and a nonblocking switching
structure, helping to deliver higher forwarding performance than the
industry average. The NetEngine AR6000 also integrates functions such
as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring
diversified and cloud-based services are fully supported.
AR6300 Specification | |
System Parameters | |
Processor | 16-Core |
Forwarding Performance (LAN - > WAN + WAN - > LAN,NAT + ACL + QoS,IMIX) | SRU-400H: 10 Gbps SRU-600H: 12 Gbps |
IPsec performance (IMIX) | SRU-400H: 6 Gbps SRU-600H: 7.5 Gbps |
Fixed WAN ports | SRU-400H: WAN: 14*10GE SFP+(compatible with GE SFP) + 10*GE RJ45 ( All WAN ports can be configured as LAN ) SRU-600H: WAN: 14*10GE SFP+(compatible with GE SFP) + 10*GE RJ45 ( All WAN ports can be configured as LAN ) |
Fixed LAN ports | |
SIC slots | 4 |
WSIC slots | 2 (default)/4 (maximum) |
XSIC slots | 4 (default)/6 (maximum) |
USB port | 1*USB2.0 |
Auxiliary or console port | 1 x RJ45 console port |
Memory | SRU-400H: 8 GB SRU-600H: 16 GB |
Flash memory | SRU-400H: 2 GB SRU-600H: 4 GB |
Hot swapping | Supported |
Dimensions and Weight | |
Router dimensions, With no mounting bracket installed (H x W x D) | 130.5 mm x 442 mm x 470 mm |
Router dimensions, With mounting bracket installed (H x W x D) | 130.5 mm x 482.6 mm x 470 mm |
Packaging Dimensions (H x W x D) | 201 mm x 573 mm x 640 mm |
Rack | IEC |
Occupied rack space | 3U |
Power Specifications, Power Consumption, and Heat Dissipation | |
Rated input voltage range (AC) | 100 V to 240 V |
Rated input frequency (AC) | 50 Hz/60 Hz |
Maximum input voltage range (AC) | 90 V to 264 V |
Maximum input current (AC) | 5 A |
Maximum output power (AC) | 350 W |
Power supply redundancy | Hot-swappable dual power supplies |
Typical power consumption | 130 W |
Maximum power consumption | 275 W |
Fan module | Independent pluggable fan modules |
Airflow | Left to right |
Noise level | 66.1 dB |
Environment Parameters | |
Operating temperature | 0ºC to 45ºC |
Operating humidity | 5% to 95% (non-condensing) |
Operating altitude | < 5000 m (16404.2 ft.) |
Storage temperature | –40ºC to +70ºC |
Storage altitude | < 5000 m (16404.2 ft.) |
Software Features and Protocols | |
Basic function
| DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management |
LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP |
WLAN (AC)
| AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management) |
IPv4 unicast routing | Routing policies, static routes,RIP, OSPF, IS-IS, BGP |
IPv6 unicast routing
| Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ |
Basic IPv6 function
| IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 |
IPv6 tunneling | Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP |
Multicast
| IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD |
MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
VPN | IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN |
QoS
| DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance,congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, Smart Application Control (SAC) |
Security
| ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication,HWTACACS authentication, PKI,broadcast stormsuppression, ARP security, ICMP attack defense, URPF,CPCAR, blacklist, attack source tracing, online behaviormanagement, IPS, URL filtering |
Management and maintenance
| Upgrade management, device management, web-basednetwork management, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment, NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA |
Safety and Regulatory Standards | |
EMC standards compliance
| CISPR32 Class A EN 55032 Class A CISPR24 EN 55024 ETSI EN 300 386 AS/NZS CISPR32 Class A FCC Part 15 Subpart B Class A ICES 003 Class A IEC 61000-3-2 EN 61000-3-2 IEC 61000-3-3 EN 61000-3-3 GB 9254 VCCI-CISPR32 Class A |
Environmental Standards compliance | RoHS REACH WEEE |
Safety standards compliance
| IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No 60950-1 GB 4943.1 |
The Accessories
Table 2 shows the recommended elements for the AR6300.
Models | Descriptions |
350W AC Power Module | |
350W DC Power Module | |
700W AC Power Module | |
8-Port 100M-RJ45+1-Port 1000M-RJ45-L2/L3 Ethernet Electrical Interface Card | |
8 Port 100BASE-RJ45 and 1 Port 1000BASE- RJ45 L2 Ethernet Interface Card | |
24-Port 1000M-RJ45-L2/L3 Ethernet Electrical Interface Card | |
4-Port 1000BASE-SFP-L2 Ethernet Interface Card | |
4-Port 1000BASE-RJ45 L2 Ethernet Interface Card | |
1-Port GE Combo WAN Interface Card | |
4-Port GE Combo WAN Interface Card | |
AR0MSEF2TA00 | 2-Port FE WAN Interface Card |
| AR01WDFE4A | 4-Port Fractional Channelized E1 WAN Interface Card |
8-Port Fractional Channelized E1 WAN Interface Card | |
4-Port E1 ATM IMA Interface Card | |
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card | |
1-Port Synchronous/Asynchronous WAN Interface Card | |
AR0MSDSA2A00 | 2-Port Synchronous/Asynchronous WAN Interface Card |
8-port synchronous/asynchronous WAN interface card | |
8-Port-Asynchronous WAN Interface Card | |
3G WCDMA HSPA+7 Interface Card | |
WCDMA LTE Interface Card | |
6-port E&M trunk interface card | |
1-Port 155M Channelized POS Optical Interface Card-WSIC | |
1-Port 155M Packet over SDH/Sonet Optical Interface Card | |
1-Port 622M Packet over SDH/Sonet Optical Interface Card | |
4-Port 155M Packet over SDH/SONET Optical Interface Card | |
1-Port ISDN S/T WAN Interface Card | |
2-Port ISDN S/T Voice Interface Module | |
4-Port FXS and 1-Port FXO Voice Interface Card | |
16-Port FXS Voice Interface Card | |
32-Port FXS Voice Interface Card | |
4-Port FXO Voice Interface Card | |
1-Port Voice E1 Interface Card | |
1-Port ADSL2+ ANNEX A/M WAN Interface Module | |
1-Port 4 Pair G.SHDSL WAN Interface Card | |
1-Port VDSL2 over POTS WAN Interface card | |
1-Port GPON/EPON Dual-Mode Interface Card | |
Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) | |
Optical Transceiver,eSFP,FE,Single-mode Module (1310nm,40km,LC) | |
Optical Transceiver,eSFP,FE,Single-mode Module (1550nm,80km,LC) | |
Optical Transceiver,eSFP,FE,BIDI Single-mode Module (TX1310/RX1550,15km,LC) | |
Optical Transceiver,eSFP,FE,BIDI Single-mode Module (TX1550/RX1310,15km,LC) | |
Optical Transceiver,eSFP,GE,Multi-mode Module (850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module (1310nm,10km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module (1310nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module (1550nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module (1550nm,80km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1310/RX1490,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1490/RX1310,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1310/RX1490,40km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1490/RX1310,40km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module (850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module (1310nm,10km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module (1550nm,40km,LC) |
