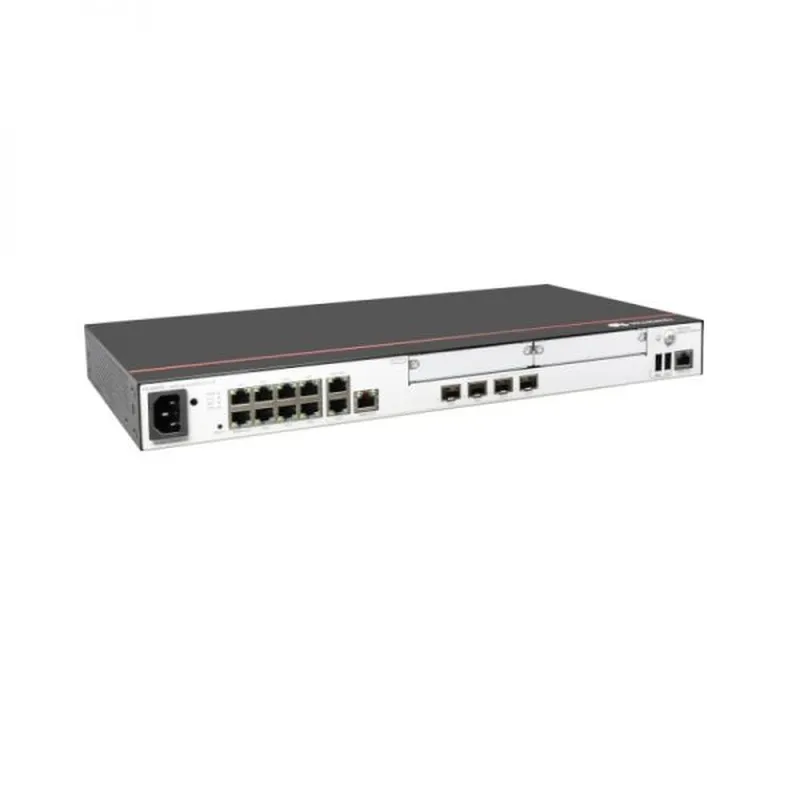

Huawei AR G3 AR6000 Series Router AR6121C-S

AR6121C-S

AR6121C-S,2*GE combo WAN, 1*GE(SFP) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SIC.

Description

AR6121C-S Overview


With an innovative CPU + NP heterogeneous forwarding architecture,

NetEngine AR6000 series routers deliver performance far beyond the

industry average. Meanwhile, critical functions — including SD-WAN,

cloud management, routing, switching, Virtual Private Network (VPN),

security, voice, and Multiprotocol Label Switching (MPLS) are

integrated to fully support diversified and cloud-based services.


AR6121C-S Specification

Installation type

·           Rack

·           Work bench

·           Against the wall

Dimensions without

packaging

(H x W x   D)

[mm(in.)]

·           Basic dimensions

            (excluding the parts protruding from the body):

            44.4 mm x 442.0 mm x 220.4 mm

            (1.75 in. x   17.41 in. x 8.68 in.)

·           Maximum dimensions (the depth is the distance

            from ports on the front panel to the handle on

            the rear panel):

            44.4 mm x 442.0 mm x 225.2 mm

             (1.75 in. x   17.41 in. x 8.87 in.)

Dimensions with

packaging

(H x W x   D)

[mm(in.)]

390 mm x 570 mm x 390 mm

(15.35 in. x 22.44 in. x 15.35   in.)

CPU

1.4 GHz, 4 Cores

Memory

2 GB

NAND Flash

1 GB

Console port

RJ45

RTC

Supported

Maximum power

consumption [W]

31 W

Power supply mode

AC built-in

Number of power

modules

1

Rated input

voltage [V]

100 V to 240 V, 50 Hz/60 Hz

Input voltage

range [V]

90 V to 264 V, 47 Hz to 63 Hz

Maximum input

current [A]

2 A

Maximum output

power [W]

60 W

Type of fans

Built-in

Number of

fan modules

0

Heat dissipation

mode

Air cooling

Airflow direction

Left to right

Extended slots

(standard

configuration)

2 x SIC

Number of service

board slots

2

Redundant power

supply

Not supported

RPS input

Not supported

PoE

Not supported

Noise at normal

temperature

(acoustic power)

[dB(A)]

49.6 dB(A)

Long-term

operating

temperature

[°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m

(5906 ft.-16404.2 ft.),

the highest operating temperature reduces by 1°C

(1.8°F)every time the altitude increases by 220 m

(722 ft.).

Storage

temperature

[°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term

operating relative

humidity [RH]

5% to 95%, noncondensing

Long-term

operating altitude

[m(ft.)]

< 5000 m (16404.2 ft.)
