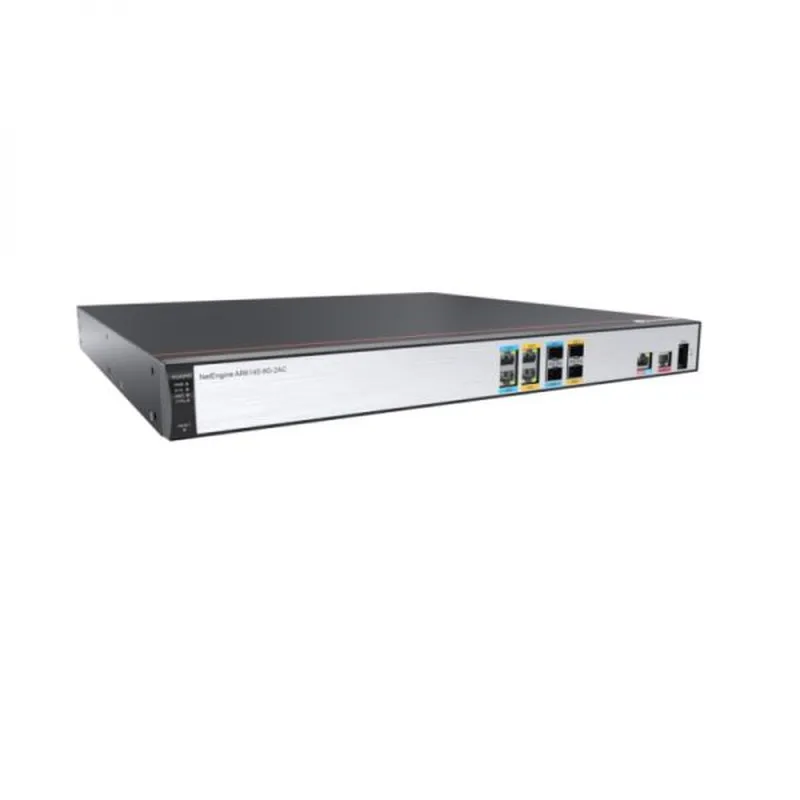

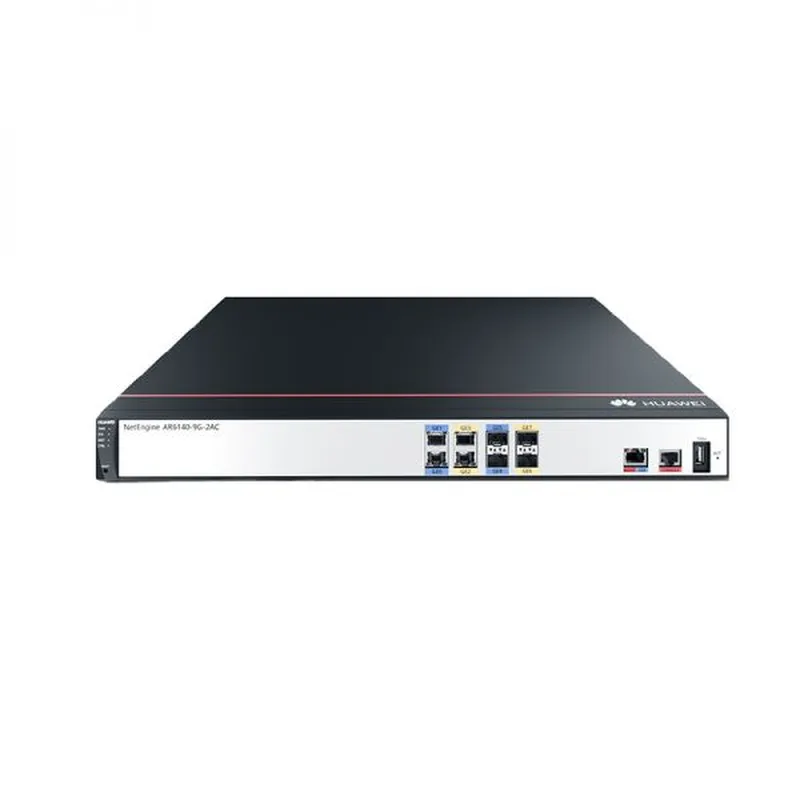

AR6140-9G-2AC

System   Parameters

Processor

4-Core

Forwarding

Performance

(LAN -   > WAN +

WAN - >   LAN,

NAT + ACL +

 QoS,IMIX)

2 Gbps

IPsec

Performance

 (IMIX)

2 Gbps

Fixed WAN

 ports

2*GE RJ45 +14*2GE SFP

Fixed LAN

 ports

2*GE SFP+3*GE RJ45（can be configured as WAN)

SIC slots

4

WSIC slots

0 (default)/2(maximum)

XSIC slots

USB port

1 x USB 3.0 (compatible with USB 2.0)

Auxiliary

or console

 port

1 x RJ45 console port

Memory

2 Gbps

Flash

memory

1 Gbps

Hot swapping

Supported

Dimensions and   Weight

Router dimensions,

With no mounting

 bracket installed

 (H x W x D)

44.5mm × 442mm × 420mm

Router   dimensions,

With   mounting

bracket   installed

 (H x W x D)

44.5mm × 482.6mm × 572.5mm

Packaging

dimensions

(H x W   x D)

175 mm x 550 mm x 710 mm

Rack

IEC

Occupied

rack space

1U

Power   Specifications, Power Consumption, and Heat Dissipation

Rated input

voltage range

(AC)

100 V to 240 V

Rated input

 frequency

(AC)

50 Hz/60 Hz

Maximum input

voltage range (AC)

90 V to 264 V

Maximum input

 current   (AC)

3 A

Maximum output

 power   (AC)

150 W

Power   supply

redundancy

Supported

Typical   power

consumption

18W

Maximum power

consumption

32W

Fan module

Built-in unpluggable fan modules

Airflow

Left to right

Noise level

54 dB

Environment   Parameters

Operating

temperature

0ºC to 45ºC

Operating humidity

5% to 95% (non-condensing)

Operating altitude

< 5000 m (16404.2 ft.)

Storage temperature

–40ºC to +70ºC

Storage   altitude

< 5000 m (16404.2 ft.)

Software   Features and Protocols

Basic function

DHCP server/client/relay, PPPoE   server/client, NAT,

 and sub-interface management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3,VLAN management,

VLAN aggregation, MAC management,STP

WLAN (AC)

AP management

(AC discovery, AP   access, and AP management),

CAPWAP, WLAN user management, WLAN radio

management (802.11a/b/g/n/ac),

WLAN QoS (WMM), WLAN security

(WEP, WPA, WPA2, key management)

IPv4 unicast   routing

Routing policies, static routes, RIP,   OSPF, IS-IS, BGP

IPv6 unicast   routing

Static routes, routing policies,   RIPng,

OSPFv3, IS-ISv6, BGP4+

Basic IPv6   function

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6   ACL,

ICMPv6, DNSv6, DHCPv6

IPv6 tunneling

Manual tunnel, automatic tunnel, GRE   tunnel,

 IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP

Multicast

IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP,

MBGP, IPv6 PIM, MLD

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static   LSP,

dynamic LSP, MPLS TE, IP FRR, LDP FRR,   TE FRR

VPN

IPsec VPN, GRE VPN, DSVPN, A2A VPN,

L2TP VPN, L2TPv3 VPN

QoS

DiffServ mode, MPLS QoS, priority   mapping,

traffic policing (CAR), traffic   shaping, congestion

avoidance, congestion management, MQC

(traffic classifier, traffic behavior,   and traffic policy),

hierarchical QoS, Smart Application   Control (SAC)

Security

ACL (v4/v6), domain-based stateful   firewall, 802.1X

authentication, MAC address   authentication,portal

authentication, AAA authentication,   RADIUS

authentication, HWTACACS   authentication,

PKI,broadcast storm suppression, ARP   security,

ICMP attack defense, URPF, CPCAR,   blacklist,

attack source tracing, online   behavior management,

IPS, URL filtering

Management

 and

maintenance

Upgrade management, device management,

 web-based network management, GTL, SNMP

(v1/v2c/v3), RMON, NTP, CWMP,   Auto-Config,

 URL-based/USB-based/DHCP deployment,

NETCONF/YANG, CLI, NetStream, IP FPM,

TCP FPM, TWAMP, IP accounting, NQA

Safety and   Regulatory Standards

EMC   standards

compliance

CISPR32 Class A

EN 55032 Class A

CISPR24

EN 55024

ETSI EN 300 386

AS/NZS CISPR32 Class A

FCC Part 15 Subpart B Class A

ICES 003 Class A

IEC 61000-3-2

EN 61000-3-2

IEC 61000-3-3

EN 61000-3-3

GB 9254

VCCI-CISPR32 Class A

Environmental

standards

compliance

RoHS

REACH

WEEE

Safety   standards

compliance

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

GB 4943.1
