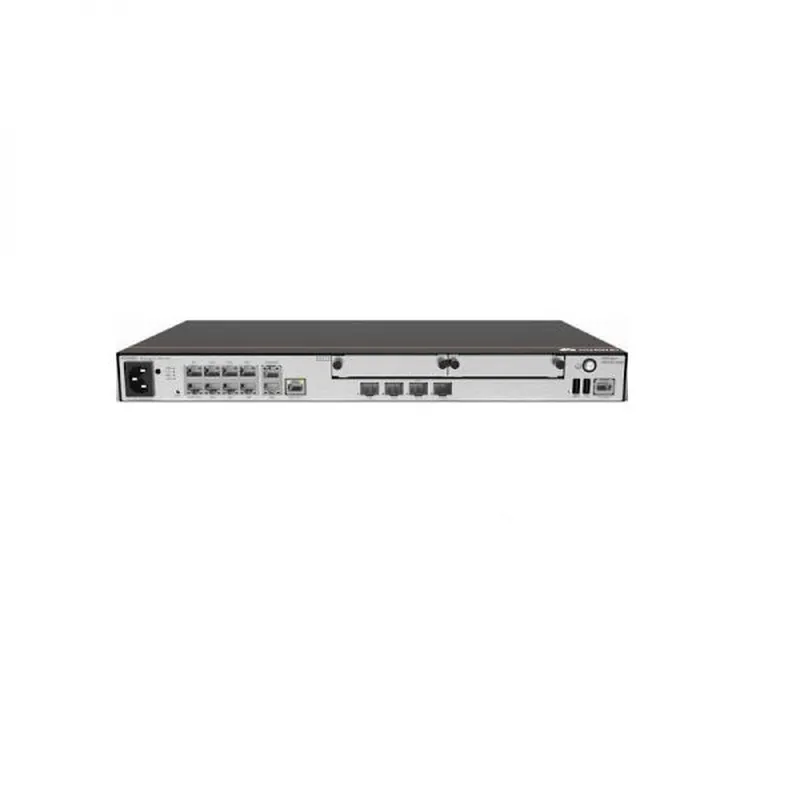

AR6121E Overview
The industry's first enterprise-class Access Routers (AR) designed
for the cloud era, the NetEngine AR series features 5G
ultra-broadband uplink and boasts a forwarding performance
that's 3x the industry average. Offering diverse
features — supporting Software-Defined-Wide-Area Network
(SD-WAN), cloud management, Virtual Private Network (VPN),
Multiprotocol Label Switching (MPLS), security, and
voice — the series also excels at coping with uplink traffic surges
and promoting diversified service development.
AR6121E Specification | |
Installation type | Rack Work bench Against the wall |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.41 in. x 8.68 in.) Maximum dimensions (the depth is the distance fromports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.41 in. x 8.87 in.) |
Dimensions with Packaging (H x W x D) [mm(in.)] | 390 mm x 570 mm x 390 mm (15.35 in. x 22.44 in. x 15.35 in.) |
CPU | 1.4 GHz, 4 Cores |
Memory | 4 GB |
NAND Flash | 1 GB |
Console port | RJ45 |
RTC | Supported |
Maximum power consumption [W] | 33 W |
Power supply mode | AC built-in |
Number of power modules | 1 |
Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
Maximum input current [A] | 2 A |
Maximum output power [W] | 60 W |
Type of fans | Built-in |
Number of fan modules | 0 |
Heat dissipation mode | Air cooling |
Airflow direction | Left to right |
Extended slots (standard configuration) | 2 x SIC |
Number of service board slots | 2 |
Redundant power supply | Not supported |
RPS input | Not supported |
PoE | Not supported |
Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.),the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
Product Details
Features
5G Ultra-Broadband, High-Speed Interconnection
Full GE access: Ultra-broadband interconnection for enterprises
with multiple branches, easily handling the traffic surges that
result from increased mobile use and cloudification.Cabling-free
plug-and-play: Network provisioning anytime, anywhere — and
within just one day.
3x the Forwarding Performance, Congestion-Free Services
Innovative "CPU + NP" forwarding architecture: Five built-in
hardware acceleration engines achieve non-blocking concurrent
services. 3x the forwarding performance: Ready for rapid traffic
growth over the next three to five years, protecting investment.
SD-WAN for an Intelligent Experience
SD-WAN and built-in Adaptive-Forward Error Correction (A-FEC)
algorithm: Frame freezing and artifacts are eliminated even with
20% packet loss, delivering a smooth experience.
Application-based intelligent traffic steering:
Traffic of key applications is always transmitted on the optimal link.
