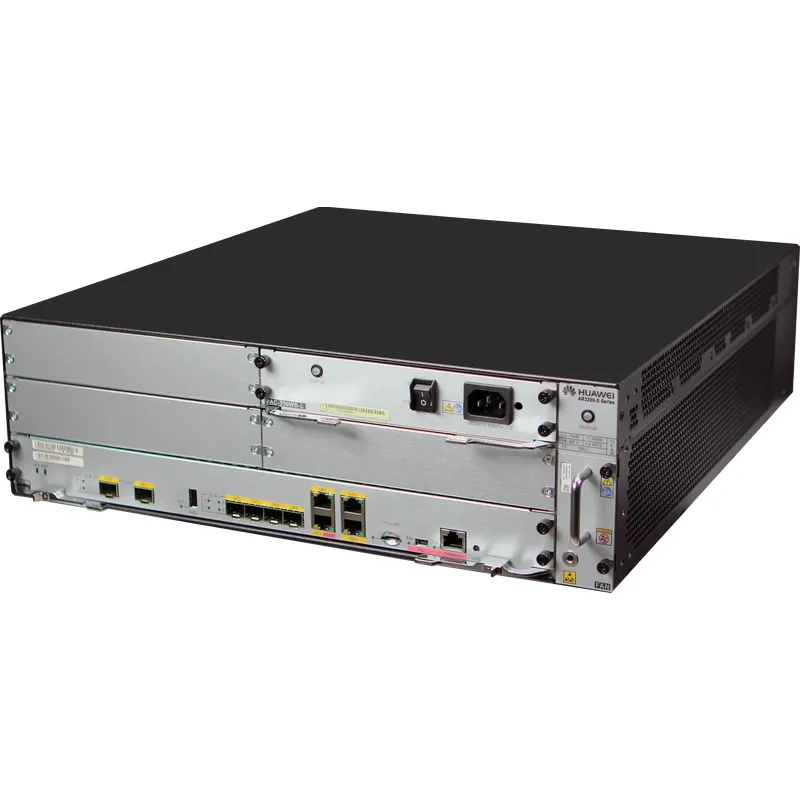

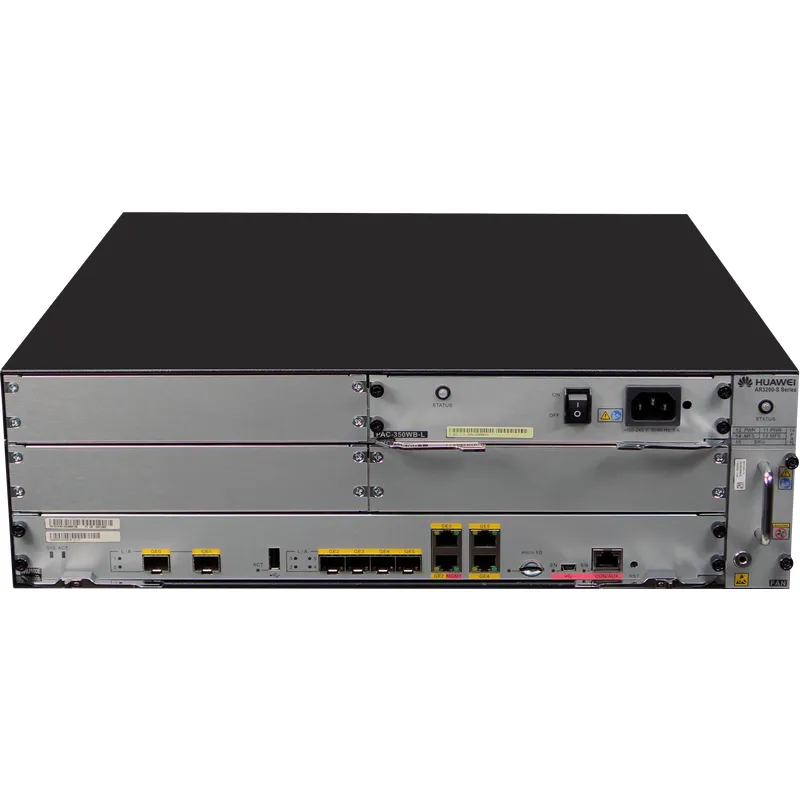

AR3260E-S

System parameters

Depending on the SRU that is used

Dimensions and weight

Dimensions

(H x W x D)

·           With no mounting bracket installed:

            130.5 mm x 442.0 mm x 470.0 mm

            (5.14 in. x 17.40 in. x 18.50 in.)

·           With mounting brackets installed:

            130.5 mm x 482.6 mm x 470.0 mm

            (5.14 in. x 19.00 in. x 18.50 in.)

Weight

11 kg (24.25 lb)

Power specifications

AC input voltage

·           Rated input voltage range:

            100 V to 240 V, 50 Hz/60 Hz

·           Maximum input voltage range:

            90 V to 264 V, 47 Hz to 63 Hz

Heat dissipation

Fans

Independent pluggable fan   modules

Airflow

(facing the front panel)

Left to right

Interface density

Depending on the SRU that is   used

Extended slots

·           4xSIC

·           2xWSIC

·           4xXSIC

Environment parameters

Operating temperature

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906ft.-16404.2   ft.),

the highest operating temperature reduces by 1°C   (1.8°F)

 every time   the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to   +158°F)

Operating relative

humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)

Part number

02351AUB
