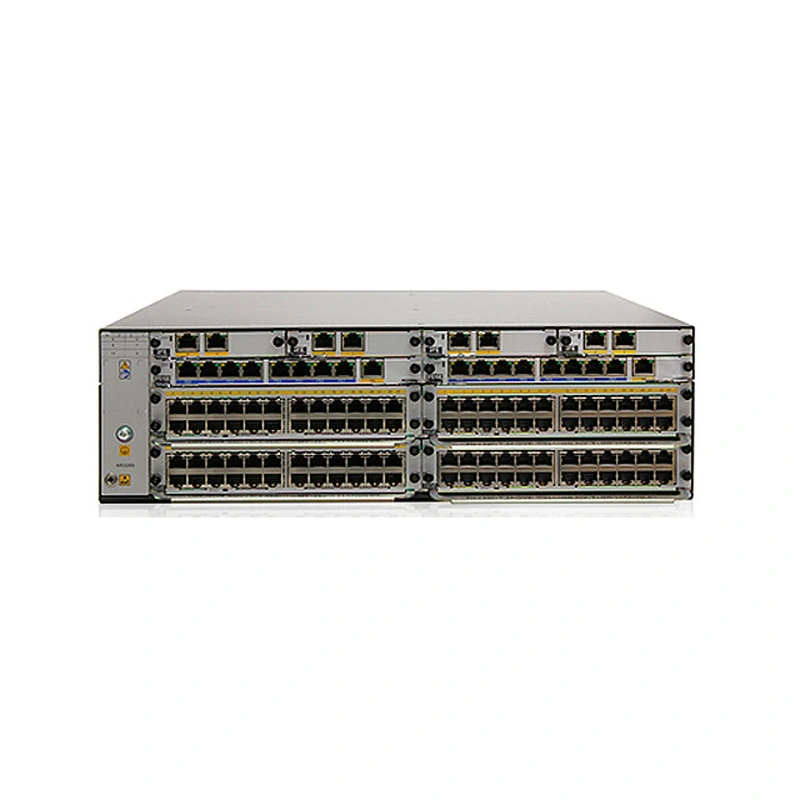

Huawei AR G3 AR3200 Series Integrated Enterprise Router AR0M0036BD00

AR0M0036BD00

AR3260,Service and Router Unit 80,4 SIC,2 WSIC,4 XSIC,350W DC Power.

Description

AR0M0036BD00 Overview


Huawei AR G3 AR3200 Series Integrated Enterprise Router AR0M0036BD00

is the next generation enterprise-class routers based on Huawei proprietary

Versatile Routing Platform (VRP) platform. Huawei AR3200 series router

utilizes multi-Core CPU and non-blocking switching structure to provide

industry-leading performance and extensibility to support requirements

of network development.


AR0M0036BD00 Specification

WAN Speed

with Services

1 Gbit/s (SRU40), 2 Gbit/s   (SRU80), 1 Gbit/s (SRU100E),

4.5 Gbit/s (SRU200), 5.5   Gbit/s (SRU400)

Firewall

Performance

(large packets)

5.5 Gbit/s (SRU40), 9.5 Gbit/s   (SRU80),

10 Gbit/s (SRU100E), 15 Gbit/s   (SRU200),

20 Gbit/s (SRU400)

Device Switching

Capacity

160 Gbit/s

Slot Switching

Bandwidth

SIC slots: 2 Gbit/s
  WSIC slots: 5 Gbit/s
  XSIC & EXSIC slots: 20 Gbit/s

Number of

recommended

users

2,000

Fixed WAN Ports

SRU40: 3 x GE (2 x Combo)

SRU80: 3 x GE (2 x Combo)

SRU100E: 4 x GE Combo+ 2 x GE SFP

SRU200: 4 x GE Combo+ 2 x 10 GE   SFP+

SRU400: 4 x GE Combo+ 2 x 10 GE   SFP+

SIC Slots

4

WSIC Slots

XSIC Slots

(default/max**)

4/6

EXSIC Slots

(shared with XSIC)

1

DSP Slots

0/3

USB 2.0 Ports

1/2

Mini-USB Ports

1

Console Ports

1

Memory

2 GB/4 GB

Flash

(default/max**)

2 GB/8 GB

Maximum Power

350W (single power module)/700W

(dual power module)

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC Power

-48V to -60V

Dimensions

(H x   W x D)

130.5 mm x 442 mm x 470 mm

Weight

11 kg (without power module and   interface card)

Ambient Temperature

0°C to 45°C

Ambient Humidity

5% to 95% (non-condensing)

Basic Features

DHCP server/client, PPPoE   server/client, PPPoA client,

 PPPoEoA client, NAT, and sub-interface   management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX,   FXO/FXS,

VoIP/conference call,   BEST, DISA, and SBC

3G

3G Interface card (WCDMA)

LTE

LTE Interface card (FDD LTE:   Uplink: 50 Mbit/s;

Downlink: 100 Mbit/s)

WLAN (AC)

AP management (AC discovery/AP   access/AP management),

CAPWAP, WLAN user management,

WLAN radio management   802.11a/b/g/n, WLAN QoS (WMM),

and WLAN security   (WEP/WPA/WPA2/Key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE   802.3, VLAN management,

MAC address management, and MSTP

IPv4 Unicast

Routing

Routing policy, static route,   RIP, OSPF, IS-IS, and BGP

IPv6 Unicast

Routing

Routing policy, static   route, RIPng, OSPFv3, IS-ISv6,

and BGP4+

Multicast

IGMPv1/v2/v3, IGMP Snooping   v1/v2/v3, PIM SM, PIM DM,

and MSDP

MPLS

LDP, MPLS L3 VPN, VLL, PWE3,   static LSP, dynamic LSP,

MPLS TE, IP FRR, LDP, FRR, TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, A2A   VPN, L2TP VPN,

Smart VPN

QoS

DiffServ mode, MPLS QoS, priority   mapping,

traffic policing (CAR), traffic   shaping, congestion avoidance

(based on IP   precedence/DSCP WRED), congestion management

(LAN   interface: SP/WRR/SP+ WRRWAN interface: PQ/CBWFQ),

 MQC (traffic   classifier, traffic behavior, traffic policy),

hierarchical QoS, FR QoS, Smart   Application Control (SAC),

Hardware QoS

Security

ACL, firewall,   802.1x authentication, MAC address authentication,

Web authentication, AAA   authentication, RADIUS authentication,

HWTACACS authentication, broadcast   storm suppression,

ARP security, ICMP attack   defense, URPF, IP source guard,

DHCP snooping, CPCAR,   blacklist, and IP source tracing

Management and

Maintenance

Upgrade management, device   management, web-based GUI,

GTL, SNMPv1/v2c/v3,   NTP, CWMP, auto-config,

 deployment using USB disk, NetConf,   and CLI



The Modules, Optical Transceivers

Table 2 shows the recommended elements for the AR0M0036BD00.



Model

Description

AC power module

AR0MPSAP3500

350W AC Power Module

DC power module

AR0MPSDP3500

350W DC Power Module

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)

eSFP-FE-LX-SM1310

eSFP , 100M /155M ,Single-mode  Module ( 1310nm ,15km ,LC )

S-SFP-FE-LH40-SM1310

eSFP,FE,Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

SFP-1000BaseT

SFP,GE,Electrical Interface   Module(100m,RJ45)

eSFP-GE-SX-MM850

eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

eSFP,GE,Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

eSFP,GE,Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

eSFP,GE,Single-mode Module(1550nm,40km,LC)
