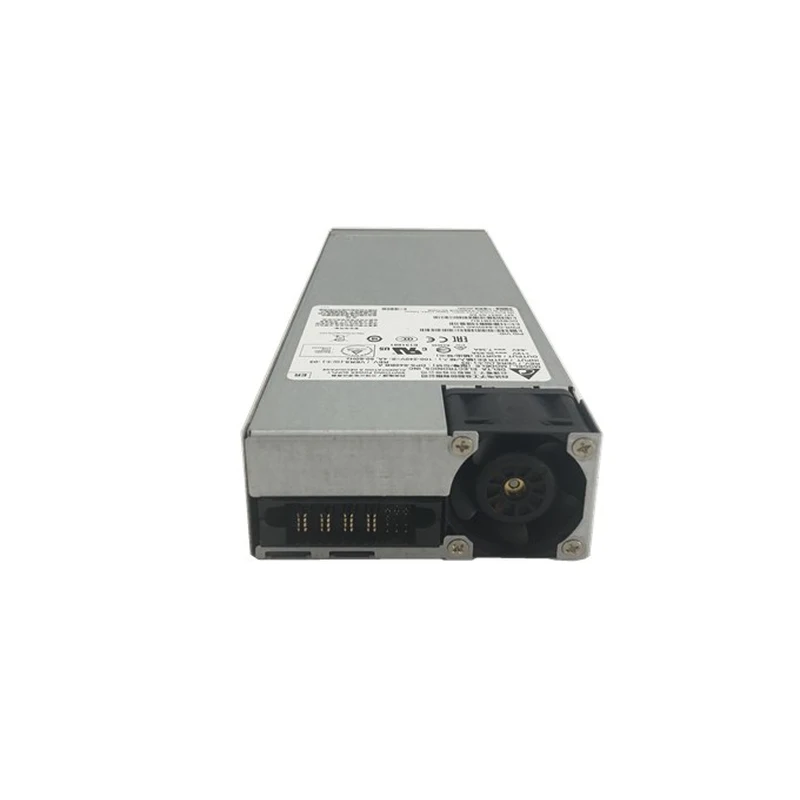

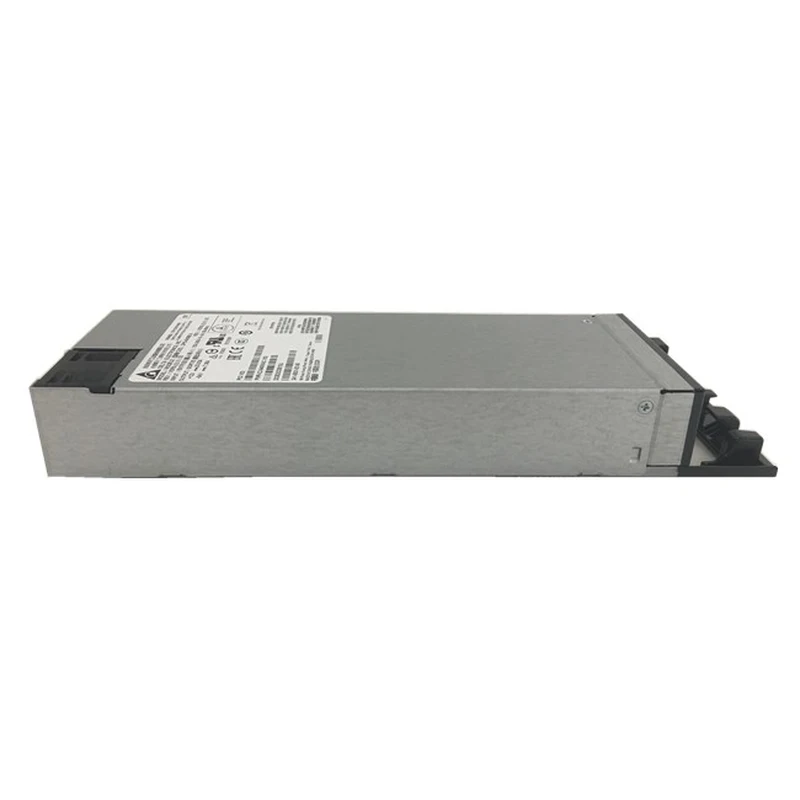

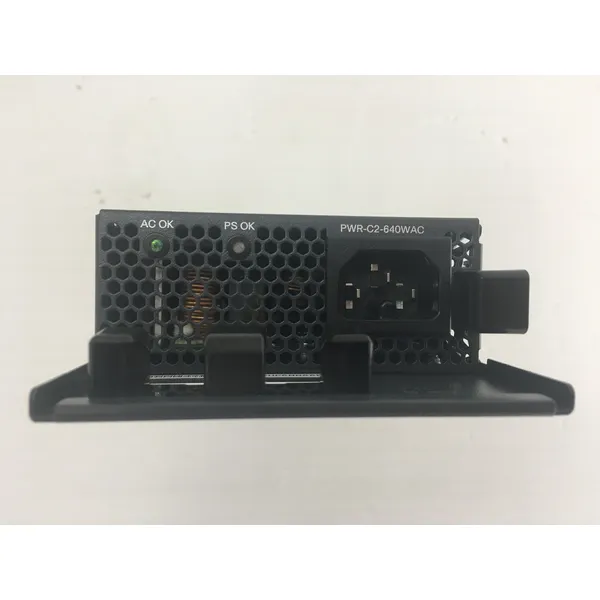

Cisco Catalyst 3650 Series Spare Power Supply PWR-C2-640WAC

PWR-C2-640WAC Overview

PWR-C2-640WAC= is a Cisco Catalyst Switch 3650 Series Switch Power Supply,

delivering 640W AC power for Cisco 3650 switches. Notice that PWR-C2-640WAC

is similar with PWR-C2-640WAC, except that PWR-C2-640WAC= is a spare one.

Both of them deliver the same function and same price.2 Power Supply Spare.

PWR-C2-640WAC Specification

PWR-C2-640WAC= Specification
Maximum output power	640 W
Input voltage range and frequency	640 W, 100 to 240 VAC (autoranging), 50 to 60 Hz
Input current	8–4 A
Output ratings	+12 V @ 20.83 A, –54 V@7.36 A
Total input BTU	2371 BTUs per hour, 695 W
Total output BTU	2183 BTUs per hour, 640 W
Storage temperature	–40 to 158° F (–40 to 70° C)
Relative humidity	5 to 96% (noncondensing)
Altitude	AC power supply: Up to 16,400 feet (5,000 m)
Net Weight	3.1 lb (1.41 kg)
Physical Specifications: Dimensions (H x W x D)	1.58 x 3.75 x 11.75 in. (4.0 x 9.5 x 29.8 cm)

The Recommended Switches

Table 2 shows some recommend stackable switches.

Get More Information

Do you have any question about the PWR-C2-640WAC?
