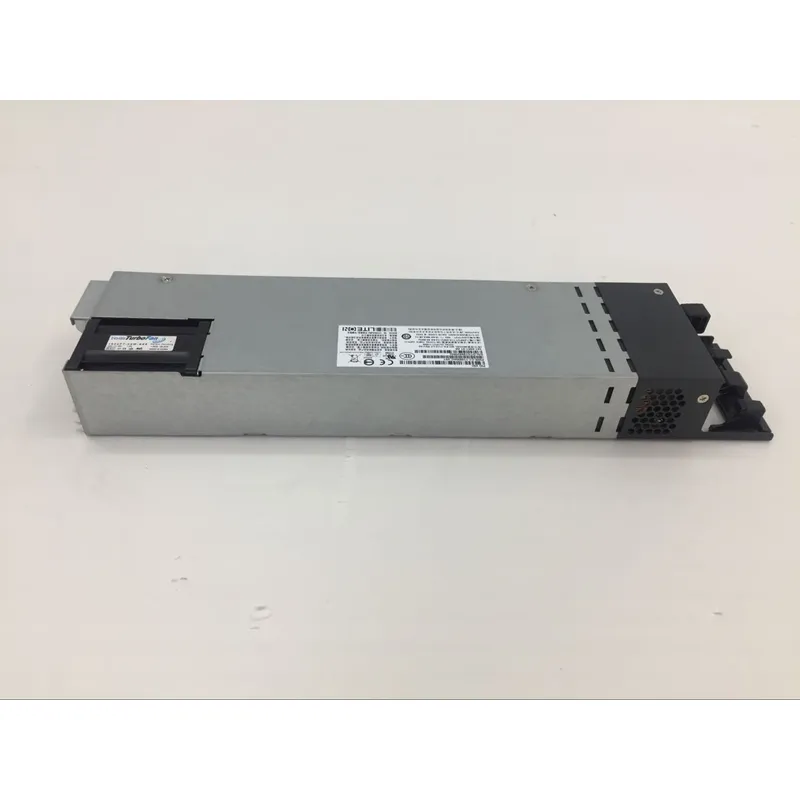

Cisco Catalyst 3850 Series Spare Power Supply PWR-C1-1100WAC=

PWR-C1-1100WAC= Overview

PWR-C1-1100WAC= is a 1100W AC Config 1 Power Supply for Cisco switches.

PWR-C1-1100WAC= Specification

PWR-C1-1100WAC= Specification
Power supply rated maximum	1100W
Total output BTU (Note: 1000 BTU/hr = 293W)	3793BTU/hr, 1100W
Input-voltage range and frequency	115-240VAC, 50-60 Hz
Input current	12-6A
Output ratings	-56V at 19.64A
Output holdup time	10 ms minimum at 102.5VAC
Power-supply input receptacles	IEC 320-C16 (IEC60320-C16)
Power cord rating	13A
Physical specifications	(H x W x D): 1.58 X 3.25 X 13.7 in
Operating temperature	23 to 113°F (-5 to 45°C)
Storage temperature	-40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing	5 to 90% noncondensing
Altitude	10,000 ft. (3000 meters), up to 45°C
MTBF	Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Safety compliance	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking

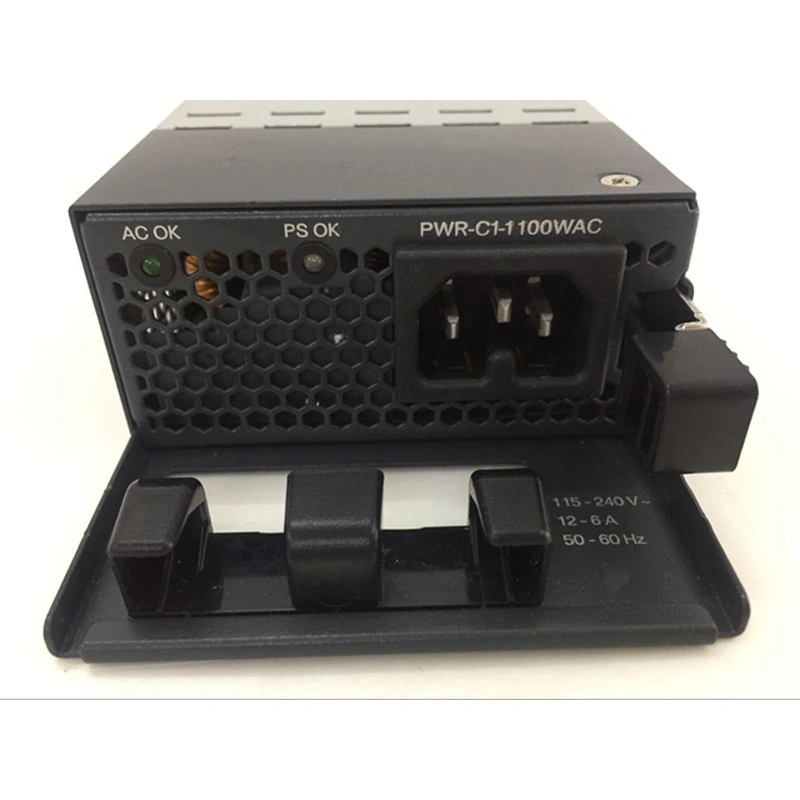

LED indicators	“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK

The Modules, Cards, Licenses

Table 2 shows the recommended elements for the PWR-C1-1100WAC=.

Model	Description
CAB-TA-NA	North America AC Type A Power Cable
CAB-TA-JP	Japan AC Type A Power Cable
CAB-C15-CBN	Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
