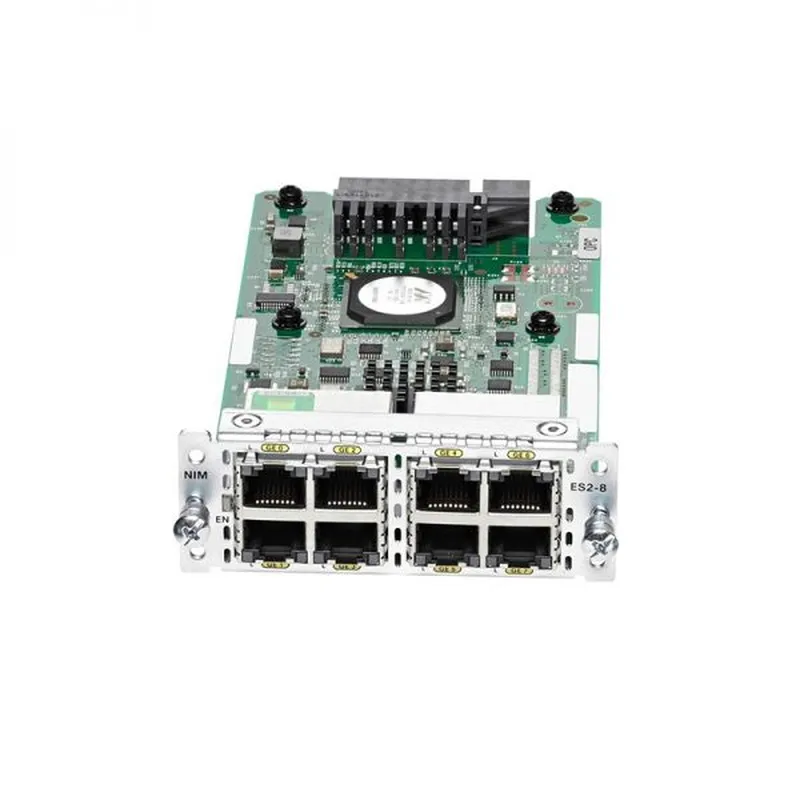

NIM-ES2-8

Product Number

NIM-ES2-8

Product Description

8-Port Layer 2 Gigabit   Ethernet Switch Module NIM

Form Factor

Single-wide NIM form factor

Dimensions

(H x W x   D)

0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x   12.2 cm)

Weight

108g (0.24 lb)

IEEE protocols

●  Gigabit Ethernet:   IEEE 802.3 and 10BASE-T

●  Gigabit Ethernet:   IEEE 802.3u, 100BASE-TX,

     and 1000BASE-TX

●  IEEE 802.1d Spanning   Tree Protocol

●  IEEE 802.1p CoS for   Traffic Prioritization

●  IEEE 802.1q VLAN

●  IEEE 802.1X Security

●  IEEE 802.3x Full   Duplex

●  IEEE 802.3af Power   over Gigabit Ethernet Standard

RFC

RFC 2284, PPP Extensible   Authentication Protocol (EAP)

MIBs

●  RFC 1213

●  IF MIB

●  RFC 2037 ENTITY MIB

●  CISCO-CDP-MIB

●  CISCO-IMAGE-MIB

●  CISCO-FLASH-MIB

●  OLD-CISCO-CHASSIS-MIB

●  CISCO-VTP-MIB

●  CISCO-HSRP-MIB

●  OLD-CISCO-TS-MIB

●  CISCO-ENTITY-ASSET-MIB

●  CISCO-ENTITY-FRU-CONTROL-MIB

●  BRIDGE MIB (RFC 1493)

●  CISCO-VLAN-MEMBERSHIP-MIB

●  CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB

●  RMON1-MIB

●  PIM-MIB

●  CISCO-STP-EXTENSIONS-MIB

●  OSPF MIB (RFC 1253)

●  IPMROUTE-MIB

●  CISCO-MEMORY-POOL-MIB

●  ETHER-LIKE-MIB (RFC   1643)

●  CISCO-ENTITY-FRU-CONTROL-MIB.my

●  CISCO-RTTMON-MIB

●  CISCO-PROCESS-MIB

●  CISCO-COPS-CLIENT-MIB

Manageability

●  SNMP and Telnet  interface support delivers comprehensive in-band

management, and a CLI   management console provides detailed

out-of-band management.

●  An embedded RMON   software agent supports four RMON groups

(history, statistics, alarms, and events) for enhanced traffic management,

monitoring, and analysis.

●  A SPAN port can   mirror traffic from one or many ports to another port

for monitoring all eight   RMON groups with an RMON probe or network

analyzer.

●  Trivial File Transfer   Protocol (TFTP) reduces the cost of administering

software upgrades by   downloading from a centralized location.

●  Two LEDs per port   provide convenient visual indication of the port link

and PoE status.

●  Crash information   support enables a switch to generate a crash file for

improved   troubleshooting.

●  Show-interface   capabilities provide information about the configuration

capabilities of any   interface.

Connectors

and

cabling

●  10BASE-T ports: RJ-45   connectors, two-pair Category 3, 4, or 5

unshielded twisted pair (UTP)   cabling

●  100BASE-TX ports:  RJ-45 connectors;  two-pair Category 5 UTP cabling

●  1000BASE-TX ports:  RJ-45 connectors; two-pair Category 5e

and Category 6 UTP cabling

LED indicators

●  Link status LED: One   LED per port for indicating link status

●  PoE LED: One LED per   port system for PoE status indication

Internal power

supply

Optional PoE system power supply

available for all Cisco 4000 Series routers

Internal redundant

power supply

For the Cisco 4431 and 4451   routers only

DC power support

●  DC system power input available on the

Cisco 4351, 4431, and 4451 routers

●  PoE option not   available with DC system power input

Software support

Minimum Cisco IOS-XE Software   Release 3.15 for

Cisco 4000 Series routers: IP Base License of the Universal   image

Operating

temperature

32° to 104°F (0° to 40°C)

Operating humidity

10 to 90 percent, noncondensing

Nonoperating

temperature

-4° to 149°F (-20° to 65°C)

Operating altitude

15,000 ft (4,570m)

Regulatory

compliance, safety,

and EMC

When installed in a Cisco 4000   Series router, the Cisco Gigabit

Ethernet LAN Switch NIM meets the standards   (regulatory compliance,

safety, and EMC) of the router itself. Refer to the   data sheets for the

Cisco 4000 Series routers for more details.

CISCO   ISR4221/K9

35Mbps-75Mbps system throughtput, 2 WAN/LAN   ports, 1 SFP port,

multi-Core CPU,2 NIM

CISCO   ISR4221-SEC/K9

35Mbps-75Mbps system throughtput, 2 WAN/LAN   ports, 1 SFP port,

multi-Core CPU,2 NIM, SEC Bundle with SEC lic

Cisco   ISR4321/K9

50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port,

multi-Core CPU,2 NIM, Security, Voice, WAAS,   Intelligent WAN,

OnePK, AVC

Cisco   ISR4331/K9

100Mbps-300Mbps system throughtput, 2   WAN/LAN ports,

2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice,

WAAS, Intelligrnt WAN, OnePK, AVC

Cisco   ISR4351/K9

200Mbps-400Mbps system throughtput, 2   WAN/LAN ports,

3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice,

WAAS, Intelligrnt WAN, OnePK, AVC

Cisco   ISR4431/K9

500Mbps-1Gbps system throughtput, 4 WAN/LAN   ports, 4 SFP ports,

multi-Core CPU, Dual-power, Security, Voice, WAAS,   Intelligrnt WAN,

OnePK, AVC, separate control data and services CPUs
