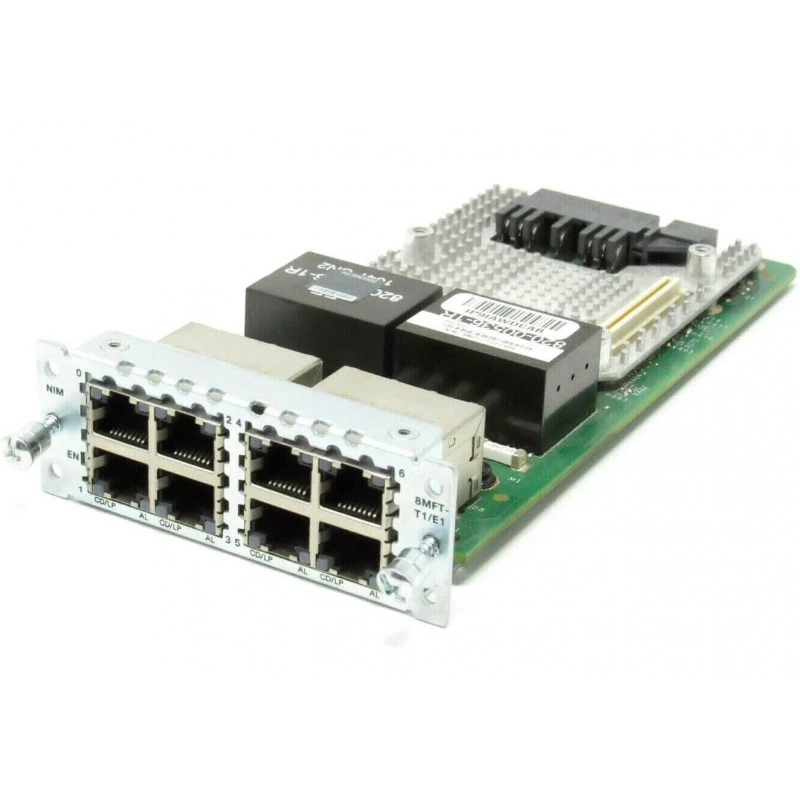

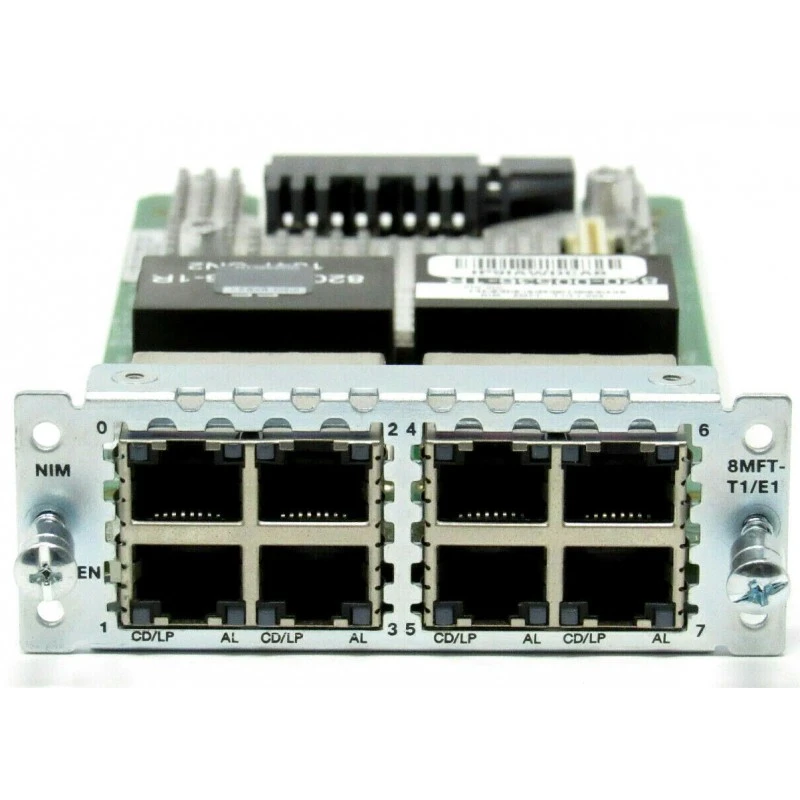

Cisco network interface module NIM-8MFT-T1/E1

NIM-8MFT-T1/E1 Overview

The Cisco® Fourth-Generation 8-Port T1/E1 Multiflex Trunk Voice and WAN

Network Interface Modules (NIMs) NIM-8MFT-T1/E1 supportS data and

voice applications on the Cisco 4000 Integrated Services Routers. These

cards combine WAN-interface-card (WIC), voice-interface-card (VIC),

ISDN Primary Rate Interface (PRI), dial-access integration,

and channelized-data (CE1T1) functions to provide superior flexibility,

versatility, and investment protection through their many uses.

Customers who choose to integrate data and voice in multiple steps

preserve their investment in a T1/E1 WAN interface.

NIM-8MFT-T1/E1 Specifications
Product Number	NIM-8MFT-T1/E1
Product Description	8 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module
Number of Ports	8
Clear-Channel Data	Yes
MFT Packet Voice	Yes
Unstructured E1 (G.703) Support	No
Channelized Data	No
Dimensions (H x W x D)	1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Weight	0.52 lb (236g)
Environmental	● Operating temperature: 0 to 50°C (32 to 122°F) ● Storage temperature: -20 to +65°C (-4 to 148°F) ● Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
T1 Compliance (partial list)	● TIA-968-A ● CS-03 ● Jate ● ANSI T1.403
E1 Compliance (partial list)	● TBR4, TBR12, and TBR13 ● ITU-T G.703, G.704, G.823, and I.431 ● S016 (Australia)

Supported Devices

Table 2 shows the supported devices for the NIM-8MFT-T1/E1.

Product number

Description

Cisco ISR4321/K9

50Mbps-100Mbps system throughtput, 2 WAN/LAN ports,

1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS,

Intelligent WAN, OnePK, AVC

Cisco ISR4331/K9

100Mbps-300Mbps system throughtput, 2 WAN/LAN ports,

2 SFP ports , multi-Core CPU ,1 service module slots , Security ,

Voice, WAAS, Intelligrnt WAN, OnePK, AVC

Cisco ISR4351/K9

200Mbps-400Mbps system throughtput, 2 WAN/LAN ports,

3 SFP ports, multi-Core CPU,2 service module slots, Security ,

Voice, WAAS, Intelligrnt WAN, OnePK, AVC

Cisco ISR4431/K9

500Mbps-1Gbps system throughtput, 4 WAN/LAN ports,

4 SFP ports, multi-Core CPU, Dual-power, Security, Voice,

WAAS, Intelligrnt WAN, OnePK, AVC,

separate control data and services CPUs

Get More Information

Do you have any question about the Cisco NIM-8MFT-T1/E1 ?
