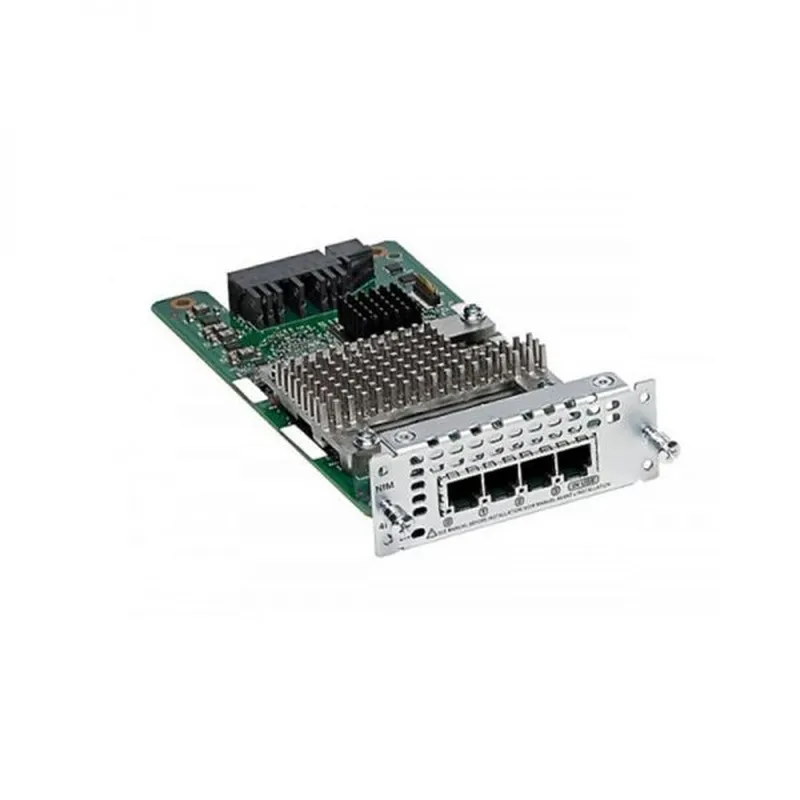

Cisco Analog voice network interface card NIM-4FXS

NIM-4FXS Overview

NIM-4FXS is a Cisco 4-Port Network Interface Module - FXS. FXS-E and DID,

for ISR4451-X. The Cisco® 4000 Series Integrated Services Routers (ISRs)

host the Cisco network interface modules (NIMs), which have evolved from

the enhanced high-speed WAN interface card (EHWIC), increasing port

density and module capability. Up to three integrated NIM slots on the 4000

Series allow for flexible configurations. The NIMs support online insertion

and removal (OIR), reducing the downtime required for new or replacement

modules.

The available modules include 2-port and 4-port foreign exchange station

(FXS), direct inward dial (DID), foreign exchange office (FXO), a combination

of 2-port FXS and 4-port FXO, 4-port ear and mouth (E/M), and 2-port and

4-port basic rate interface (BRI). The BRI cards support only voice features.

The NIMs have a dedicated digital signal processor (DSP) that will be used

for time-division multiplexing (TDM) analog voice services.

NIM-4FXS Specification
Number of Ports	4
ISR G2 comparison	VIC3-4FXS/DID
Cisco IOS Release	XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
Weight	0.44 lb (200 g)
Telnet or console	Remote and local configuration, monitoring , and troubleshooting from Cisco IOS XE Software command-line interface.
Simple Network Management Protocol (SNMP)	● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user ● Standard MIB (MIB II) ● Cisco Integrated DSU/CSU MIB ● RFC 1406 T1 MIB, including Alarm Detection and Reporting
SNMP traps	Generated in response to alarms
Standard	TIA-968-B (USA) CS-03 (Canada) AS/CA S003 (Australia) PTC220 (New Zealand)
Emission	47 CFR Part 15 CISPR22: Edition 6.0: 2008 CNS13438: 2006 EN 300 386 V1.6.1 EN 55022:2010 EN61000-3-2: 2006 [Inc amd 1 '&' 2] EN61000-3-3: 2008 ICES-003 Issue 5: 2012 KN 22: 2009 TCVN 7189: 2009 VCCI: V-3/2013.04
Immunity	CISPR24: 2010 EN 300 386 V1.6.1 EN55024: 2010 KN24: 2011 TCVN 7317: 2003

The Supported Devices

Table 2 shows the supported routers.

SKU	Description
ISR4451-X/K9	1-2G system throughtput,4 WAN/LAN ports,4 SFP ports,10 Core CPU, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs
ISR4451-X-AX/K9	1Gbps-2Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs
ISR4451-X-SEC/K9	Cisco ISR 4451 Sec bundle w/SEC license
ISR4451-X-VSEC/K9	Cisco ISR 4451 VSEC Bundle, PVDM4-64 w/ UC,SEC Lic,CUBE- 25
ISR4451-X-V/K9	Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic.CUBE25
ISR4451-X-AXV/K9	Cisco ISR 4451 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25
