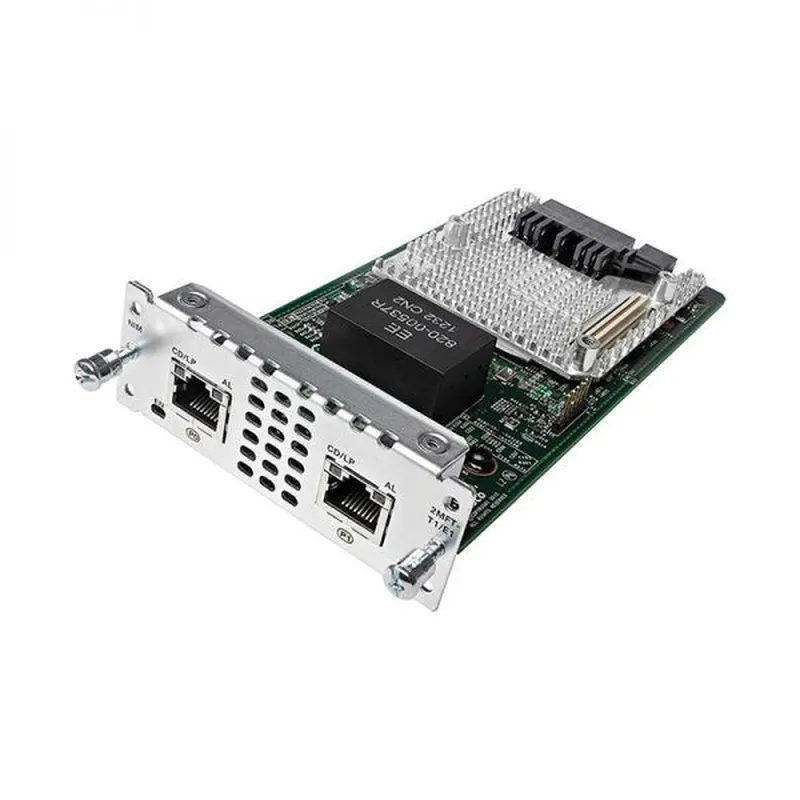

NIM-2MFT-T1/E1

2 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module

Description

NIM-2MFT-T1/E1 Overview


The Cisco® Fourth-Generation 1-, 2-, 4-, and 8-Port T1/E1 Multiflex Trunk

Voice and WAN Network Interface Modules (NIMs) support data and voice

applications on the Cisco 4000 Integrated Services Routers. These cards

combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN

Primary Rate Interface (PRI), dial-access integration, and channelized-data

(CE1T1) functions to provide superior flexibility, versatility, and investment

protection through their many uses. Customers who choose to integrate

data and voice in multiple steps preserve their investment in a T1/E1 WAN

interface.



NIM-2MFT-T1/E1   Specification

Capacity

Serial data (channel-group)

2 per port

E1 unframed G.703

Not supported

Voice channel associated

signaling (CAS) (ds0-group)

24 per port (T1)

31 per port (E1)

1 per timeslot

PRI (pri-group)

1 per port

Drop and insert

(tdm-group)

24 per port (T1)

31 per port (E1)

1 per timeslot

T1 Network Interface

Transmit bit rate

1.544 Mbps ±50 bps/32 ppm

Receive bit rate

1.544 Mbps ±50 bps/32 ppm

Line code

Alternate mark inversion (AMI)

and binary 8-zero substitution (B8ZS)

AMI ones density

Enforced for n x 56-kbps channels

Framing format

D4 (Super Frame [SF]) and Extended Super Frame (ESF)

Output level (line build-out [LBO])

0, -7.5 or -15 dB

Input level

+1 dB0 down to -24 dB0

Data-terminal-equipment (DTE)

interface (WIC mode)

Fractional service

DTE interface (VIC mode)

G.704 or structured

Data-communications-equipment

(DCE) interface

G.704 or structured

E1 Network Interface

Transmit bit rate

2.048 Mbps ±100 bps/50 ppm

Receive bit rate

2.048 Mbps ±100 bps/50 ppm

Data rate

1.984 Mbps (framed mode) per E1 port

Clocking

Internal and loop (recovered from network)

E1 national bits

Fixed (nonconfigurable)

Encoding

High-density bipolar three (HDB3)

DTE interface (WIC mode)

Fractional service

DTE interface (VIC mode)

G.704 or structured

DCE interface

G.704 or structured

Module Specifications

Dimensions (H x W x D)

1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)

Environmental

●  Operating temperature: 0 to 50°C (32 to 122°F)

●  Storage temperature: -20 to +65°C (-4 to 148°F)

●  Relative humidity: 10 to 85% noncondensing operating;

5 to   95% noncondensing, nonoperating

T1 Compliance (partial list)

●  TIA-968-A

●  CS-03

●  Jate

●  ANSI T1.403

E1 Compliance (partial list)

●  TBR4, TBR12, and TBR13

●  ITU-T G.703, G.704, G.823, and I.431

●  S016 (Australia)

Weight

0.42 lb (191g)
