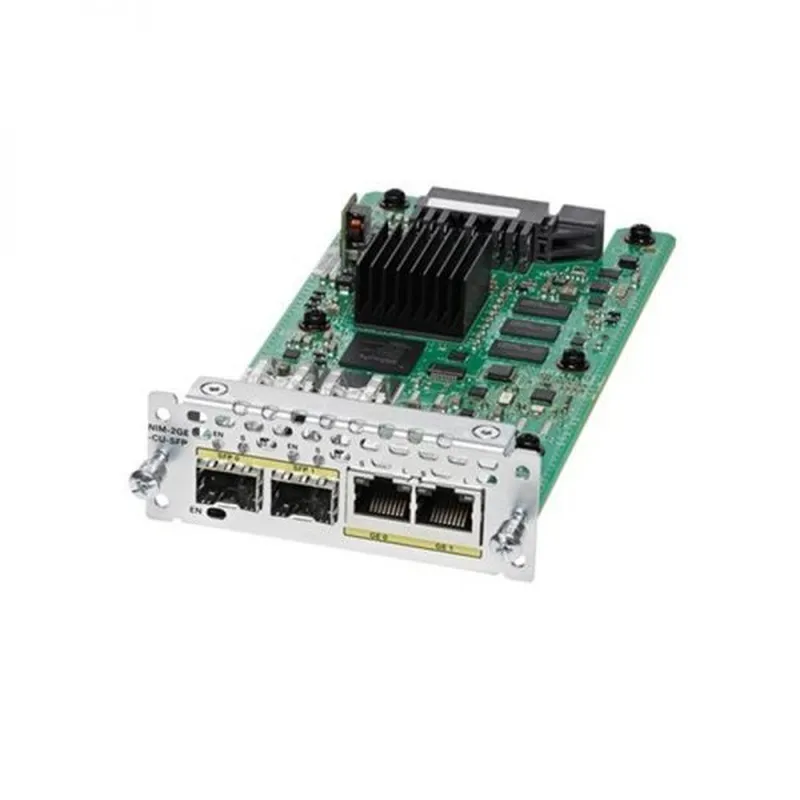

NIM-2GE-CU-SFP Overview
Cisco® Gigabit Ethernet WAN Module NIM-2GE-CU-SFP brings high-density
Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10
Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services
Routers (ISRs). Providing maximum flexibility, the modules accelerate
applications such as Ethernet WAN access, inter-VLAN routing,and high-speed
connectivity to LAN switches and servers.
NIM-2GE-CU-SFP Specifications | |
Product Number | NIM-2GE-CU-SFP |
Product Description | 2-port Gigabit Ethernet, dual-mode GE/SFP, Network Interface Module |
Supported Devices | Cisco 4000 Series Integrated Services Router |
Form Factor | NIM |
Cisco 4000 Series ISR support | All |
Auto-switchover and auto-failover | Yes |
Input packet classification on module | No |
MACsec support (IEEE 802.1AE) | 256-bit |
Dimensions (H x W x D) | 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm) |
Weight | 252 grams |
Operating temperature | 32 to 104°F (0 to 40°C) |
Storage temperature | -38 to 150°F (-40 to 70°C) |
Relative humidity | 5 to 95% |
Operating humidity | 5 to 85% |
Supported Devices
Table 2 shows the supported devices for the NIM-2GE-CU-SFP.
Product number | Description |
CISCO ISR4221/K9 | 35Mbps-75Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM |
CISCO ISR4221-SEC/K9 | 35Mbps-75Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, SEC Bundle with SEC lic |
Cisco ISR4321/K9 | 50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC |
Cisco ISR4331/K9 | 100Mbps-300Mbps system throughtput, 2 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC |
Cisco ISR4351/K9 | 200Mbps-400Mbps system throughtput, 2 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC |
Cisco ISR4431/K9 | 500Mbps-1Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs |
