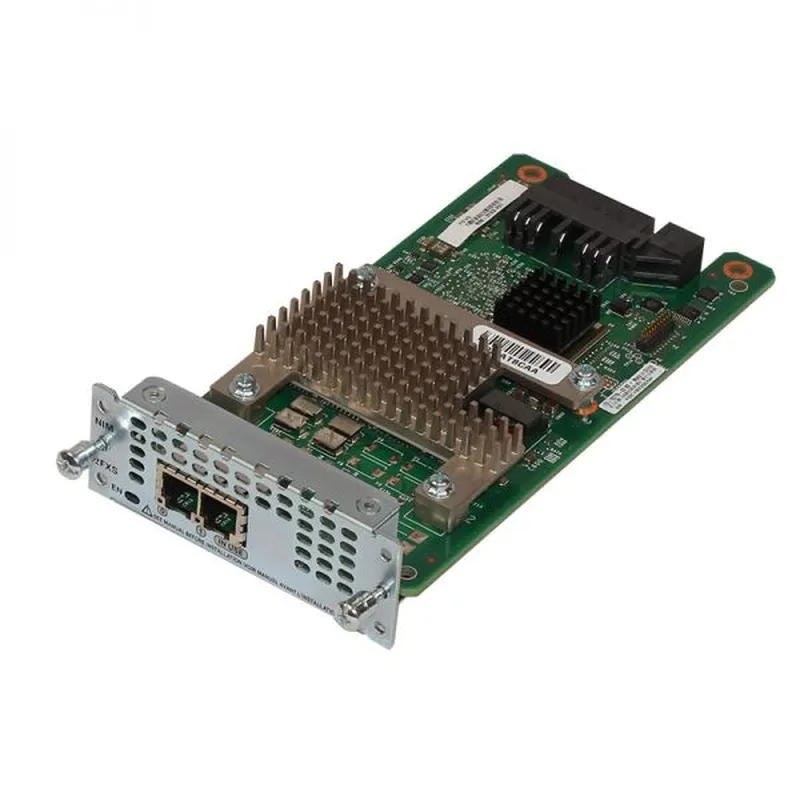

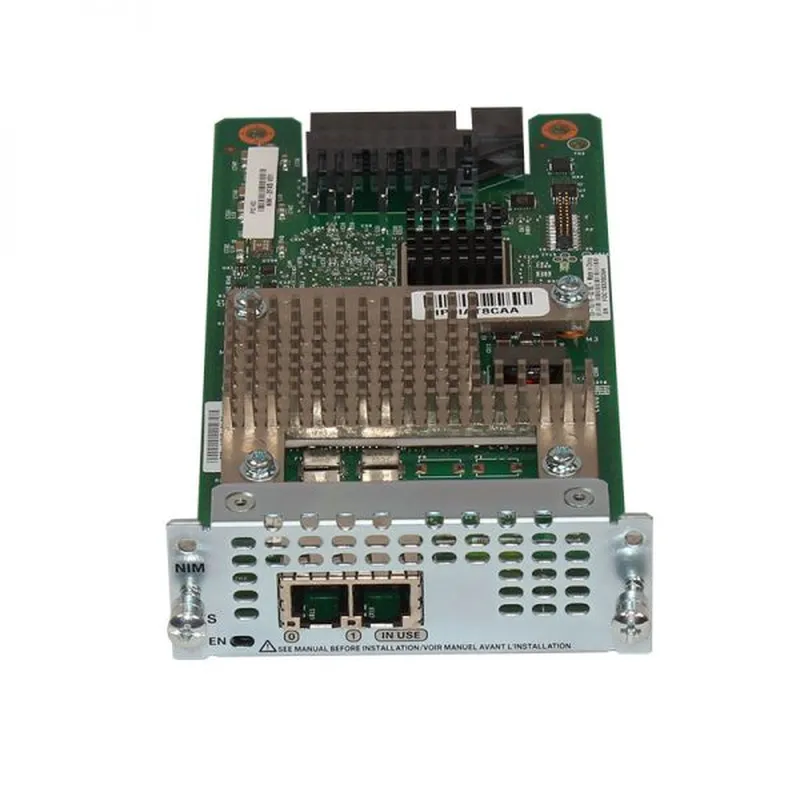

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS Overview

2-Port Network Interface Module - FXS, FXS-E and DID NIM-2FXS is supporting

for the Cisco 4000 ISR Series. The Cisco® 4000 Series Integrated Services

Routers (ISRs) host the Cisco network interface modules (NIMs), which have

evolved from the enhanced high-speed WAN interface card (EHWIC), increasing

port density and module capability. Up to three integrated NIM slots on

the 4000 Series allow for flexible configurations. The NIMs support online

insertion and removal (OIR), reducing the downtime required for new or

replacement modules.

NIM-2FXS Specifications
Product Number	NIM-2FXS
Product Description	2-Port Network Interface Module - FXS, FXS-E and DID
Number of Ports	2
Cisco IOS Release	XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
Weight	0.42 lb (191 g)
Telnet or console	Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface.
Simple Network Management Protocol (SNMP)	● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user ● Standard MIB (MIB II) ● Cisco Integrated DSU/CSU MIB ● RFC 1406 T1 MIB, including Alarm Detection and Reporting
SNMP traps	Generated in response to alarms
