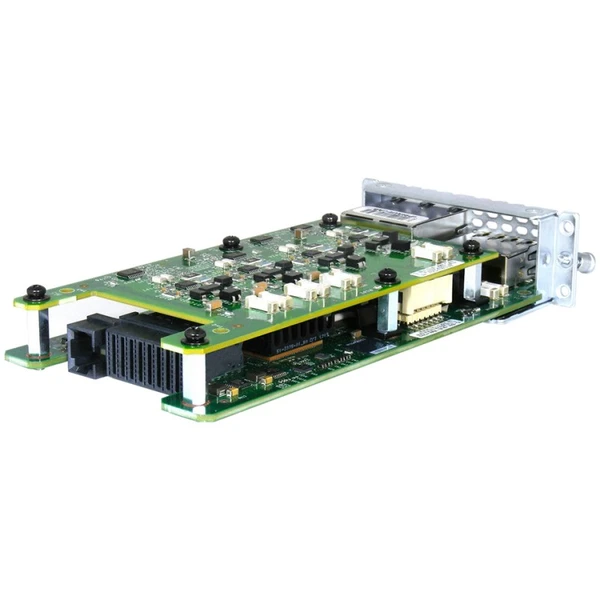

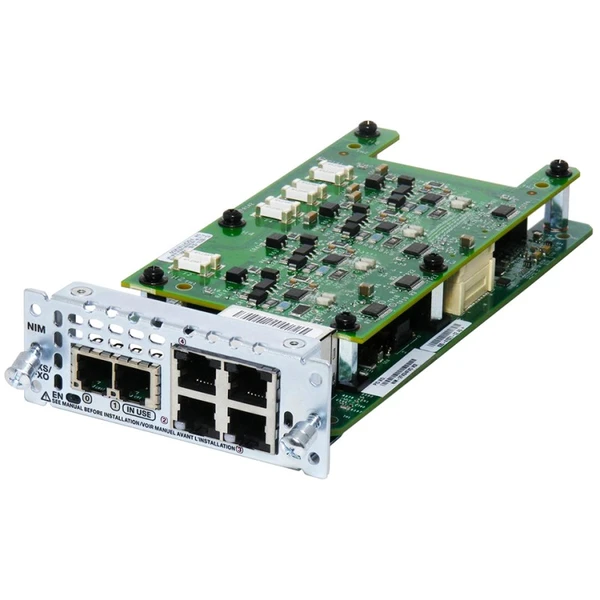

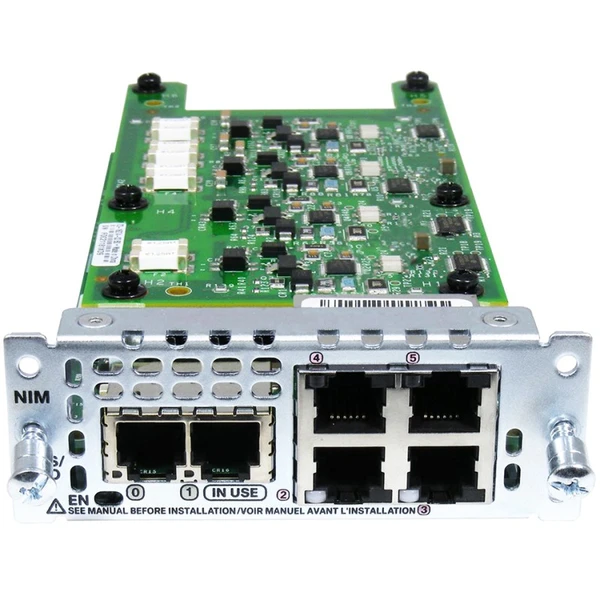

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-2FXS/4FXO Overview

The 2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Modulee

NIM-2FXS/4FXO is supporting for the Cisco 4000 ISR Series.

The Cisco® 4000 Series Integrated Services Routers (ISRs) host the

Cisco network interface modules (NIMs), which have evolved from the

enhanced high-speed WAN interface card (EHWIC), increasing port

density and module capability. Up to three integrated NIM slots on the

4000 Series allow for flexible configurations. The NIMs support online

insertion and removal (OIR), reducing the downtime required for new

or replacement modules.

NIM-2FXS/4FXO Specifications
Product Number	NIM-2FXS/4FXO
Product Description	2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Module
Number of Ports	6
Cisco IOS Release	XE3.14.3, XE3.15.1, XE3.16 and above
Weight	0.52 lb (236 g)
Telnet or console	Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface.
Simple Network Management Protocol (SNMP)	● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user ● Standard MIB (MIB II) ● Cisco Integrated DSU/CSU MIB ● RFC 1406 T1 MIB, including Alarm Detection and Reporting
SNMP traps	Generated in response to alarms

Supported Devices

Table 2 shows the supported devices for the NIM-2FXS/4FXO.

Product number

Description

Cisco ISR4321/K9

50Mbps-100Mbps system throughtput, 2 WAN/LAN ports,

1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS,

Intelligent WAN, OnePK, AVC

Cisco ISR4331/K9

100Mbps-300Mbps system throughtput, 2 WAN/LAN ports,

2 SFP ports, multi-Core CPU,1 service module slots, Security,

Voice, WAAS, Intelligrnt WAN, OnePK, AVC

Cisco ISR4351/K9

200Mbps-400Mbps system throughtput, 2 WAN/LAN ports,

3 SFP ports, multi-Core CPU,2 service module slots,

Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC

Cisco ISR4431/K9

500Mbps-1Gbps system throughtput, 4 WAN/LAN ports,

4 SFP ports, multi-Core CPU, Dual-power, Security, Voice,

WAAS, Intelligrnt WAN, OnePK, AVC, separate control data

and services CPUs

Get More Information

Do you have any question about the Cisco NIM-2FXS/4FXO ?
