NIM-2CE1T1-PRI

Product Number

NIM-2CE1T1-PRI

Product Description

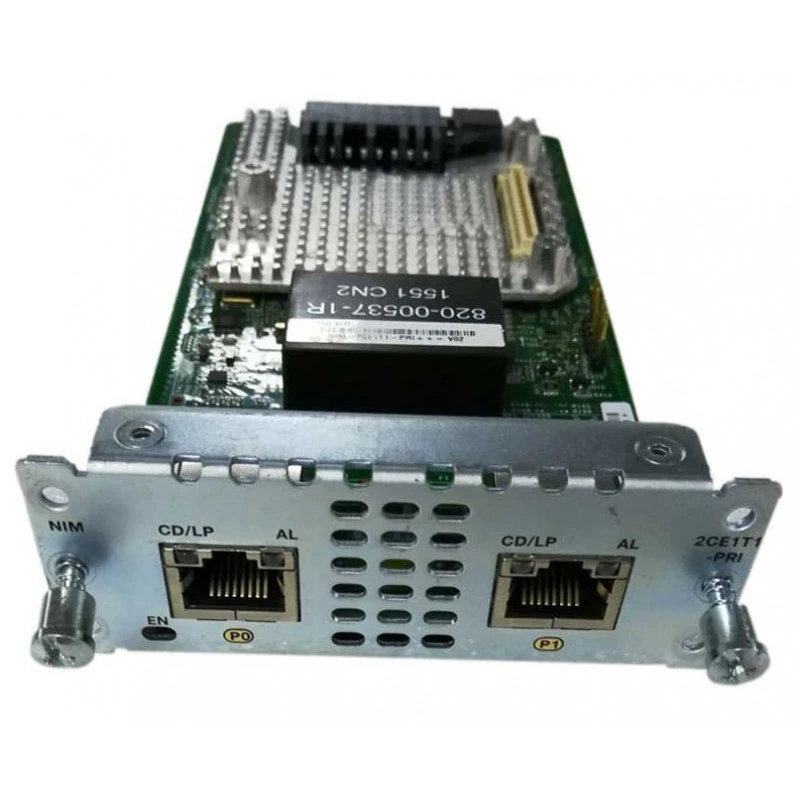

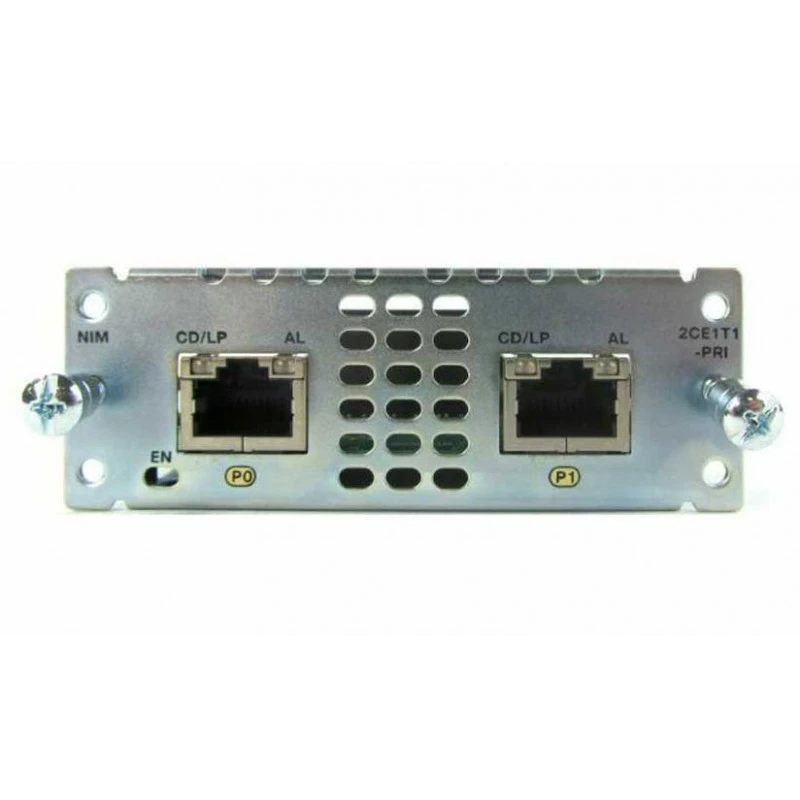

2 port Multi-flex Trunk   Voice/Channelized Data T1/E1 Module

Number of Ports

2

Clear-Channel Data

Yes

MFT Packet Voice

Yes

Unstructured E1

(G.703) Support

Yes

Channelized Data

Yes

Dimensions

(H x W x D)

1.25 x 3.50 x 7.24 in. (3.18 x   8.89 x 18.39 cm)

Weight

0.42 lb (191g)

Environmental

●  Operating   temperature: 0 to 50°C (32 to 122°F)

●  Storage temperature:   -20 to +65°C (-4 to 148°F)

●  Relative humidity: 10   to 85% noncondensing operating;

5 to 95% noncondensing,   nonoperating

T1 Compliance

(partial list)

●  TIA-968-A

●  CS-03

●  Jate

●  ANSI T1.403

E1 Compliance

(partial list)

●  TBR4, TBR12, and   TBR13

●  ITU-T G.703, G.704, G.823,   and I.431

●  S016 (Australia)

Cisco ISR4321/K9

50Mbps-100Mbps system throughtput,

2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security,

Voice, WAAS, Intelligent WAN, OnePK,   AVC

Cisco ISR4331/K9

100Mbps-300Mbps system throughtput, 2 WAN/LAN ports,

2 SFP   ports, multi-Core CPU,1 service module slots, Security,

Voice, WAAS,   Intelligrnt WAN, OnePK, AVC

Cisco ISR4351/K9

200Mbps-400Mbps system throughtput, 2 WAN/LAN ports,

3 SFP   ports, multi-Core CPU,2 service module slots, Security,

Voice, WAAS,   Intelligrnt WAN, OnePK, AVC

Cisco ISR4431/K9

500Mbps-1Gbps system throughtput, 4 WAN/LAN ports,

 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice,

WAAS, Intelligrnt WAN,   OnePK, AVC, separate control data

and services CPUs
