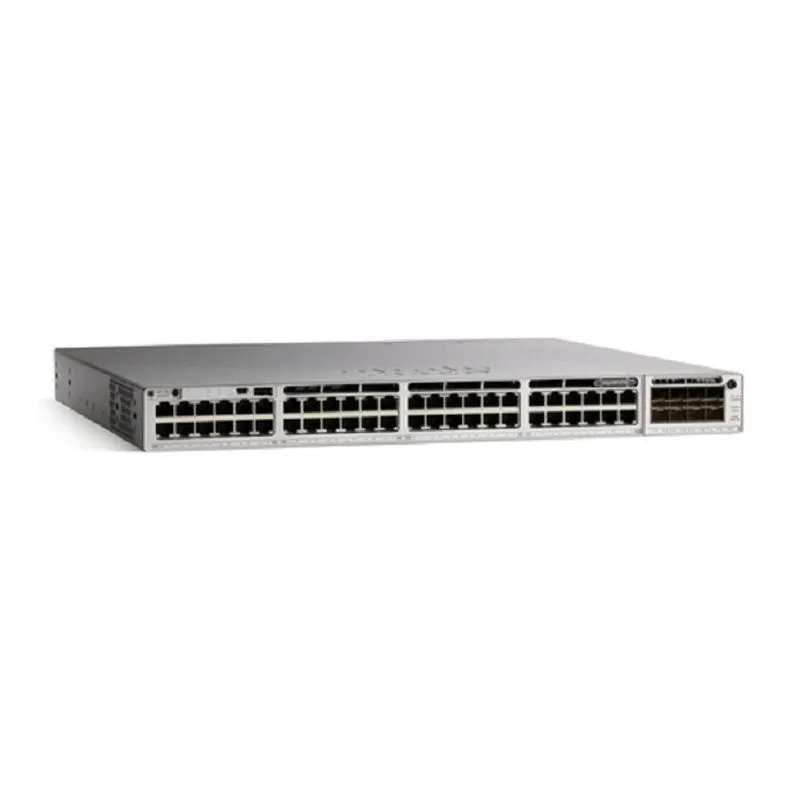

C9300-48UXM-A Overview
The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise
switching platform built for security, IoT, mobility, and cloud. C9300-48UX-A is
48-port 2.5G (12 mGig) UPOE, Network Advantage Switch of 9300 series.
Catalyst 9300 Series are the next generation of the industry’s most widely
deployed switching platform. At 480 Gbps, they are the industry’s highest-density
stacking bandwidth solution with the most flexible uplink architecture. The Catalyst
9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets
new maximums for network scale. These switches are also ready for the future, with
an x86 CPU architecture and more memory, enabling them to host containers and
run third-party applications and scripts natively within the switch.
C9300-48UXM-A Specification
C9300-48UXM-A Specification | |
General | |
Device Type | Switch - 48 ports - L3 - managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | 2.5 Gigabit Ethernet |
Ports | 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) |
Power Over Ethernet (PoE) | UPOE |
PoE Budget | 490 W |
Performance | Switching capacity: 580 Gbps ; Stacking bandwidth: 480 Gbps ; Forwarding rate: 431.54 Mpps |
Capacity | IPv4 routing table entries: 32000 ; IPv6 routing table entries: 16000 ; Flexible NetFlow entries: 64000 ; VLAN IDs: 4000 ; Switched virtual interfaces (SVIs): 2000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Encryption Algorithm | 128-bit AES |
Features | Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
RAM | 8 GB |
Flash Memory | 16 GB |
Status Indicators | Status |
Expansion / Connectivity | |
Interfaces | 36 x 2.5Gbit LAN RJ-45 UPOE ¦ 12 x 1/2.5/5/10GBase-T UPOE : 1 x USB 2.0 |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Power | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Provided | 1100 Watt |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
MTBF | 202,160 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1,EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A,EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317, VCCI V-3/2009 Class A |
| Dimensions | |
Width | 17.5 in |
Depth | 18.5 in |
Height | 1.7 in |
| Miscellaneous | |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ; Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 90% (non-condensing) |
Min Storage Temperature | 158 °F |
Max Storage Temperature | 104 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
The Options
Table 2 shows the recommended hardware.
Model | Description |
9300 Series 4x 1G Network Module | |
9300 Series 4 x Multigigabit Network Module | |
9300 Series 8x 10G Network Module | |
9300 Series 2x 40G Network Module | |
9300 Series 2x 25G Network Module | |
50CM Type 3 Stacking Cable | |
1M Type 3 Stacking Cable | |
3M Type 3 Stacking Cable | |
Cisco pluggable USB3.0 SSD storage |
